2013 Mazak M5N/2000 7.1" Big Bore with 22" Chuck, Chip Conveyor, Tailstock
No longer available
2013 Mazak M5N/2000 7.1" Big Bore with 22" Chuck, Chip Conveyor, Tailstock
$89,500 (USD)
Location:Michigan
Description
7.1" Big Bore Option

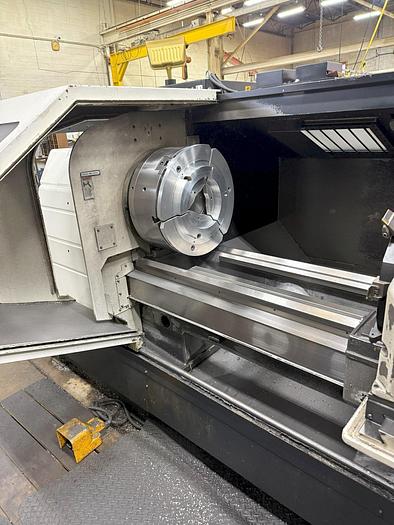

22" 3 Jaw Chuck
Chip Conveyor

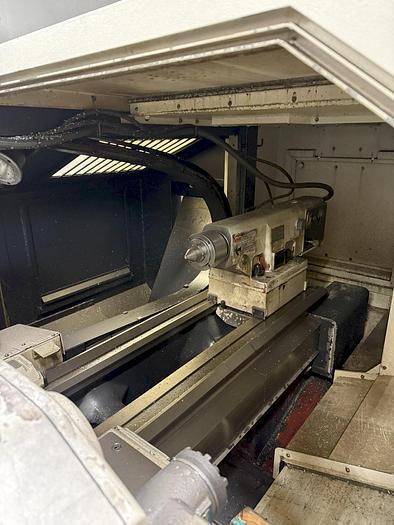

Tailstock
Remote Jog Handle
EIA/ISO Input Function
Additional EIA Functions
User Macro
Re-Threading
Pitch Error Compensation Coolant System with Tank & Pump Color Monitor RS-232C Port for DNC Interface 3.5" Floppy Disk Drive Interface PCM CIA Interface 2 Slots IC Memory Card Interface Background Tool Path Check Multi-Tap Transformer
Specifications
| Manufacturer | Mazak |
| Model | M5N/2000 7.1" Big Bore |
| Year | 2013 |
| Condition | Used |
| Stock Number | 119864 |

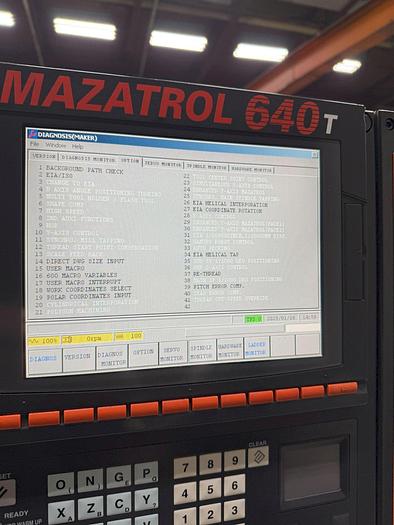

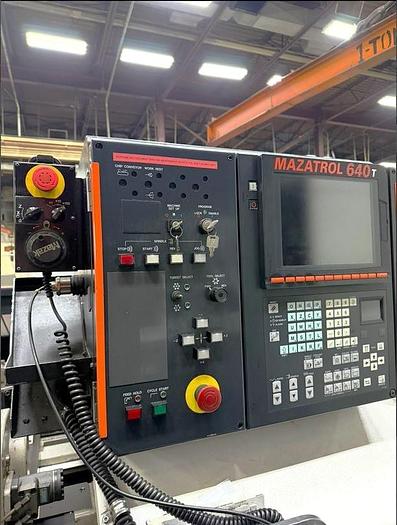

| Control | Mazatrol Fusion 640T |
| Chuck Size | 20" Manual 4 Jaw Chuck |
| Maximum Swing over Bed | 24.02" |
| Maximum Swing Over Cross Slide | 12.99" |
| Maximum Distance Between Centers | 81.89" |
| X-Axis Travel | 22.05" |
| Z-Axis Travel | 80.91" |
| Spindle Nose / Spindle Bore | A2-15" / 7.13" |
| Spindle Speed | 5 - 1,000 RPM |
| Spindle Motor | 30 HP |

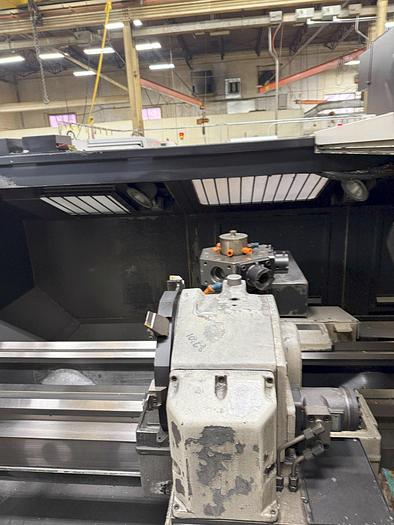

| Number of Turrets | 2 Turrets |
| Number of Turret Positions | 8 Position Turning / 6 Station Boring |
| Rapid Traverse Rates X/Z | 472 IPM / 551 IPM |
| Tailstock Quill Travel / Center | 5.12" / MT #5 |
| Machine Dimensions | 221" x 119" x 89" |
| Machine Weight | 14,800 lbs. |
