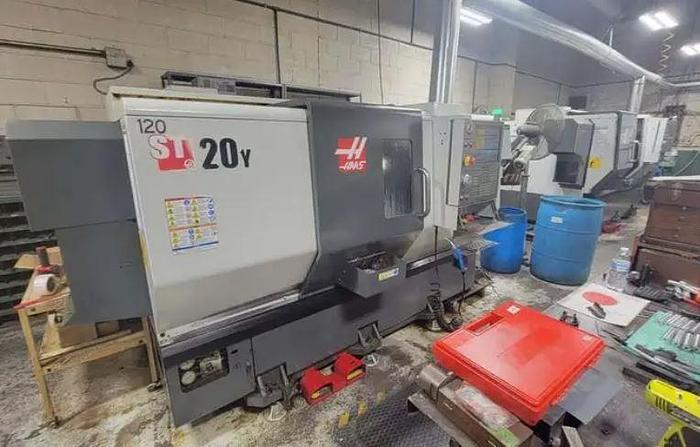

2014 Haas ST-20Y with Y Axis, Live Milling, Parts Catcher, Chip Conveyor
2014 Haas ST-20Y with Y Axis, Live Milling, Parts Catcher, Chip Conveyor
Contact us for price
Location:Pennsylvania
or
Call (863) 439-6066
Description
C Axis Spindle Rotation
Live Milling/Drilling Capability
Y-Axis Capability

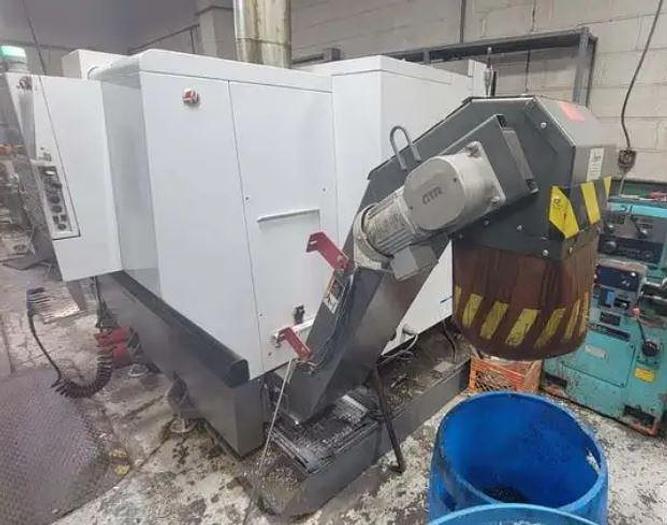

Belt Type Chip Conveyor

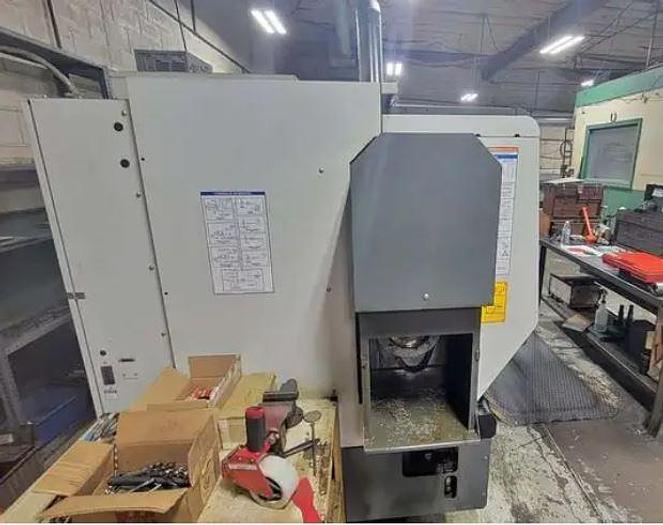

Parts Catcher
Automatic Tool Presetter

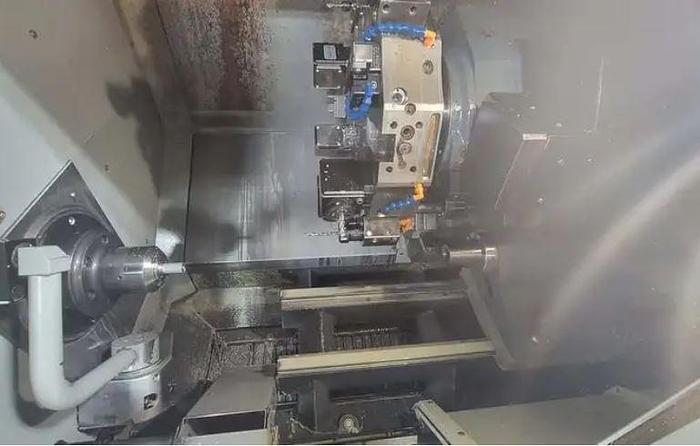

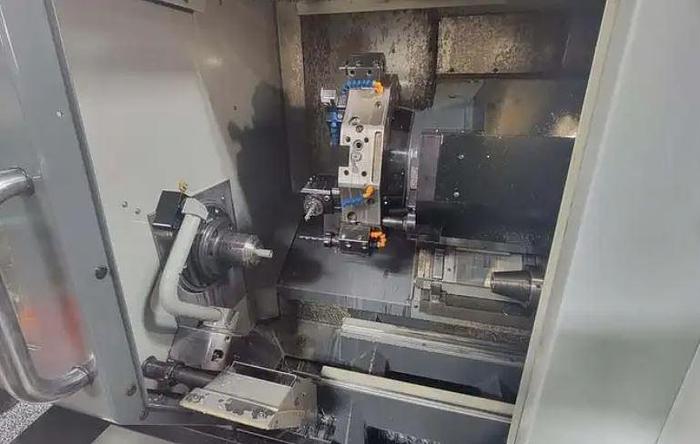

Programmable Tailstock
Rigid Tapping
Spindle Orientation
3J Collet Chuck

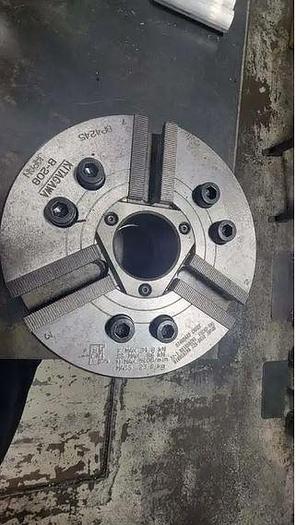

8" 3 Jaw Hydraulic Chuck
1 GB Programming Memory
Memory Lock Key Switch
USB Port Interface
RS 232 Port Interface

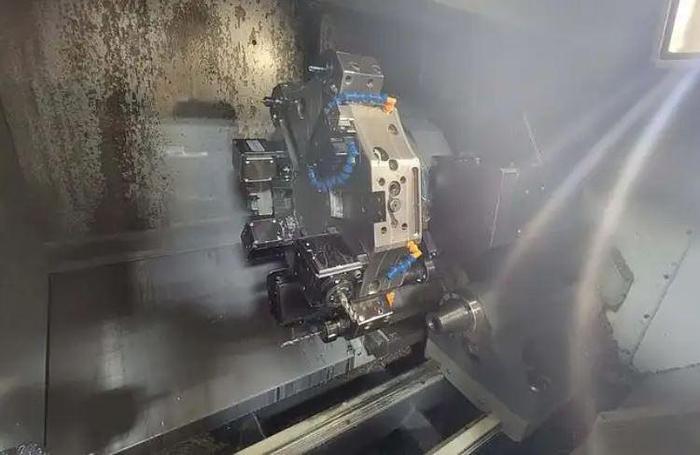

(2) Radial & (4) Axial Live Tool Holders

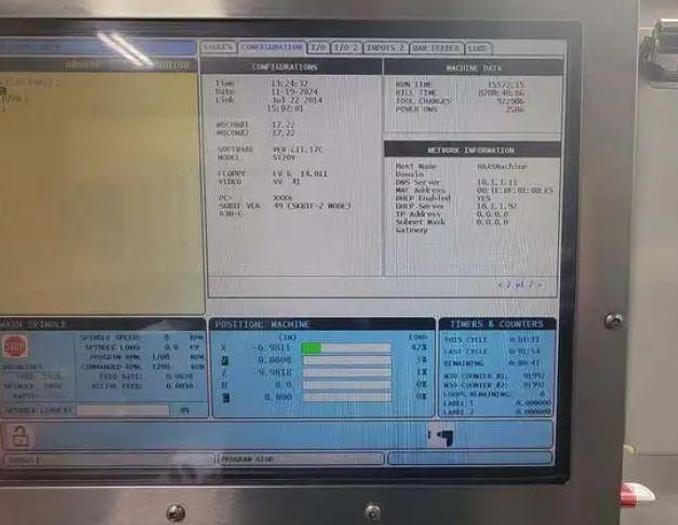

**Run Time Hours 15,572**
**Approximate Spindle Hours 6,000**
Specifications
| Manufacturer | Haas |
| Model | ST-20Y |
| Year | 2014 |
| Condition | Used |
| Stock Number | 119857 |
| Machine Control | Haas CNC Control |
| Chuck Size | 8.3" 3-Jaw Hydraulic / 3 Jaw Collet Chuck |
| Maximum Swing Over Cross Slide | 21" |
| Maximum Machining Diameter | 11.75" |
| Maximum Machining Length | 22.5" |
| X-Axis Travel | 8.4" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 22.5" |
| C Axis Spindle Rotation | 0.001 Degree |
| Spindle Speeds | 4,000 RPM |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-6" / 3.5" / 2.5" |
| Spindle Motor | 20 HP |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 5 HP |
| Number of Turret Positions | 12 Bolt on Style |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 945 IPM |
| Tailstock Taper | MT #4 |
| Machine Dimensions LxWxH | 142" x 90" x 92" |
| Machine Weight | 10,480 lbs. |
