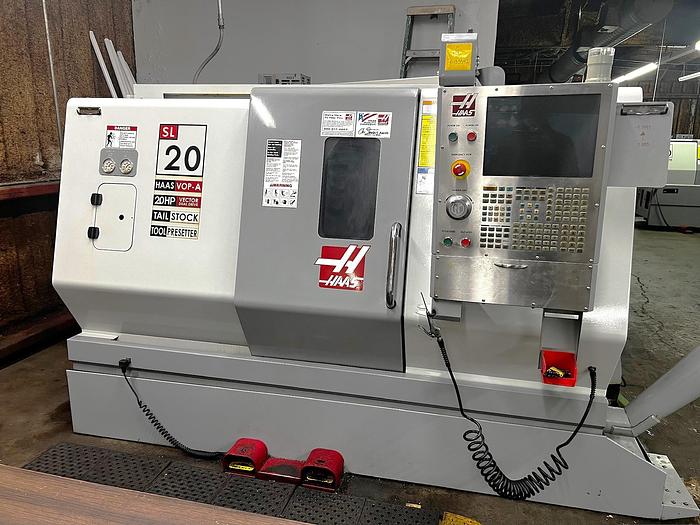

2006 Haas SL-20T with Tailstock, Tool Presetter, Chip Auger and 12 Station Hybrid Style Turret
2006 Haas SL-20T with Tailstock, Tool Presetter, Chip Auger and 12 Station Hybrid Style Turret
Contact us for price
Location:Texas
or
Call (863) 439-6066
Description
Auger Style Chip Conveyor
Tool Presetter

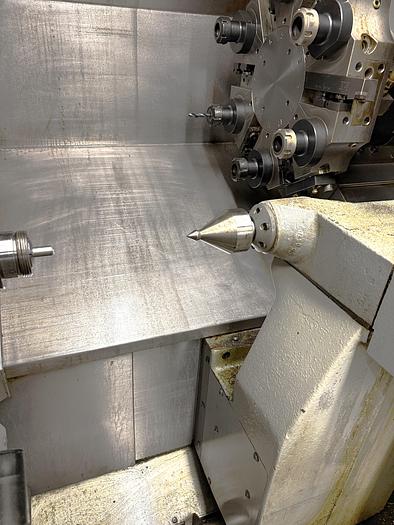

Programmable Hydraulic Tailstock
Collet Chuck
RS232 Port Interface

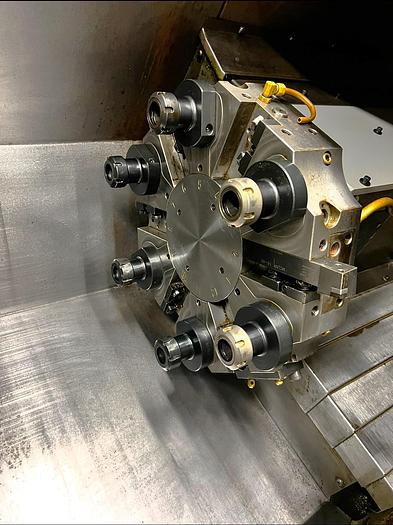

12 Station Hybrid Style Turret
208/230V 3 Phase Electrics
Machine Status Condition Light
Dual Foot Pedals for Chuck and Tailstock
All Available Manuals
Miscellaneous Tool Blocks

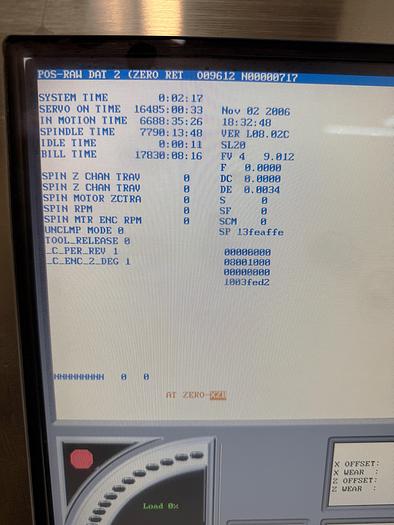

**Servo On Hours 16,485**
**In Motion Hours 6,688**
**Spindle Run Hours 7,790**
Specifications
| Manufacturer | Haas |
| Model | SL-20T |
| Year | 2006 |
| Condition | Used |
| Stock Number | 119842 |
| Machine Control | Haas CNC Control |
| Chuck Size | Collet Chuck |
| Maximum Swing | 20" |
| Maximum Swing Over Cross Slide | 10" |
| Distance Between Centers | 24" |
| X-Axis Travel | 8.45" |
| Z-Axis Travel | 20" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 2.4" / 2" |
| Spindle Speeds | 0 - 4,000 RPM |
| Spindle Motor | 20 HP |
| Spindle Torque | 120 ft/lbs |
| Number of Turret Positions | 12 Station Hybrid Type Turret |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Taper / Travel | MT #4 / 20" |
| Machine Dimensions LxWxH | 126.5"x62"x72" |
| Machine Weight | 9,000 lbs |
