2010 Doosan Puma TT1800SY Twin Spindle/Twin Turret 8 Axis Turn/Mill Lathe
2010 Doosan Puma TT1800SY Twin Spindle/Twin Turret 8 Axis Turn/Mill Lathe
$89,900 (USD)
Location:Illinois
orCall (863) 439-6066
Description
Full C Axis Spindle Rotation - Both Spindles
Live Milling/Drilling Capability - Both Turrets Y Axis Capability on Upper Turret

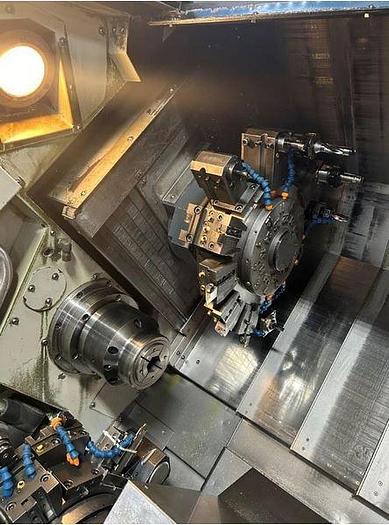

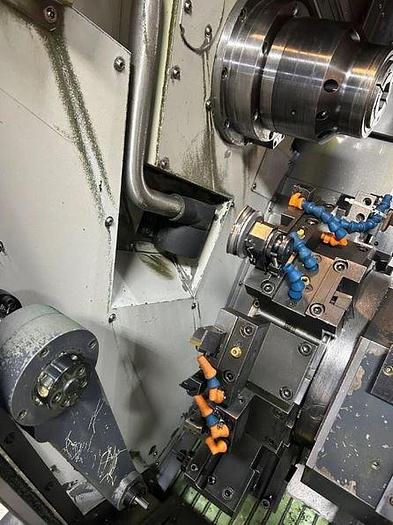

Twin Turret Design with Upper and Lower Turrets

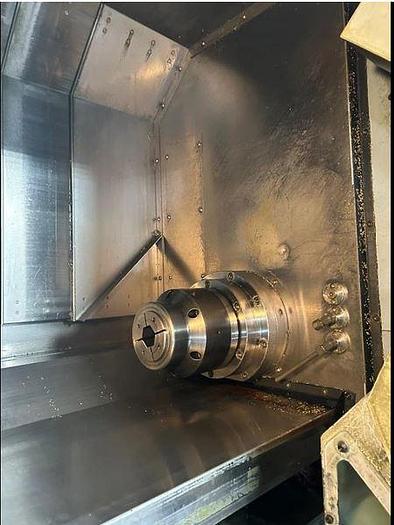

Dual Spindle Design
(2) 8" 3 Jaw Hydraulic Chucks
Tool Presetter
Parts Catcher
Chip Conveyor
Ethernet Interface
PCMCIA Card Interface RS 232 Port Interface
Boxed Ways
Coolant Tank with Pump All Available Manuals
(2) Live Tool Holders - (1) Axial and (1) Radial
(6) OD Type Tool Holders
(3) ID Type Tool Holders
**Cutting Hours 12,253**
Specifications
| Manufacturer | Doosan |
| Model | Puma TT1800SY |
| Year | 2010 |
| Condition | Used |
| Stock Number | 119839 |

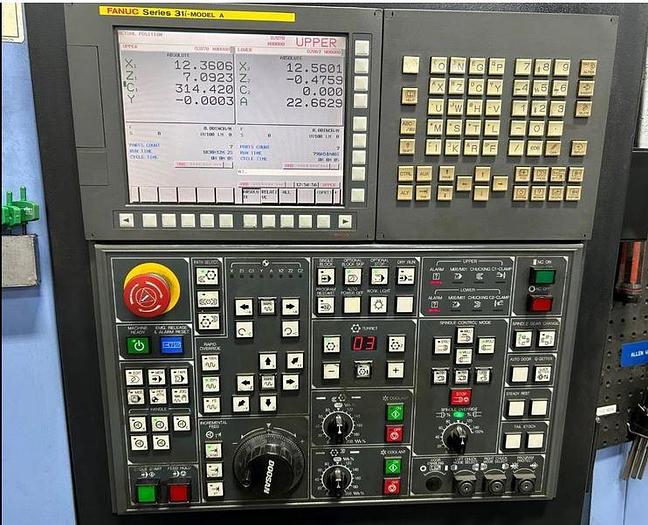

| Control | Fanuc 31i-Model A Control |
| Chuck Size | 8" Hydraulic Chuck on both Spindles |
| Maximum Swing over Bed | 9.05" |
| Maximum Cutting Diameter | 9.05" |
| Maximum Machining Length | 9.1" |
| Distance Between Spindles | 38.582" |
| Maximum Bar Capacity | 2.625" |
| X1-Axis Travel / X2-Axis Travel | 6.5" / 7.5" |
| Y-Axis Travel | 3.93" |
| Z1-Axis Travel / Z2-Axis Travel | 31.5" / 28.3" |
| C Axis Spindle Rotation | 0.001 Degrees - both Spindles |
| A-Axis Travel - Subspindle | 30.3" |
| Spindle Nose / Spindle Bore | A2-6" / 3.0" - both Spindles |
| Main & Subspindle Speeds | 5,000 RPM |
| Spindle Motor - Both Spindles | 30 HP |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 7.5 HP |
| Number of Turret Positions | 12 Station Turret - Each |
| Rapid Traverse Rates X / Y / Z | 787 IPM / 295 IPM / 984 IPM |
| Machine Dimensions | 154" x 82" x 98" |
| Machine Weight | 17,196 lbs. |
