1999 Haas VF-6/40 with Auger, Pcool, Quick Code, 2 Speed Gearbox
No longer available
1999 Haas VF-6/40 with Auger, Pcool, Quick Code, 2 Speed Gearbox
$12,500 (USD)
Location:New York, NY
Description

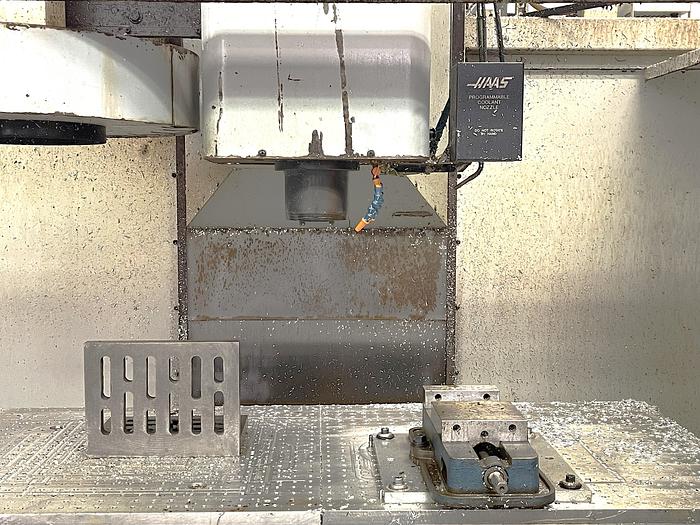

Programmable Coolant Nozzle
Visual Quick Code Programming
Auger Style Chip Conveyor
Rigid Tapping
2 Speed Gearbox
1 MB Programming Memory
Remote Jog Handle

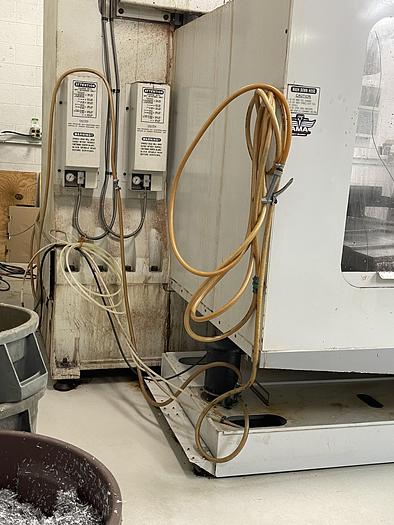

Coolant System with Tank & Pump
Brushless Servos
3.5" Floppy Disk Interface
RS 232 Port Interface
208/230V 3-Phase Electrics
All Available Manuals

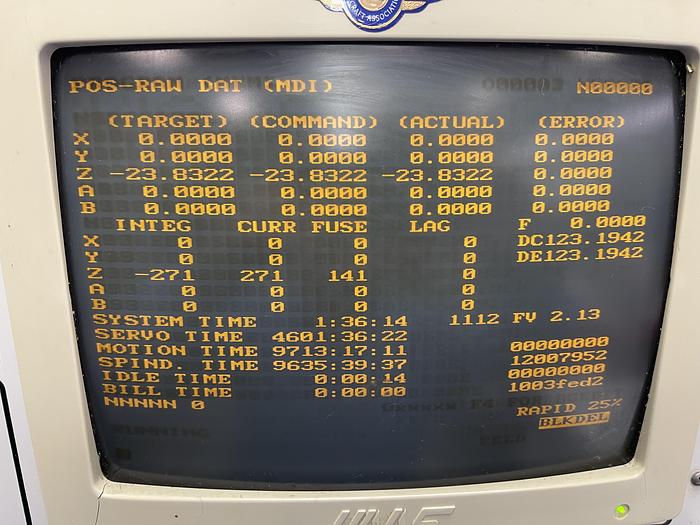

**Motion Hours 9,713**
**Spindle Run Hours 9,635**
Specifications
| Manufacturer | Haas |
| Model | VF-6/40 |
| Year | 1999 |
| Condition | Used |
| Stock Number | 119822 |
| Machine Control | Haas 32 BIT |
| Table size | 64"x28" |
| Maximum Table Load | 4,000 lbs |
| X-Axis Travel | 64" |
| Y-Axis Travel | 32" |
| Z-Axis Travel | 30" |
| Spindle Taper | CAT 40 |
| Spindle Motor | 20 HP |
| Spindle Speeds | 7,500 RPM |
| Spindle Torque | 450 ft lbs |
| Distance Spindle Nose to Table Top | 5" - 35" |
| Tool Magazine Capacity | 20 Station Umbrella Style ATC |
| Rapid Traverse Rates X, Y / Z | 540 ipm, 540 ipm / 600 ipm |
| Machine Dimensions LxWxH | 156"x123"x129" |
| Machine Weight | 21,000 lbs |
