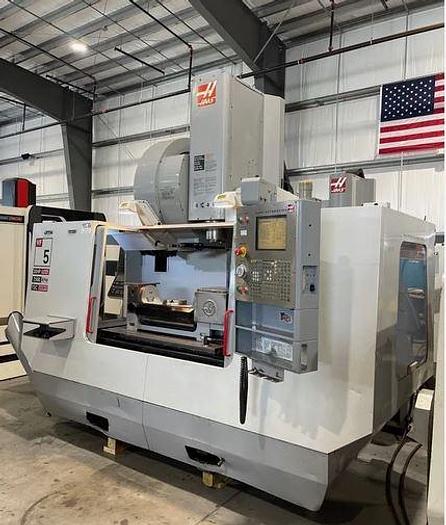

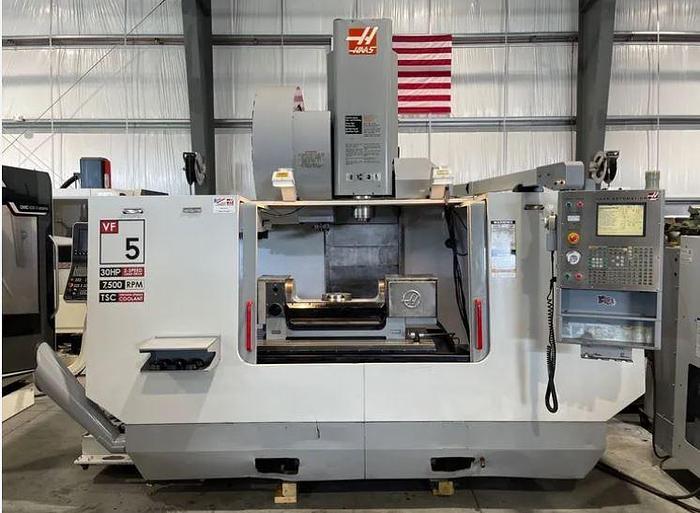

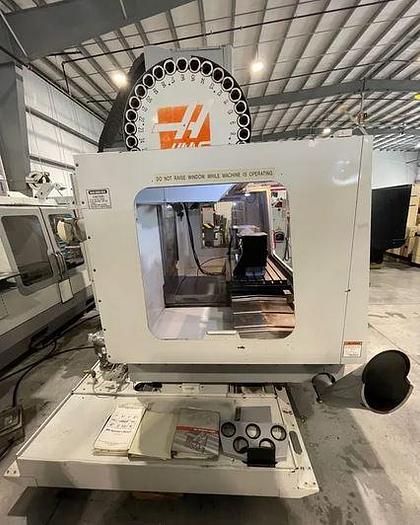

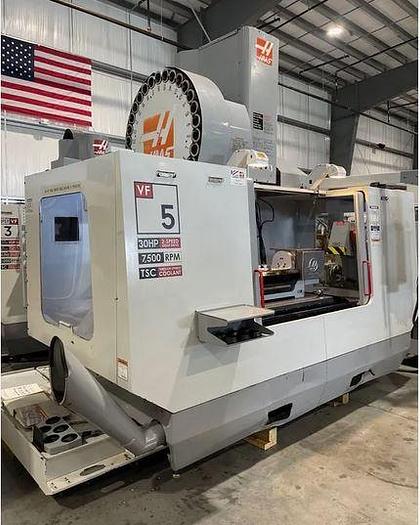

2005 Haas VF5/50 VMC with 50 Taper, Haas 4/5th Axis Trunnion Table, Coolant Thru Spindle, Probing
No longer available
2005 Haas VF5/50 VMC with 50 Taper, Haas 4/5th Axis Trunnion Table, Coolant Thru Spindle, Probing
$54,500 (USD)
Location:Florida
Description
4th and 5th Axis Pre-Wired

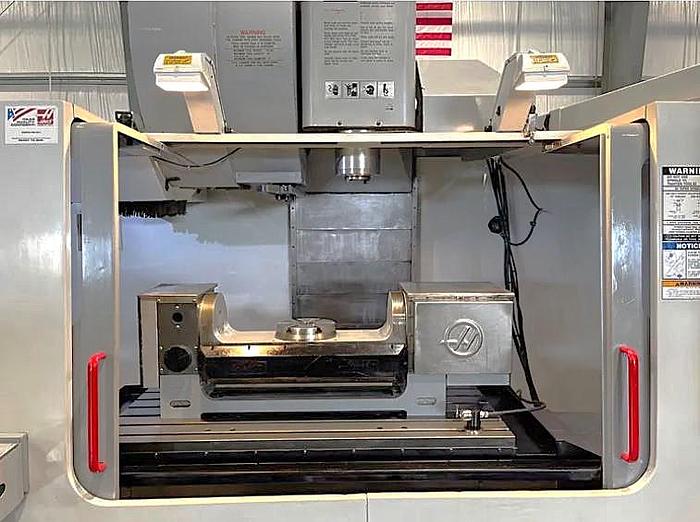

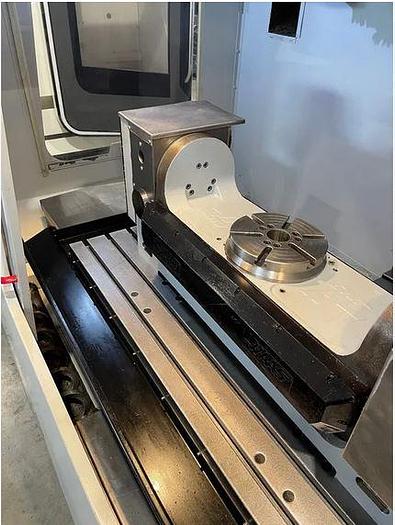

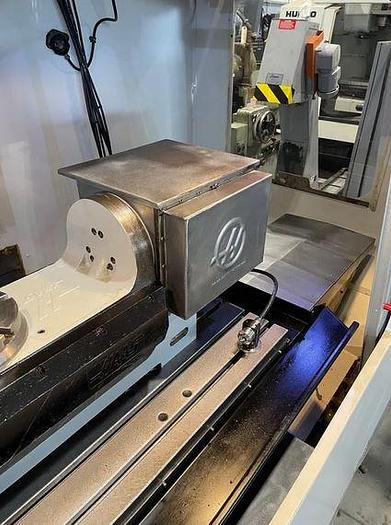

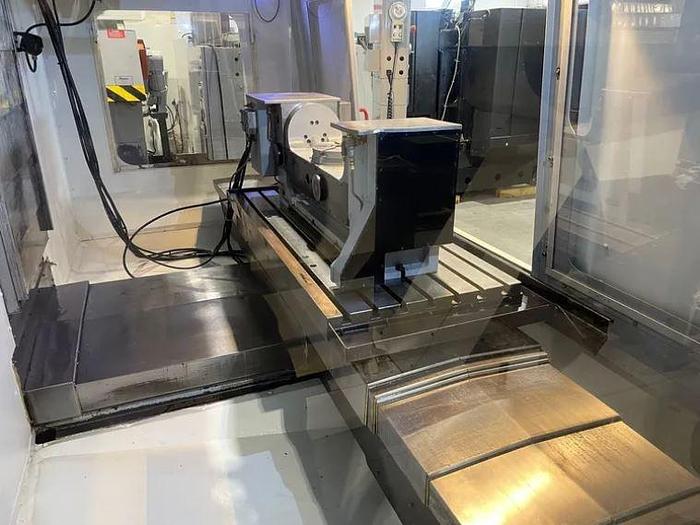

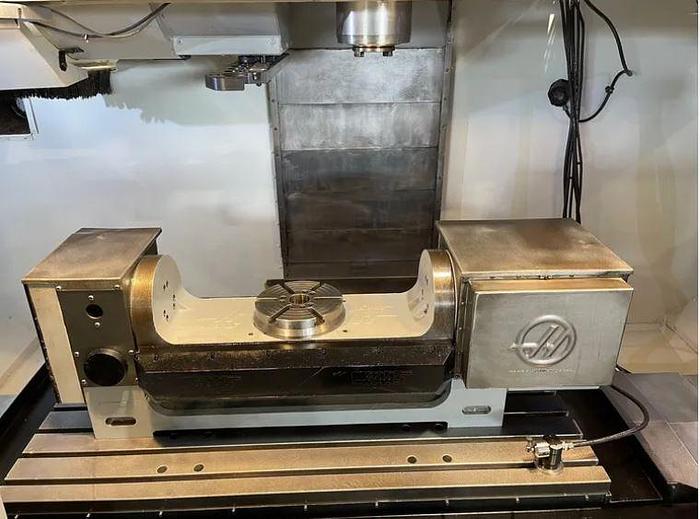

Haas STR-210H Trunnion Style Rotary Table
30 Station Side Mounted Tool Changer
Thru the Spindle Coolant
Haas Wireless Probing Package (Includes table tool probe / Reading only for part probing)
2-Speed Gearbox
Auxiliary Coolant Filter System
Auger Style Chip Conveyor
Rigid Tapping
Spindle Orientation
Coordinate Rotation & Scaling
Visual Quick Code Programming
User Definable Macros
High Intensity Lighting
Remote Jog Handle
USB Port Interface
Floppy Disk Drive Interface
Wired 230V Electrics
**Motion Hours 17,889**
**Spindle Hours 17,402**
Specifications
| Manufacturer | Haas |
| Model | VF5/50 |
| Year | 2005 |
| Condition | Used |
| Stock Number | 119804 |
| Table Size | 52"x23" |
| Maximum Table Load | 4,000 lbs |
| X-Axis Travel | 50" |
| Y-Axis Travel | 26" |
| Z-Axis Travel | 25" |
| Spindle Taper | CAT 50 |
| Spindle Speed | 7,500 RPM Geared Head |
| Spindle Motor | 30 HP |
| Spindle Torque | 450 ft./lbs |
| Distance Spindle Nose to Table Top | 7" to 32" |
| Tool Magazine Capacity | 30 Station Side Mounted Tool Changer |
| Maximum Tool Diameter / Length / Weight | 4" / 16" / 30 lbs. |
| Rapid Traverse Rates | 710 IPM |
| Cutting Feedrates | 500 IPM |
| Machine Dimensions LxWxH | 139"x99"x109" |
| Machine Weight | 16,500 lbs |
