2021 Haas VF-2SS with Robot Package
2021 Haas VF-2SS with Robot Package
Contact us for price
Location:United States
Description
Remote Jog Handle w/ Touchscreen Display
Ethernet Interface
Haas Connect: Remote Monitoring
Media Display
Rigid Tapping
WiFi Connection
Window Air Blast
Auto Door
Automatic Coolant Refill
Coolant Mist Condenser
Visual Part Programming System
User Definable Macros
Spindle Orientation
Coordinate Rotation & Scaling
CT-Style Tool Changer Grippers
Coolant Thru the Spindle
4th Axis Drive & Wiring
WIPS Wireless Intuitive Probing System
Chip Auger
Coolant Maintenance Package
55-Gallon Coolant Tank
High-Intensity Lighting
Programmable Coolant Nozzle
Programmable Air
WiFi Camera
Dynamic Work Offsets & Tool Center Point Control
Second Home Position
High-Speed Machining
Low-Volt
100mm Air Vise
Auxillary Coolant Filter
Chip Tray Filter Kit
20-Piece CAT 40 Tool Holder Kit TSC
10-Piece CAT 40 ER Collet Chuck Tool Holder Kit

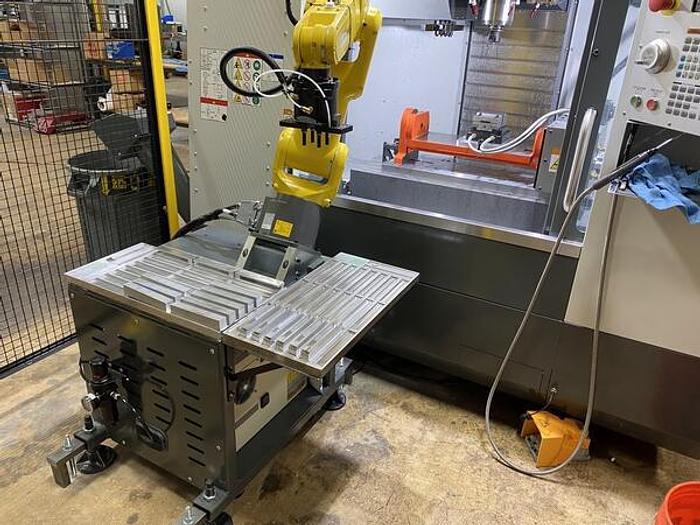

ROBOT Package-1
Direct Control by CNC Mill

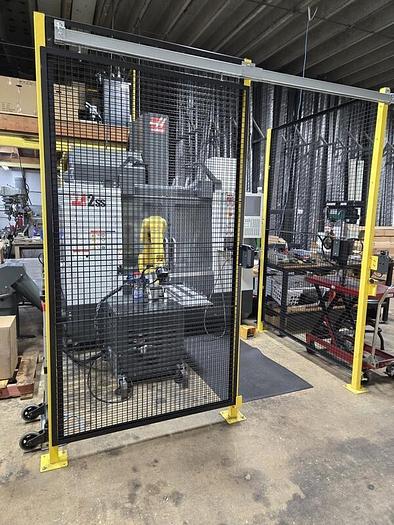

Safety Guard Fencing

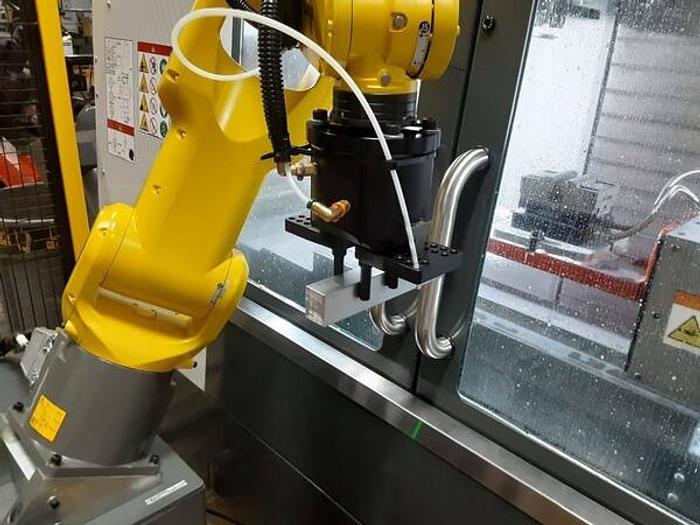

Single Gripper-1
Dual Gripper-1

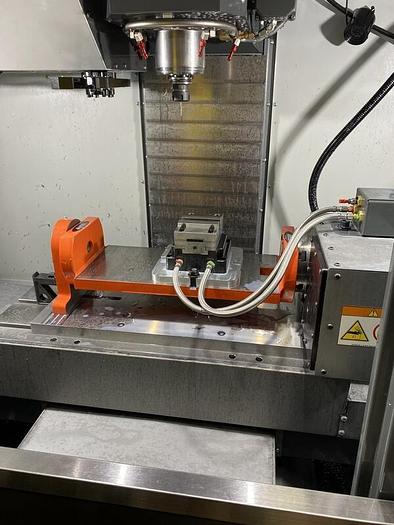

HRT-160SS Rotary Table
6" Manual 3-Jaw Chuck
Total Investment $162,316
Specifications
| Manufacturer | Haas |
| Model | VF-2SS with Robot Package |
| Year | 2021 |
| Condition | Used |
| Stock Number | 119801 |
| Table Size | 36" x 14" |
| Maximum Table Load | 1,500 lbs. |
| Spindle Nose to Table Top | 4" - 24" |
| X Axis Travel | 30" |
| Y Axis Travel | 16" |
| Z Axis Travel | 20" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 12,000 RPM |
| Spindle Motor | 30 HP - Direct Drive |
| Number of Tool Positions | 30 Station Side Mounted ATC |
| Rapid Traverse Rates (X, Y, Z) | 1400 IPM |
| Cutting Feedrates | 0.1 - 833 IPM |
| Machine Dimensions | 88" x 93" x 106" |
| Machine Weight | 9,000 lbs. |
