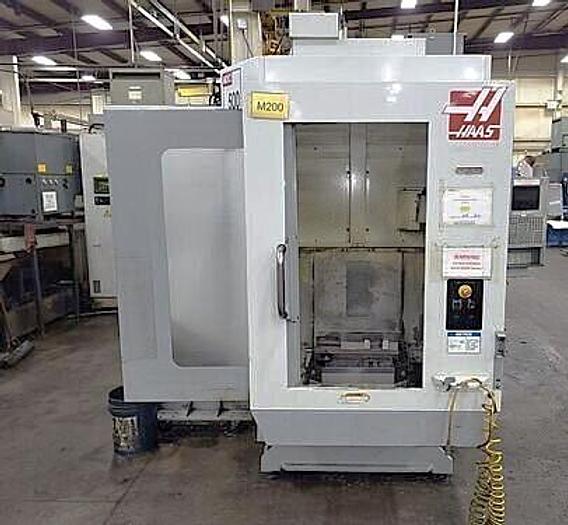

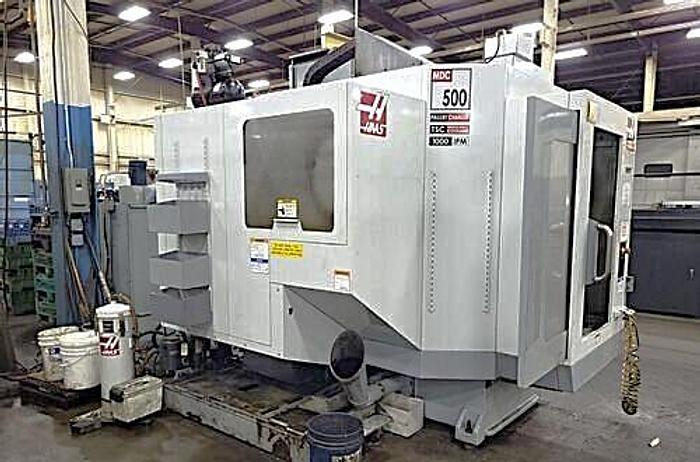

2006 Haas MDC-500 Mill Drill Center with 2 Pallet Changer, Coolant Through Spindle, Chip Auger
2006 Haas MDC-500 Mill Drill Center with 2 Pallet Changer, Coolant Through Spindle, Chip Auger
$27,500 (USD)
Location:Illinois
or
Call (863) 439-6066
Description

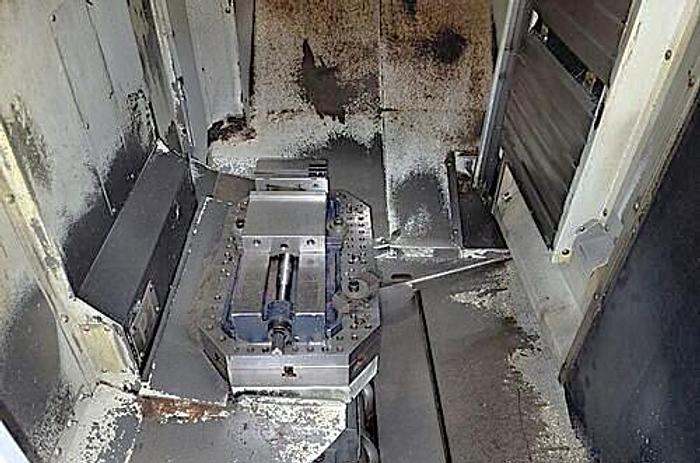

2 Pallet 180 Degree Type Pallet Changer

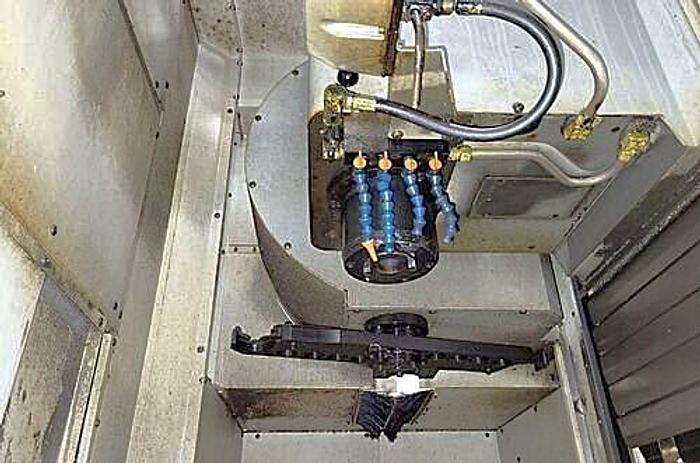

Coolant Thru the Spindle Auxiliary Coolant Pump
Auger Style Chip Conveyor Rigid Tapping 24 Station Side-Mounted Tool Changer

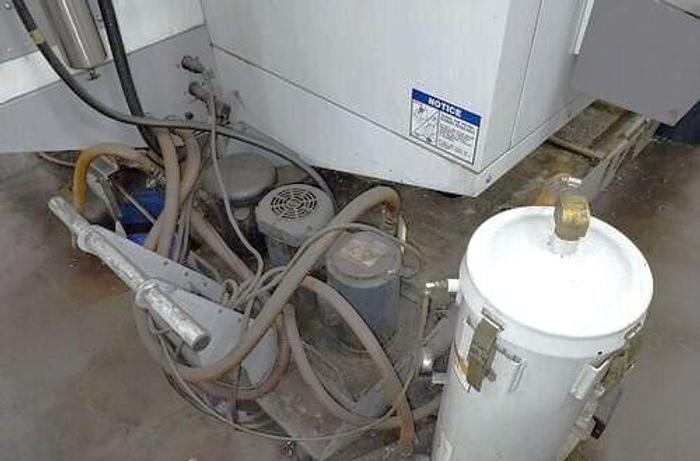

Flood Coolant System Coolant System with Tank & Pump Brushless Servos on All Axes
RS 232 Port Interface All Available Manuals

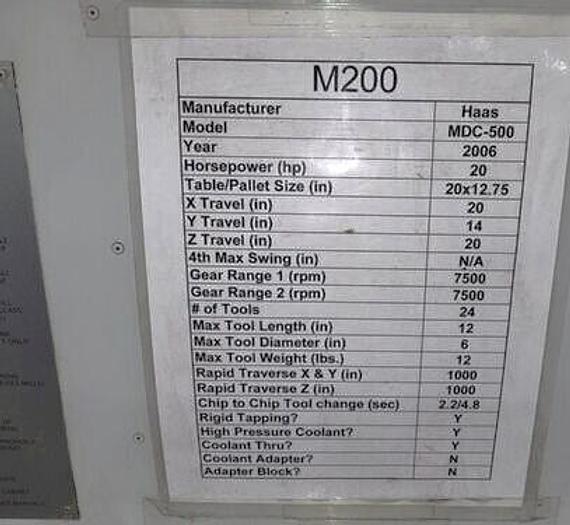

Specifications
| Manufacturer | Haas |
| Model | MDC-500 Mill Drill Center |
| Year | 2006 |
| Condition | Used |
| Stock Number | 119799 |

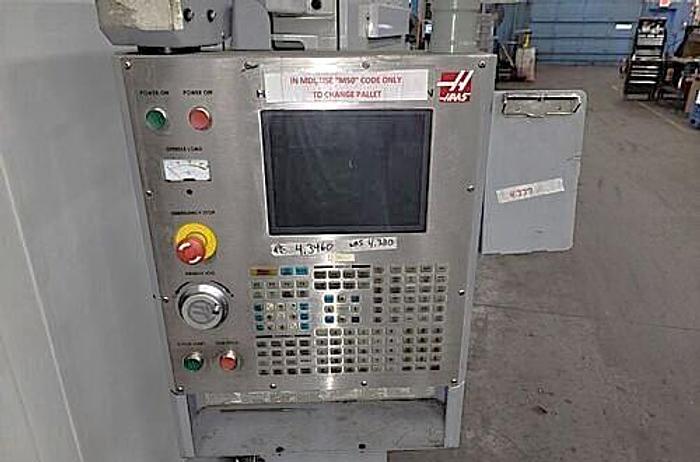

| Control | Haas CNC Control |
| Table Size | 20"x12.75" (2) Pallets |
| Maximum Table Load | 700 lbs |
| X-Axis Travel | 20" |
| Y-Axis Travel | 14" |
| Z-Axis Travel | 20" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 7,500 RPM |
| Spindle Motor | 20 HP |
| Spindle Torque | 75 ft lb @ 1,400 rpm |

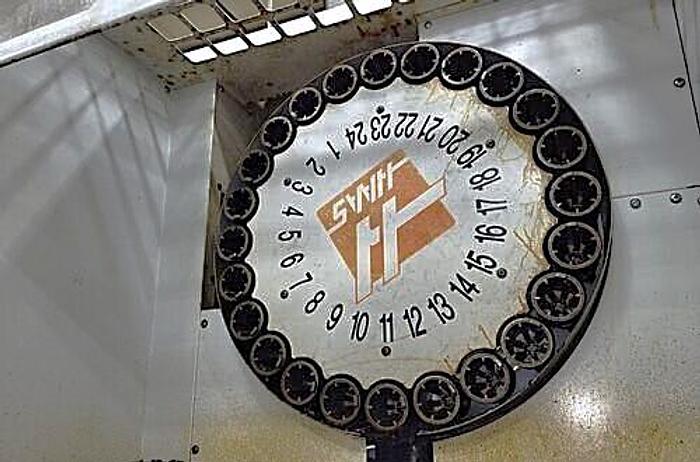

| Tool Magazine Capacity | 24+1 Station Side Mounted ATC |
| Maximum Tool Diameter / Length / Weight | 3 "/ NA / 12 lbs |
| Tool Change Time Chip to Chip | 4.8 Seconds |
| Rapid Traverse Rates | 1,000 IPM |
| Machine Dimensions LxWxH | 143"x134"x113" |
| Machine Weight | 14,000 lbs |
