2006 Romi M-17
No longer available
2006 Romi M-17
$26,500 (USD)
Location:Idaho
Description
10" 3-Jaw Manual Chuck

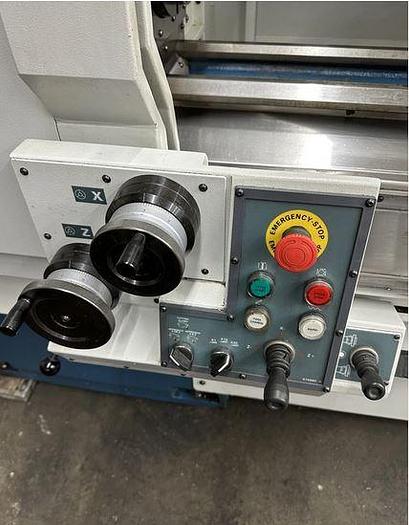

Manual Hand Wheels

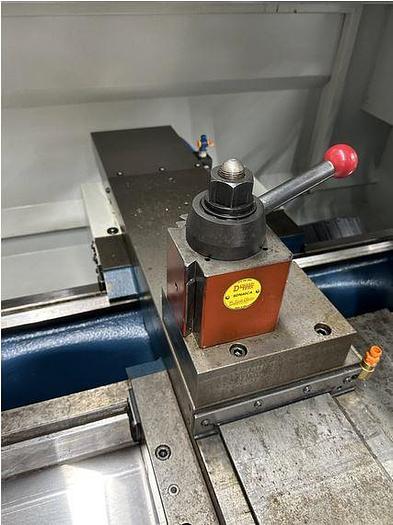

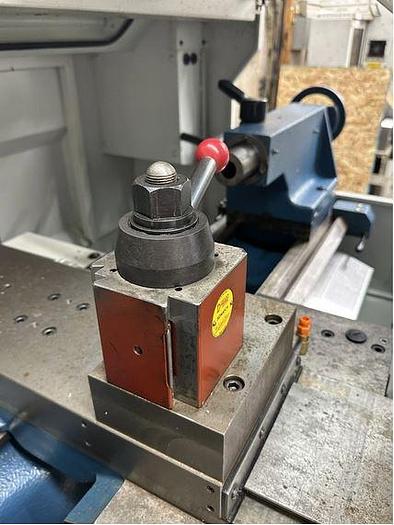

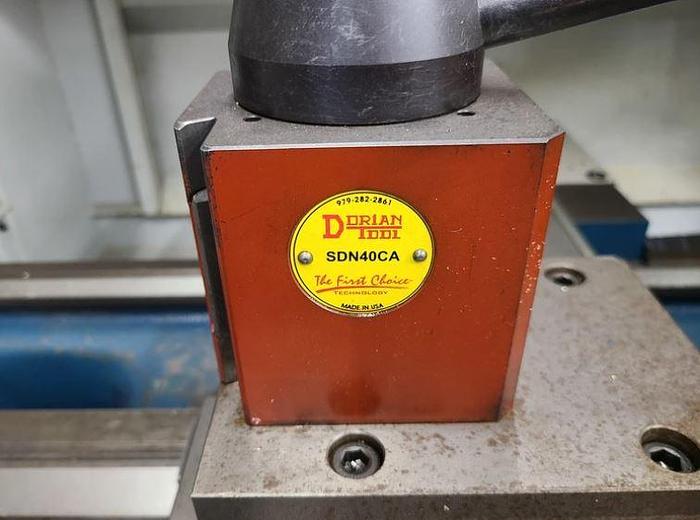

Dorian Model SDN40CA Tool Post

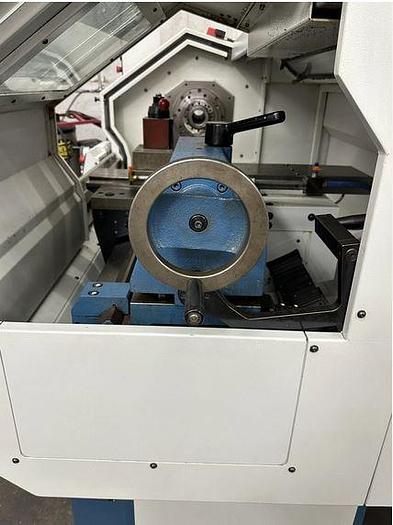

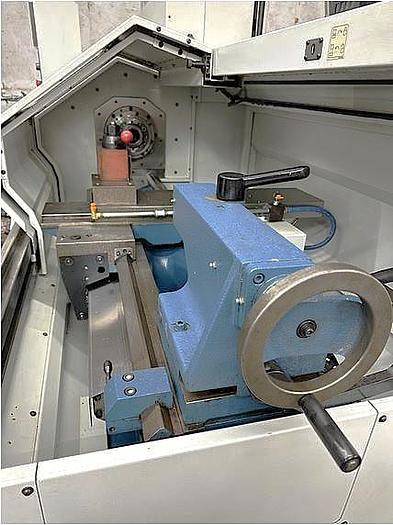

Tailstock
Coolant System
3.5" Floppy Disk Interface
RS 232 Port Interface

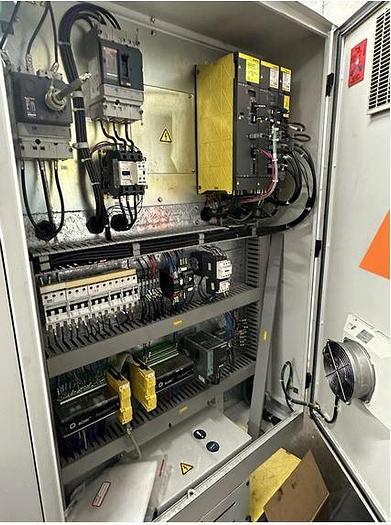

Wired 250V Electrics

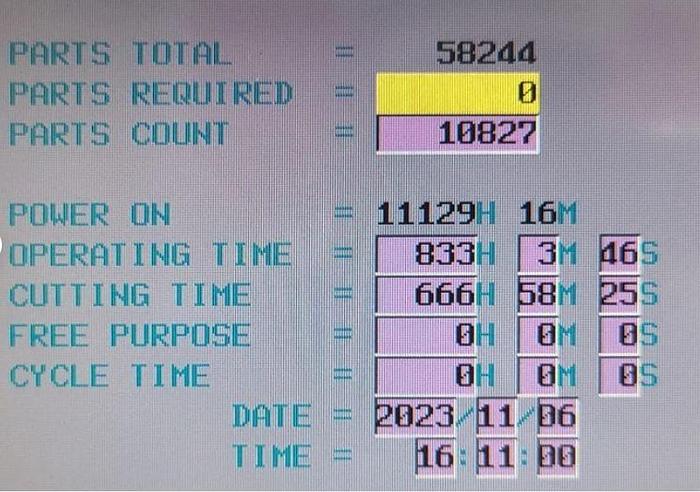

**833 Operating Hours**
**666 Cutting Hours**
Specifications
| Manufacturer | Romi |
| Model | M-17 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 119798 |

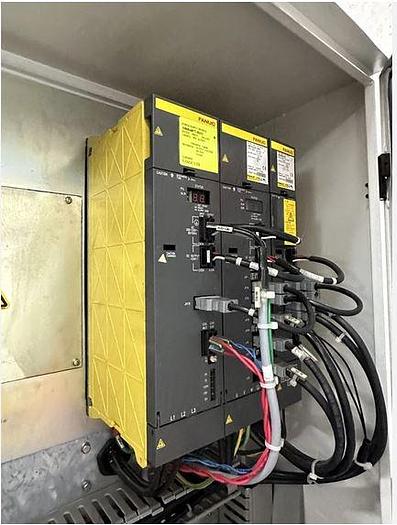

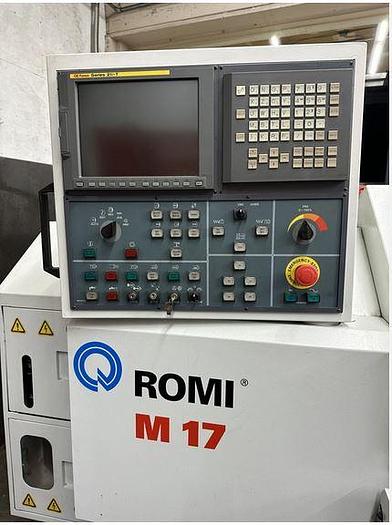

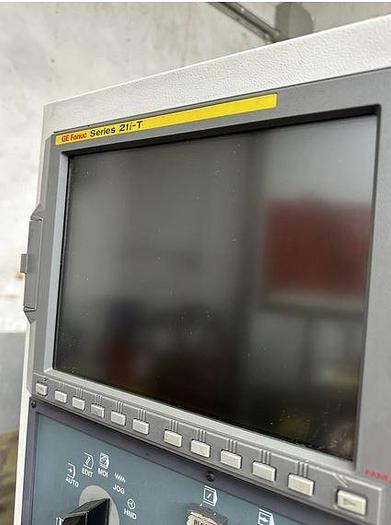

| Machine Control | Fanuc 21i-T |
| Chuck Size | 10" 3 Jaw Chuck |
| Maximum Swing | 16.93" |
| Maximum Swing Over Cross Slide | 8.03" |
| Distance Between Centers | 43.46" |
| X-Axis Travel | 8.66" |
| Z-Axis Travel | 42.85" |
| Number of Tool Positions | Tool Post |

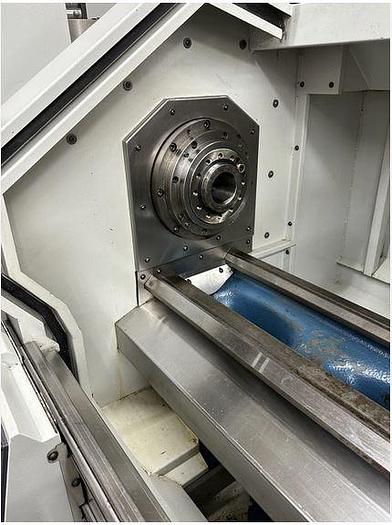

| Spindle Nose / Bore / Bar Capacity | A2-6" / 2.09" / 2" |
| Spindle Speed | 4 - 4,000 RPM |
| Spindle Motor | 10 HP |
| Rapid Traverse Rates X / Z | 394 IPM / 295 IPM |
| Tailstock Quill Travel / Taper | 4.72" / No. 4 MT |
| Machine Dimensions LxWxH | 120" x 54" x 80" |
| Machine Weight | 6,185 lbs |
