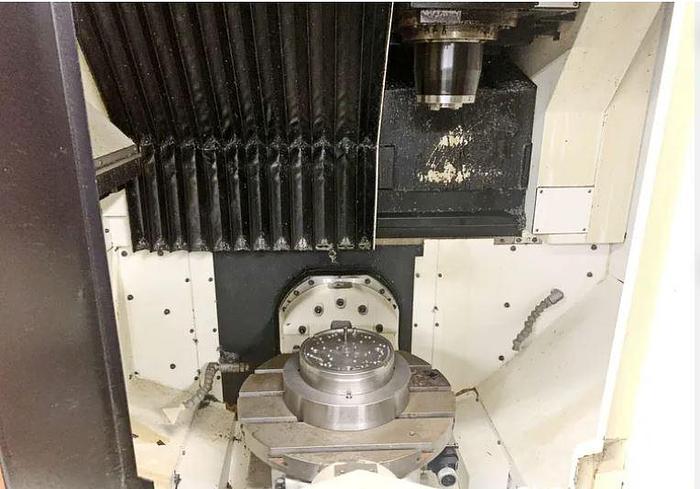

2015 Mazak VC-500A-5X with Trunnion Table and Coolant Through the Spindle

2015 Mazak VC-500A-5X with Trunnion Table and Coolant Through the Spindle

$79,500 (USD)

Location:Indiana

orCall (863) 439-6066

Description

Trunnion Style 5th Axis Table

Rotating 4th Axis Table

Chip Conveyor

Coolant Through the Spindle

Automatic Tool Length Measurement Probe

USB Port Interface

Card Interface

RS 232 Port Interface

Rigid Tapping

Head Oil Chiller Cools Both Head and Table

Roller Gear Cam Drive for Rotary/Tilt Table for Rigidity and Positioning Accuracy for B Axis

Direct Drive Motor for C Axis

All Available Manuals

Show All

Specifications

ManufacturerMazak
ModelVC-500A-5X
Year2015
ConditionUsed
Stock Number119785
Machine ControlMazatrol SmoothX Control
Table Size19.68" Diameter
Maximum Workpiece Diameter / Height19.68" / 12"
Maximum Table Load440 lbs
X-Axis Travel19.88"
Y-Axis Travel19.88"
Z-Axis Travel20.07"
B-Axis Tilt Movement+110 Degrees to -110 Degrees
C-Axis Rotation360 Degrees
Spindle Speed12,000 RPM
Spindle TaperCAT 40
Spindle Motor15 HP
Tool Magazine Capacity20 Station Tool Changer
Maximum Tool Diameter / Length / Weight3.15"/ 10.23" / NA
Rapid Traverse Rates1181 IPM
Machine Dimensions LxWxH118.5"x99"x118"
Machine Weight16,000 lbs.
