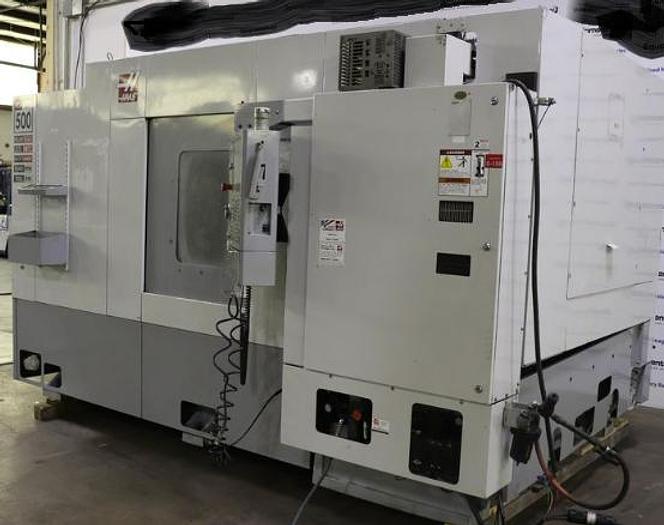

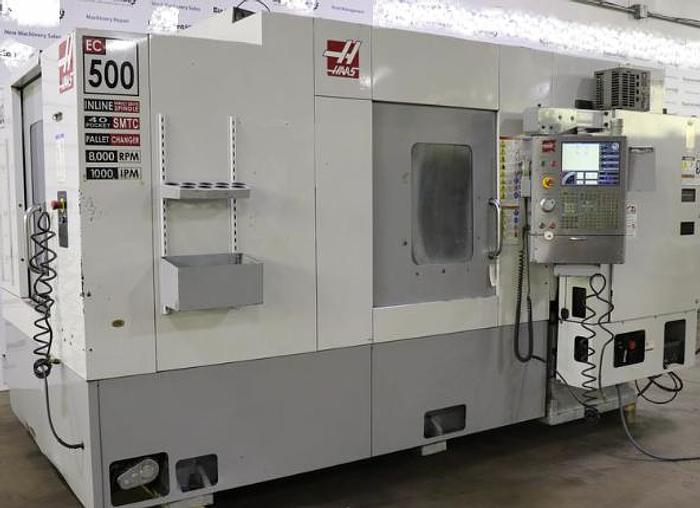

2007 Haas EC-500
No longer available
2007 Haas EC-500
Location:Georgia
Description
2 Pallet Changer System
1 Degree Pallet Indexing
40 Station Tool Changer
Remote Jog Handle
User Definable Macros
Coordinate Rotation & Scaling
Spindle Orientation
Rigid Tapping
Media Display
Ethernet Interface
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
406V 3 Phase Power
Specifications
| Manufacturer | Haas |
| Model | EC-500 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 119784 |
| Pallet Size / Number of Pallets | 20"x20" / 2 Pallets |
| Table load capacity | 1000 lbs |
| X axis travel | 32" |
| Y axis travel | 20" |
| Z axis travel | 28" |
| C axis table rotation | 1 Degree Positioning |
| Spindle taper | CAT #40 |
| Spindle speed | 8,100 RPM |
| Spindle motor | 20 HP |
| Distance Spindle Nose to Table Top | 4" - 20" |
| Tool magazine | 40 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 1000 IPM |
| Machine dimensions | 120" x 98" x 110" |
| Machine weight | 12,500 lbs |
