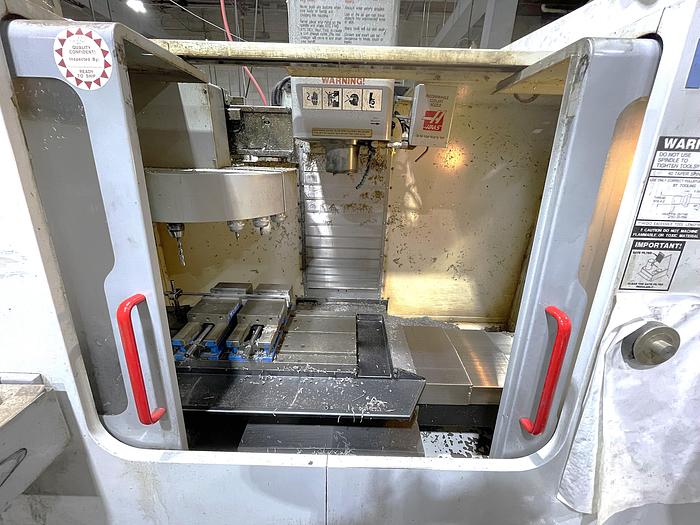

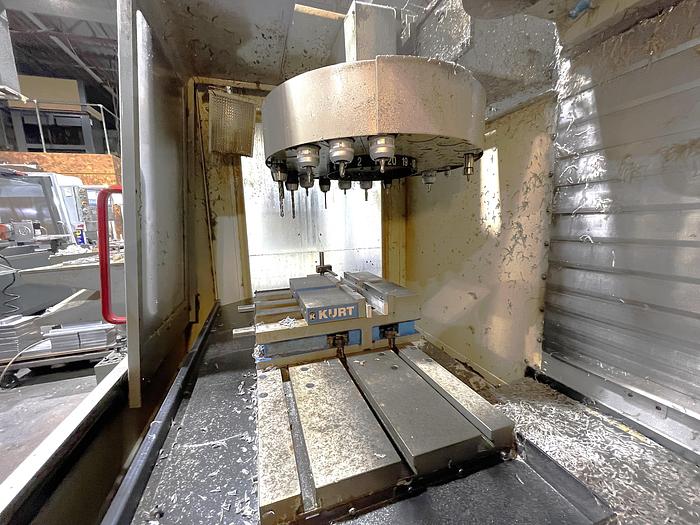

2003 Haas VF2D w/ 15,000 rpm spindle, pcool, chip auger
No longer available
2003 Haas VF2D w/ 15,000 rpm spindle, pcool, chip auger
$10,900 (USD)
Location:New Jersey
Description
15,000 RPM Spindle Option
Auger Style Chip Conveyor Programmable Coolant Nozzle
1 MB Programming Memory
Spindle Orientation
Visual Quick Code Programming
3.5" Floppy Disk Interface
RS 232 Port Interface
Wired 208/230V Electrics
Direct Drive Transmission Complete Coolant System with Tank & Pump All Available Manuals

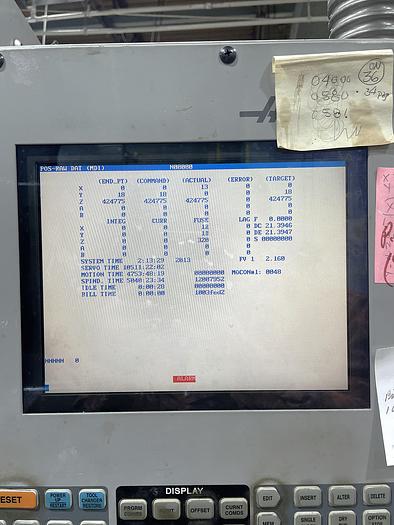

**Machine Servo On Hours 10,511**
**Machine Motion Hours 4,753**
**Machine Spindle Hours 5,040**
Specifications
| Manufacturer | Haas |
| Model | VF2D |
| Year | 2003 |
| Condition | Used |
| Stock Number | 119778 |
| Control | Haas 32 BIT |
| Table Size | 36" x 14" |
| Maximum Table Load | 1,000 lbs |
| X-Axis Travel | 30" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 20" |
| Spindle Speed | 15,000 RPM |
| Spindle Taper | CAT 40 |
| Spindle Motor | 20 HP |
| Tool Magazine Capacity | 20 Station Umbrella Style ATC |
| Rapid Traverse Rates | 1,000 IPM |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Maximum Tool Diameter / Length / Weight | 3.5"/ NA / 12 lbs |
| Machine Dimensions LxWxH | 88"x92.5"x104" |
| Machine Weight | 8,000 lbs |
