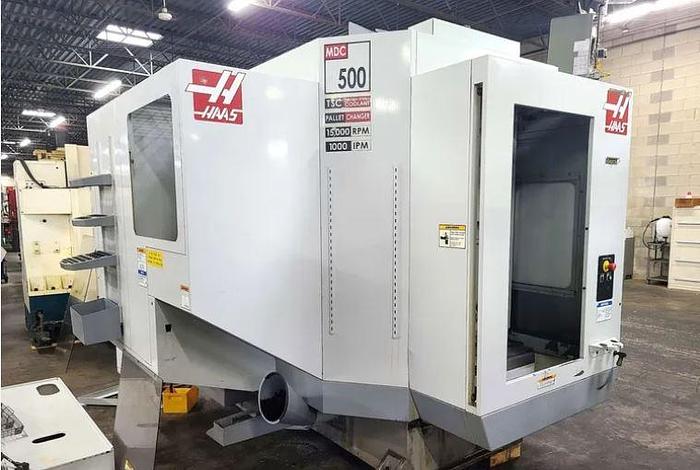

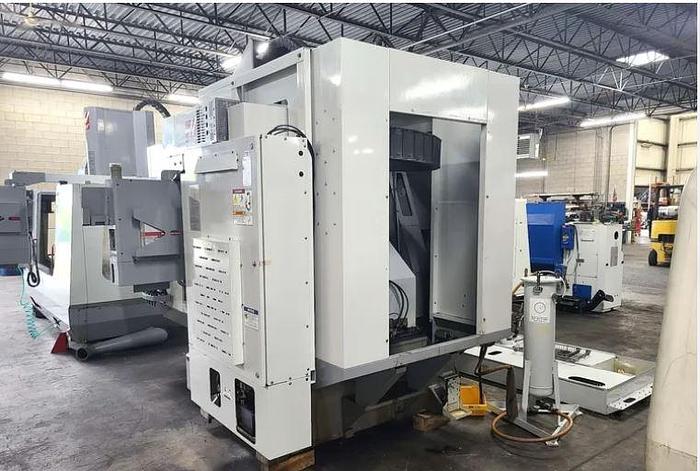

2006 Haas MDC-500 Mill Drill Center with 2 Pallet Changer, 15,000 RPM, Coolant Thru Spindle, High Speed Machining

15,000 RPM Spindle

Coolant Thru the Spindle

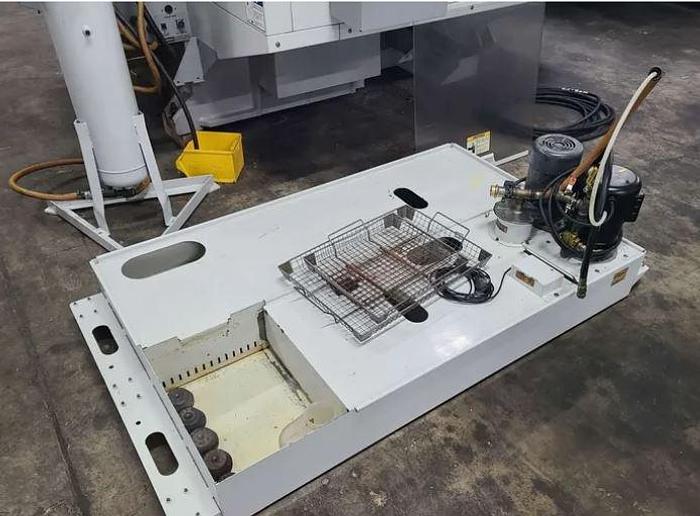

Coolant Filtration System

Auger Style Chip Conveyor

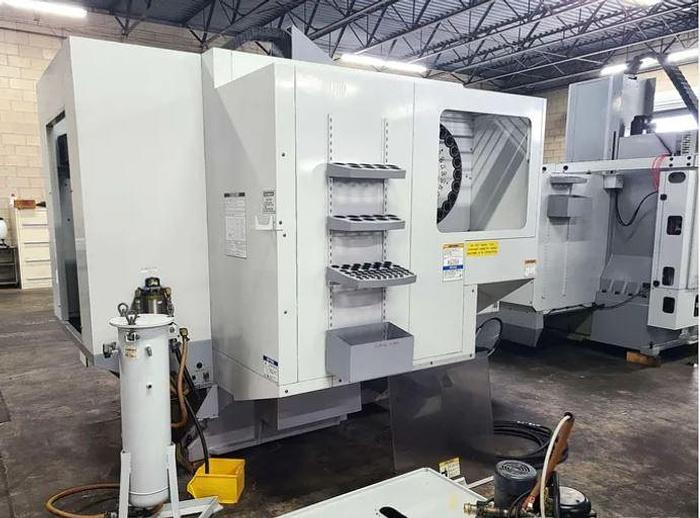

24 Station Side-Mounted Tool Changer

High Speed Machining

Rigid Tapping

Brushless Servos on All Axes

USB Port Interface (3.5" Floppy Disk Drive Conversion Kit)

RS 232 Port Interface

Wired 220V Electrics

All Available Manuals

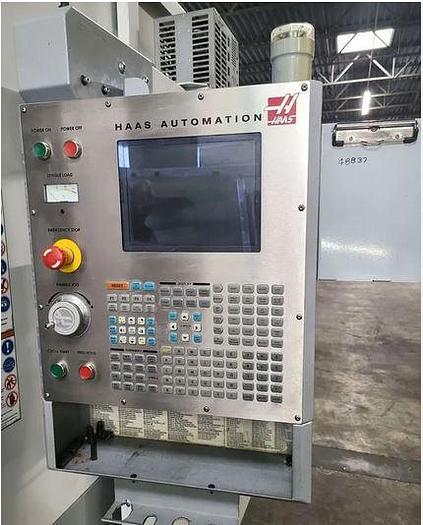

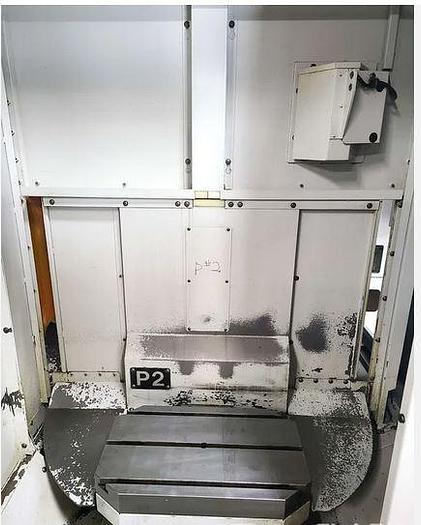

The 2006 Haas MDC-500 Mill Drill Center is a robust and versatile machine designed for efficiency in diverse manufacturing settings. Equipped with a Haas CNC control, it features a dual pallet system, each measuring 20" x 12.75", allowing for streamlined production workflows. The machine supports a maximum table load of 700 lbs, accommodating various workpiece sizes and weights. This mill drill center offers substantial capabilities with its 20" x-axis travel, 14" y-axis travel, and 20" z-axis travel, powered by a 20 HP spindle motor. The spindle achieves speeds up to 15,000 RPM with a CAT 40 taper, suitable for high-speed machining operations. A coolant through spindle feature enhances precision and prolongs tool life by effectively managing tool temperatures. Additional highlights include a 24+1 side-mounted automatic tool changer, with a tool change time of 4.8 seconds, and rapid traverse rates of 1,000 inches per minute, optimizing cycle times. With machine dimensions of 133" x 105" x 101" and a weight of 16,000 lbs, this used model offers reliability and performance in a manageable footprint, ensuring it fits a variety of production environments.
