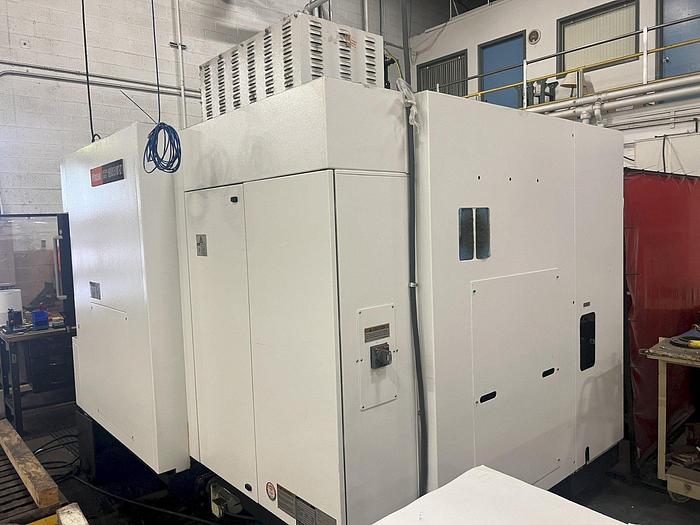

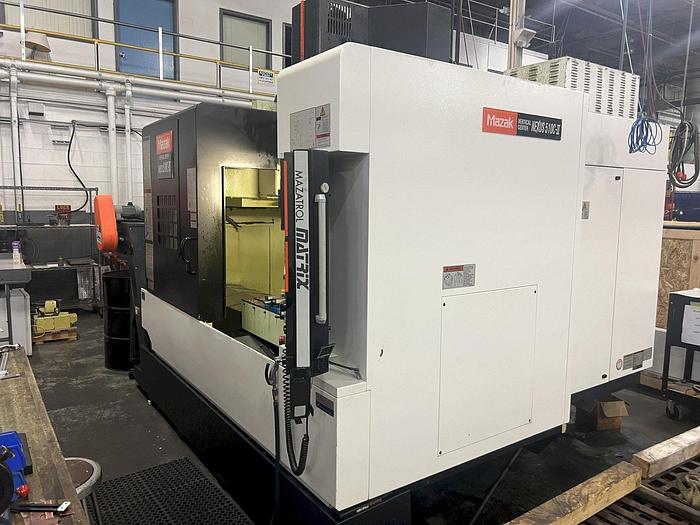

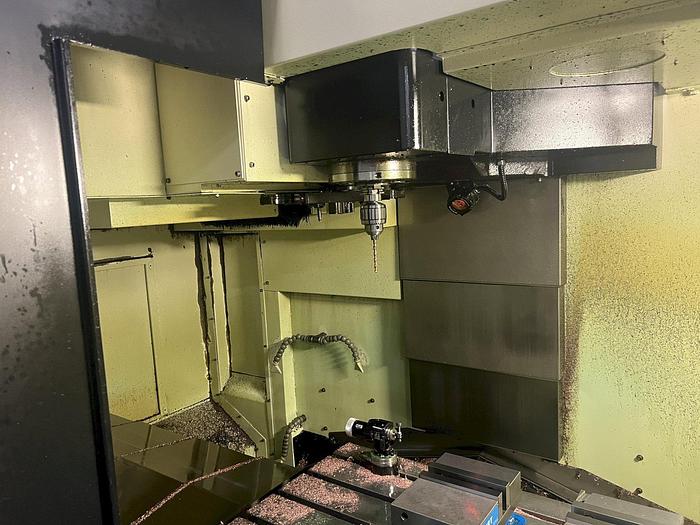

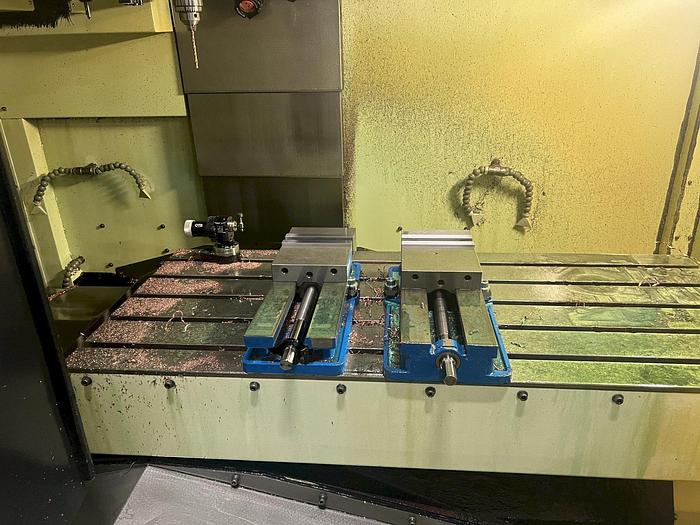

2013 Mazak Nexus VCN 510C II with 4th Axis Table, Probing, Coolant Through Spindle
2013 Mazak Nexus VCN 510C II with 4th Axis Table, Probing, Coolant Through Spindle
$69,500 (USD)
Location:Michigan
or
Call (863) 439-6066
Description

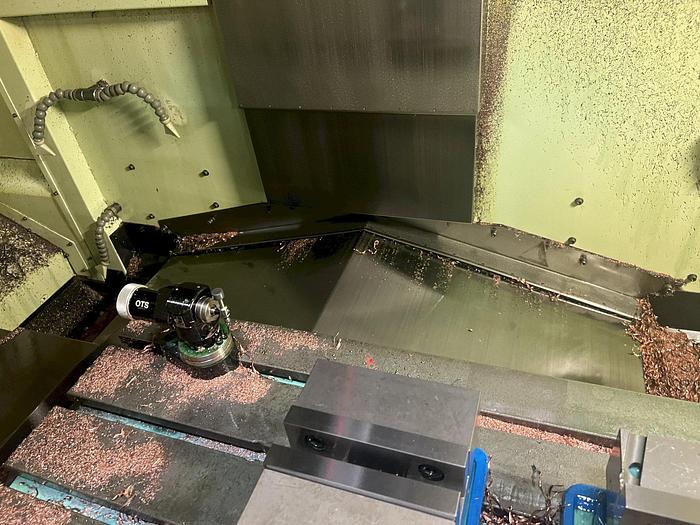

Dual Probe Kit with EIA Inspection Plus
4th Axis Ready

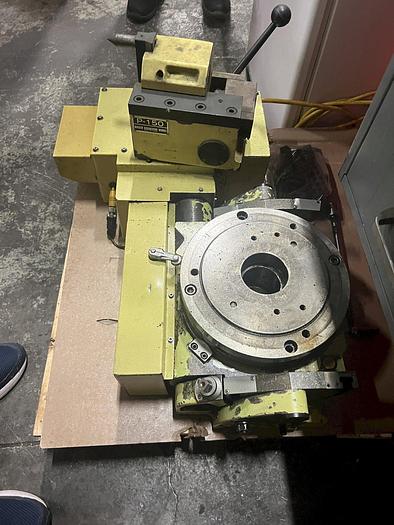

Lyndex/Nikken NST-250MA Manual Tilting Rotary Table with Tailstock
Chip Conveyor
Coolant Through the Spindle 30 Station Side Mounted Tool Changer Remote Hand Held MPG
Coordinate Rotation & Scaling Rigid Tapping
EIA/ISO Input Function
EIA 3D Compensation
EIA Helical Tapping Cycle
EIA Pattern Cycle
Auto Pecking
Tilted Work Plane
Threading G-00 Slope Constant Mazzac2D Software G-61.1 PCMCIA Interface 2 Slots USB Port Interface 3.5" Floppy Disk Drive Interface RS-232 Port Interface Multi Tap Transformer
Coolant Tank with Pump
Specifications
| Manufacturer | Mazak |
| Model | Nexus VCN 510C II |
| Year | 2013 |
| Condition | Used |
| Stock Number | 119767 |

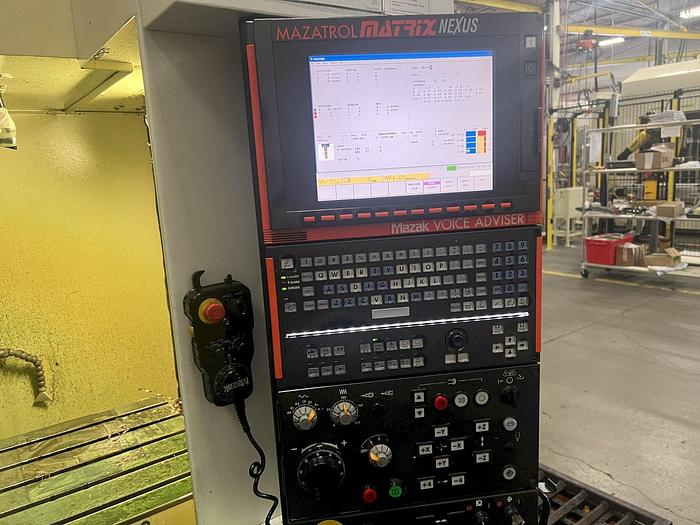

| Control | Mazatrol Matrix Nexus |
| Table Size | 51.18" x 21.65" |
| Maximum Table Load | 2,646 lbs. |
| X-Axis Travel | 41.3" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 20" |
| Spindle Taper | CAT #40 |
| Spindle Speeds | 12,000 RPM |
| Spindle Motor | 25 HP |
| Distance Spindle Nose to Table Top | 5.9" - 25.98" |
| Number of Tool Positions | 30 Station Tool Changer - Side Mounted |
| Maximum Tool Diameter / Length / Weight | 4.92" / 13.8" / 17 lbs. |
| Tool Change Time Tool to Tool | 1.3 seconds |
| Rapid Traverse Rates | 1,417 IPM |
| Machine Dimensions | 113" x 111" x 113" |
| Machine Weight | 15,180 lbs. |
