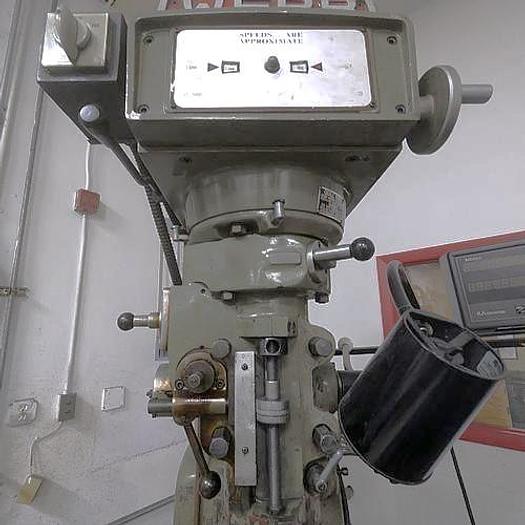

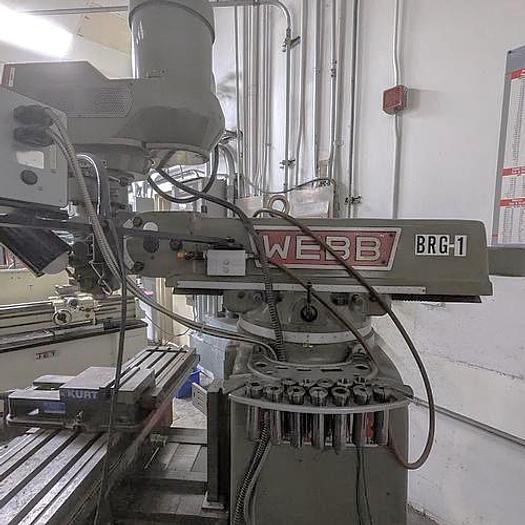

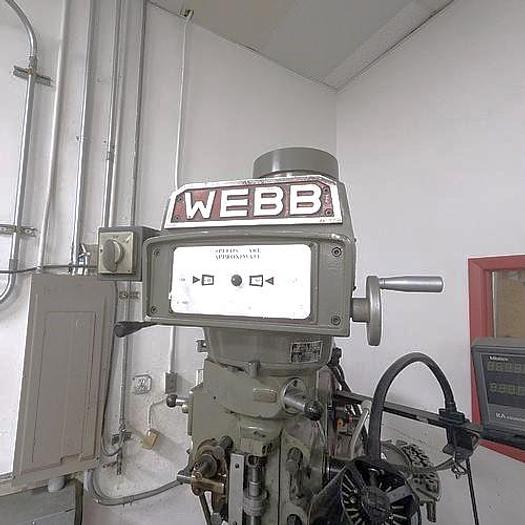

1987 Webb Champ 10"x50" Knee Mill with Mitutoyo 2 Axis Digital Readout, Power Feed on X Axis
No longer available
1987 Webb Champ 10"x50" Knee Mill with Mitutoyo 2 Axis Digital Readout, Power Feed on X Axis
Location:Florida
Description

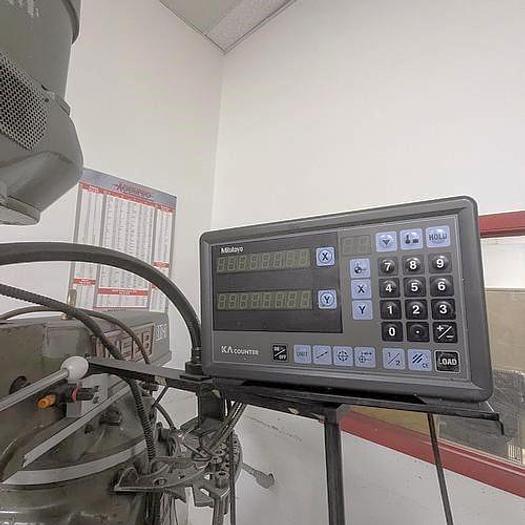

Mitutoyo 2 Axis DRO

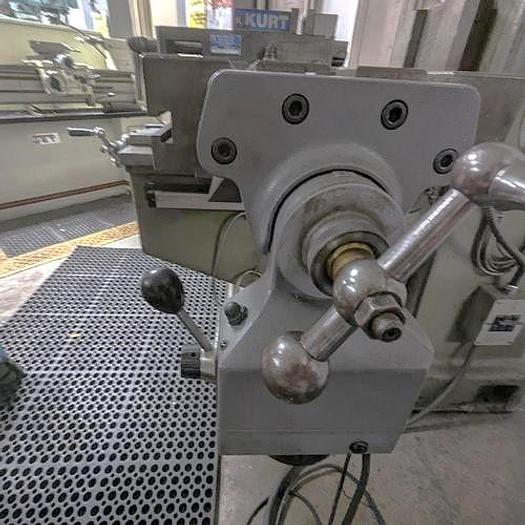

Power Feed on X-Axis

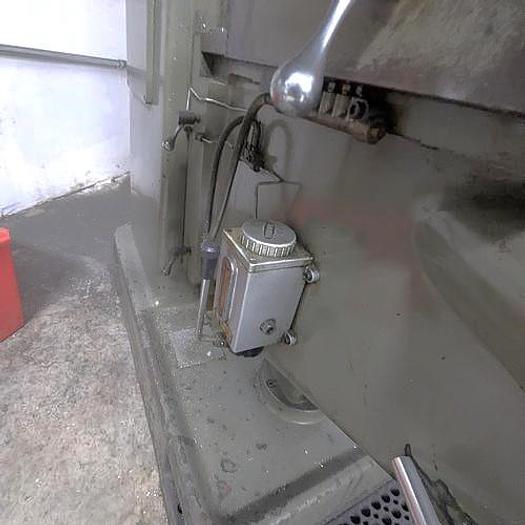

Manual Oiler

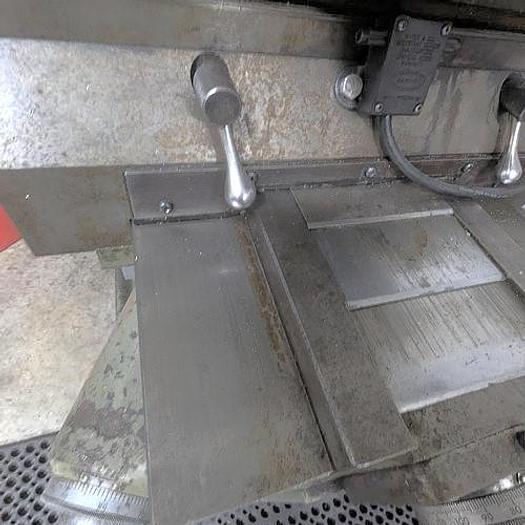

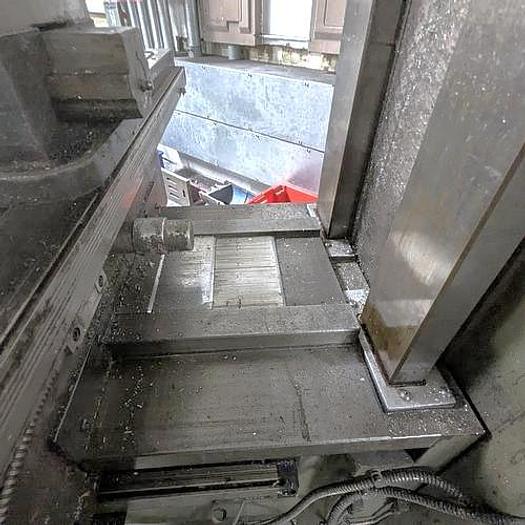

Boxed Ways
Variable Speed
Work Light
220/440 Volts
Specifications
| Manufacturer | Webb |

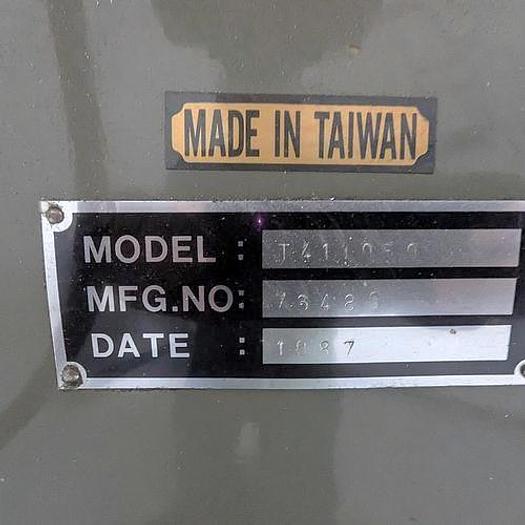

| Model | Champ 10"x50" Knee Mill |
| Year | 1987 |
| Condition | Used |
| Stock Number | 119742 |

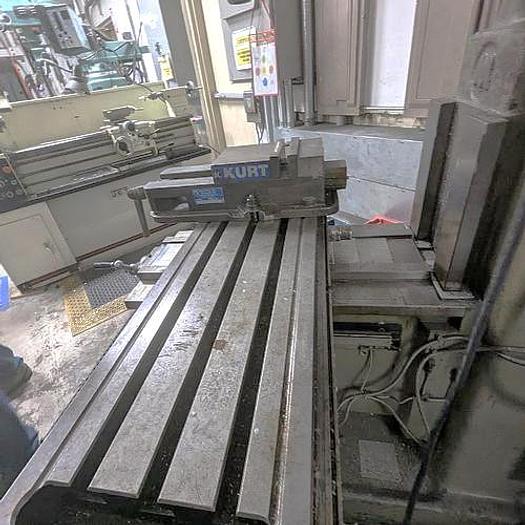

| Table Size | 50" x 10" |
| Maximum Table Load | 946 lbs |
| X-axis travel | 36" |
| Y-Axis Travel | 10" |
| Spindle Taper | R8 |

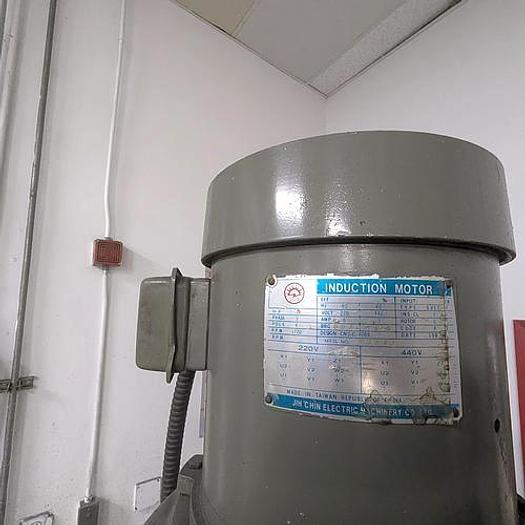

| Spindle Motor | 3 HP |
| Spindle speed | 60 to 500 RPM Low / 500 to 4,200 RPM High Variable |
| Spindle Quill Travel | 5" |
| Spindle Tilt | +/- 45 Degrees |
| Spindle Swivel | +/- 90 Degrees |
| Distance Spindle Nose to Table Top | 1.625" to 16.5" |
| Knee Travel | 18" |
| Floor Space Required | 84" x 84" x 84" |
| Machine Weight | 3,325 lbs |
