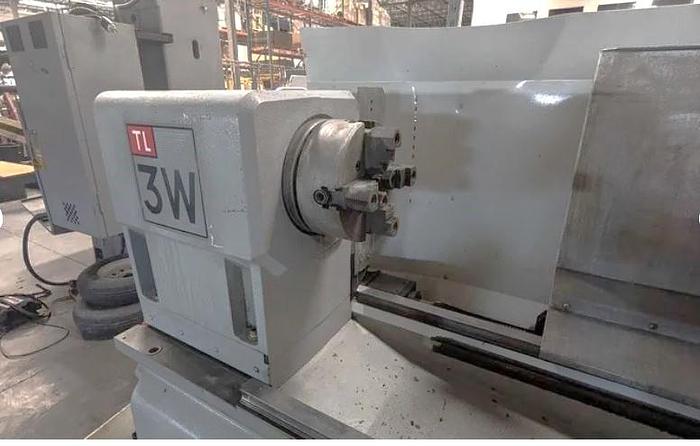

2007 Haas TL-3W, "W" Model with Greater 30" swing
No longer available
2007 Haas TL-3W, "W" Model with Greater 30" swing
$39,950 (USD)
Location:Utah
Description
12" 4 Jaw Manual Chuck

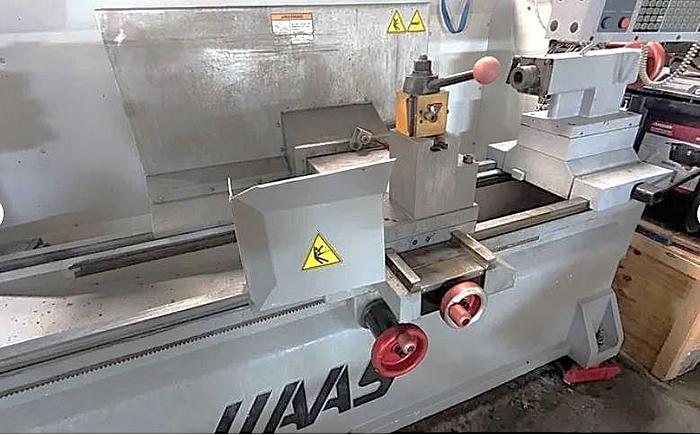

Tool Post
Tailstock

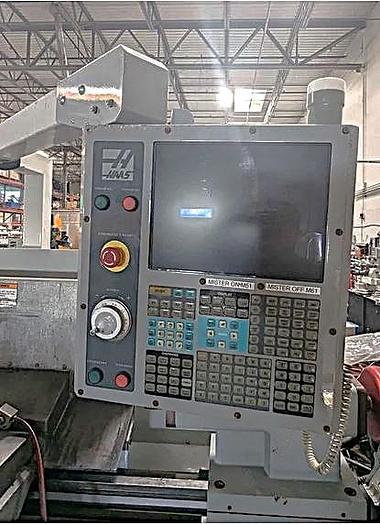

Haas Intuitive Programming System
Oil Mist System
Work Light
Manual Hand Wheels
USB Port Interface
RS 232 Port Interface
**This machine was not used with Coolant and does not include a coolant tank**
** "W" Model Offers Greater Swing of 30", compared to 20" on a standard TL3, and 18" Cut Diameter, compared to 13" on a standard TL3**
Specifications
| Manufacturer | Haas |
| Model | TL-3W |
| Year | 2007 |
| Condition | Used |
| Stock Number | 119733 |
| Machine Control | Haas CNC Control |
| Chuck Size | 12" 4-Jaw Manual Chuck |
| Maximum Swing | 30" |
| Maximum Machining Diameter | 30" |
| Maximum Swing Over Cross Slide | 18" |
| Distance Between Centers | 60" |
| X-axis travel | 16" |
| Z-Axis Travel | 60" |
| Spindle Speeds | 0 - 1,800 RPM |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3.5" / 3.5" |
| Spindle Motor | 18 HP |
| Number of Tool Positions | Tool Post |
| Rapid Traverse Rates X/Z | 75 IPM / 150 IPM |
| Tailstock Bore Taper | #5 MT |
| Machine Dimensions LxWxH | 123" x 75" x 86" |
| Machine Weight | 7,624 lbs |
