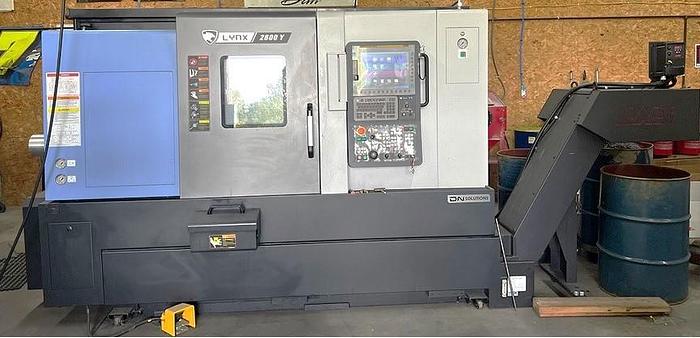

2022 DN Solutions Lynx 2600Y with Milling and Y Axis Capability

No disponible

2022 DN Solutions Lynx 2600Y with Milling and Y Axis Capability

$129.950 (USD)

Ubicación:Ohio

Descripción

Full C Axis Spindle Rotation

Live Milling/Drilling Capability

Y Axis Capability

Parts Catcher

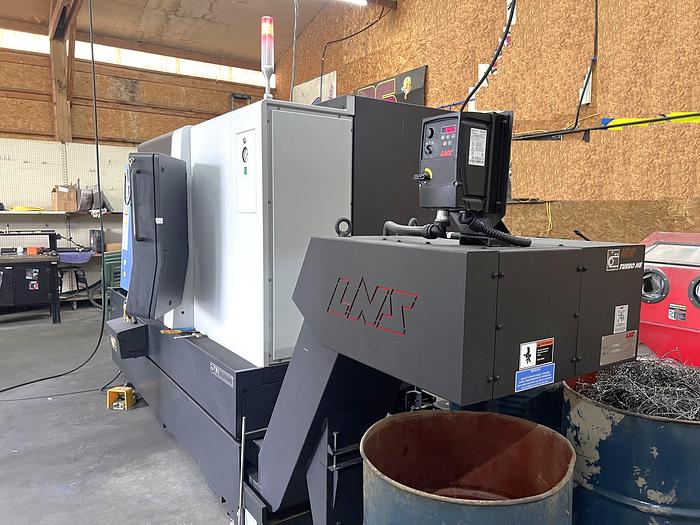

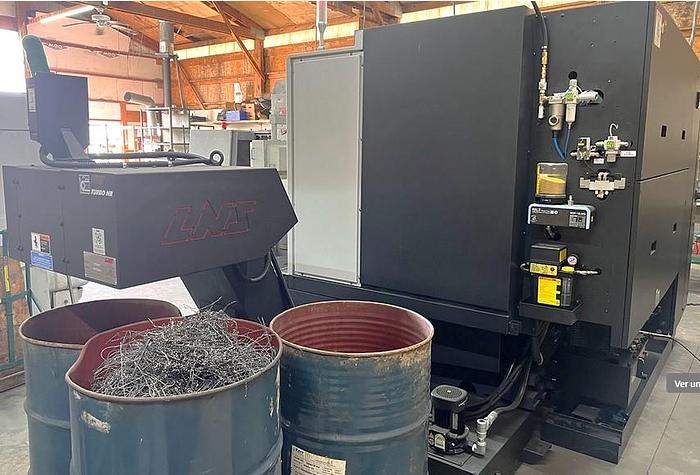

Chip Conveyor

Hydraulic Tailstock

Barfeed Interface ONLY

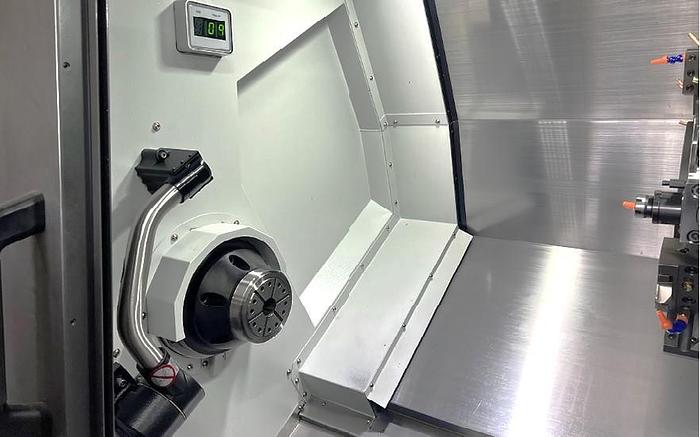

10" Samchully 3 Jaw Hydraulic Chuck

Royal QG-80 Accu-Length Collet Chuck

Royal QG-80 Manual Collet Install Tool

Auto Tool Presetter

Mill Tool Synchronous Tapping

EZ Guide I Conversational Programming

iHMi Touch Screen Control

Coolant System with Tank & Pump

Machine Status Condition Light

Miscellaneous Royal Collets

Miscellaneous Spindle Liners

Bar Puller

Extended Coolant Collector

(3) Live Eppinger Tool Holders (2 X Axis and 1 Z Axis)

Miscellaneous Static Tool Holders

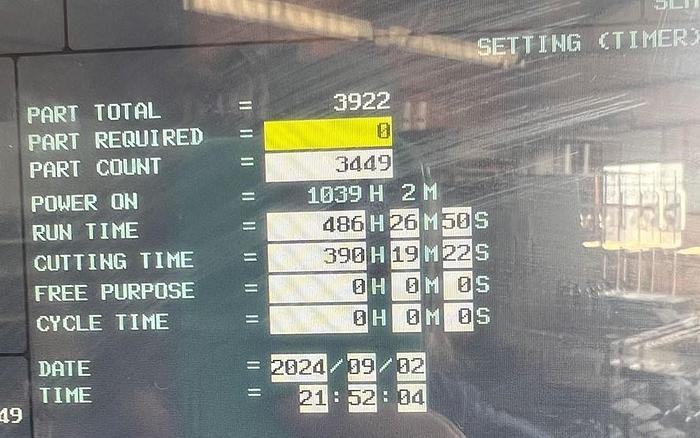

**Power On Hours 1,039**

**Run Time Hours 486**

**Cutting Hours 390**

Mostrar Todo

Especificaciones

FabricanteDN Solutions (Doosan)
ModeloLynx 2600Y
Año2022
CondiciónUsado
Número de Stock119720
Machine ControlFanuc 0i-Plus CNC Control
Chuck Size10" 3 Jaw Hydraulic Chuck
Maximum swing over bed23.6"
Maximum turning diameter14.96"
Maximum turning length24"
Maximum bar capacity3.19"
X-axis travel10"
Y-axis travel4.13" (+/- 2.065")
Z-axis travel27"
C axis spindle rotation.001 Degree
Spindle nose / spindle boreA2-8" / 3.5"
Spindle Speed3,500 RPM
Spindle motor25 HP
Spindle Torque297 ft./lbs.
Rotary tool motor / speeds7 HP / 6,000 RPM

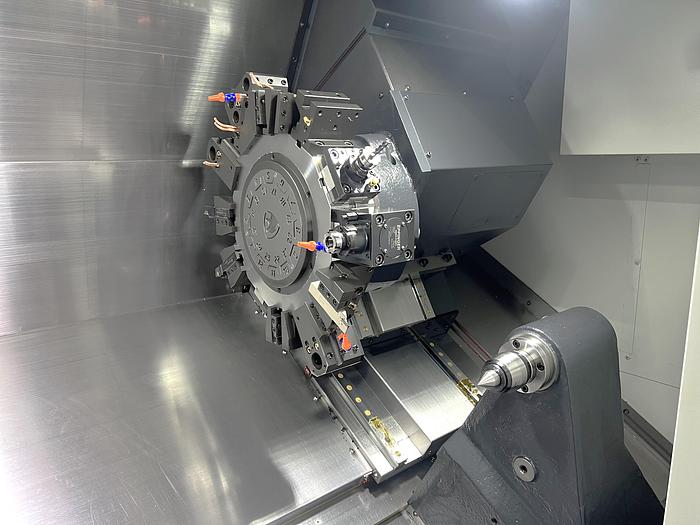

Turret type - all live capable12 Sided / 24 Stations
Rapid Traverse Rates1181 IPM
Machine dimensions lxwxh135" x 82" x 76"
Machine weight12,677 lbs.
