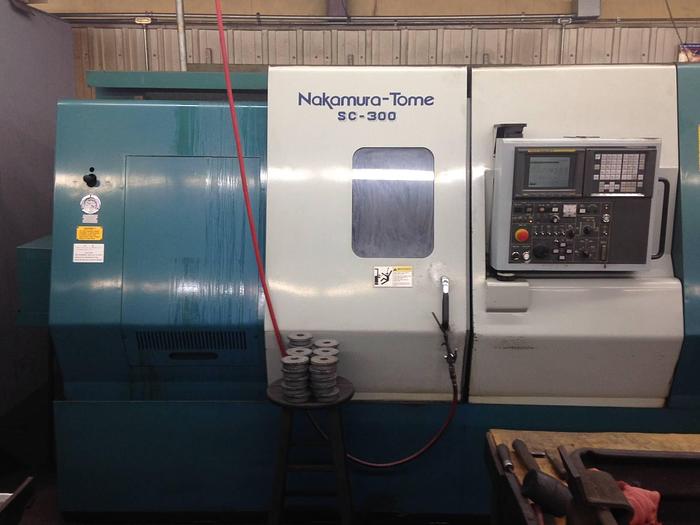

2005 Nakamura Tome SC300 w/ Fanuc 21iT Control, Chip Conveyor, 12" Hydraulic Chuck, 3.34" Spindle Bore
2005 Nakamura Tome SC300 w/ Fanuc 21iT Control, Chip Conveyor, 12" Hydraulic Chuck, 3.34" Spindle Bore
$29,500 (USD)
Location:North Carolina
or
Call (863) 439-6066
Description
Chip Conveyor
Tailstock

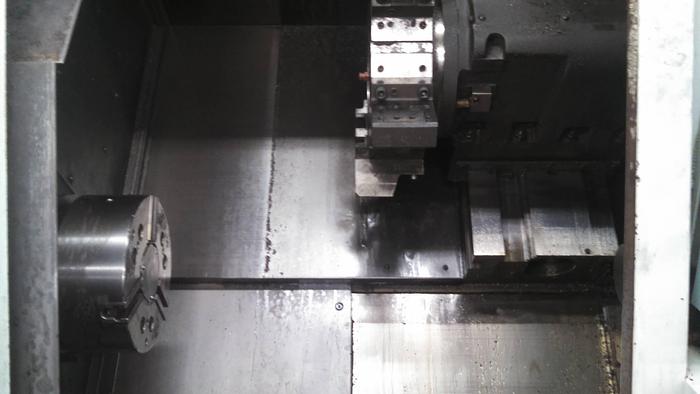

12" 3 Jaw Hydraulic Chuck
Coolant System with Tank & Pump
RS 232 Port Interface
All Available Tooling
All Available Manuals
Specifications
| Manufacturer | Nakamura Tome |
| Model | SC300 Fanuc 21iT |
| Year | 2005 |
| Condition | Used |
| Stock Number | 119707 |

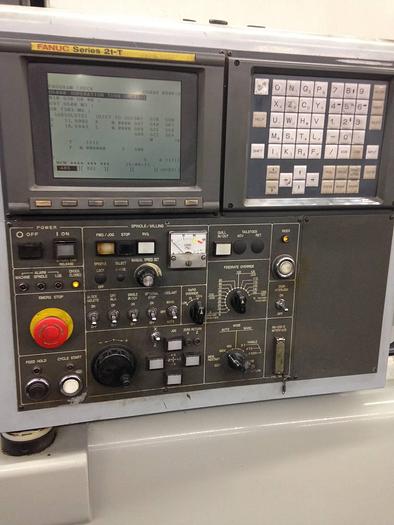

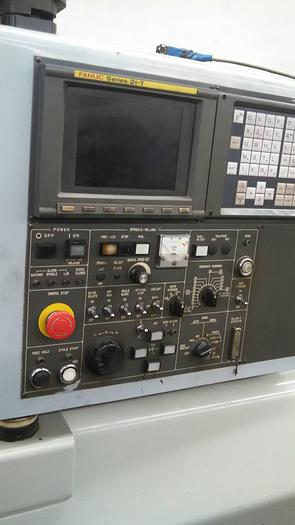

| Machine Control | Fanuc 21-T |
| Chuck size | 12" Hydra. Chuck |
| Maximum swing over bed | 22.05" |
| Maximum swing over saddle | 17.71" |
| Maximum turning diameter/length | 13.78" / 23.62" |
| X-axis travel | 8.76" |
| Z-axis travel | 25" |
| Spindle nose / spindle bore | A2-8" / 3.34" |
| Spindle speed | 35 - 3,500 RPM |
| Spindle motor | 30 HP / 25 HP |

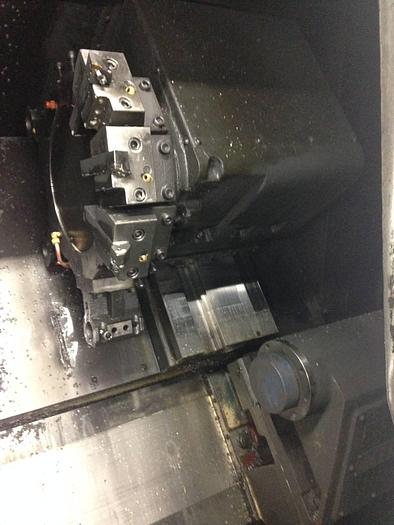

| Turret type | 12 Position Turret |
| Rapid traverse rates x / z | 629 IPM / 787 IPM |
| Tailstock quill diameter | 3.54" |
| Tailstock body stroke/quill stroke | 15.75" / 3.94" |
| Machine dimensions | 126"x68"x77" |
| Machine weight | 11,230 lbs. |
