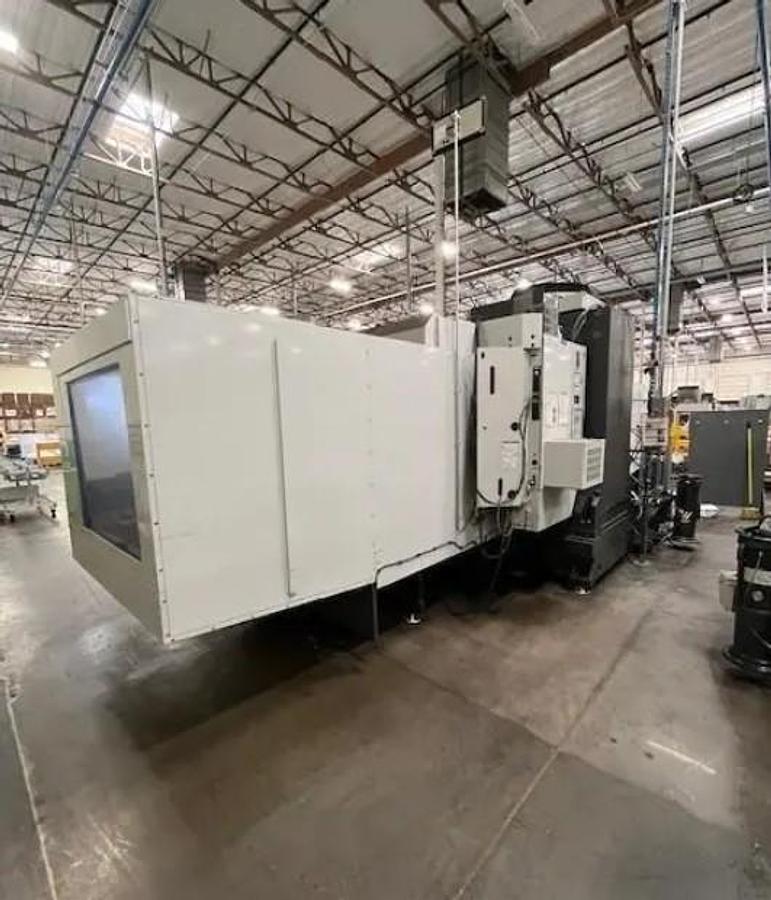

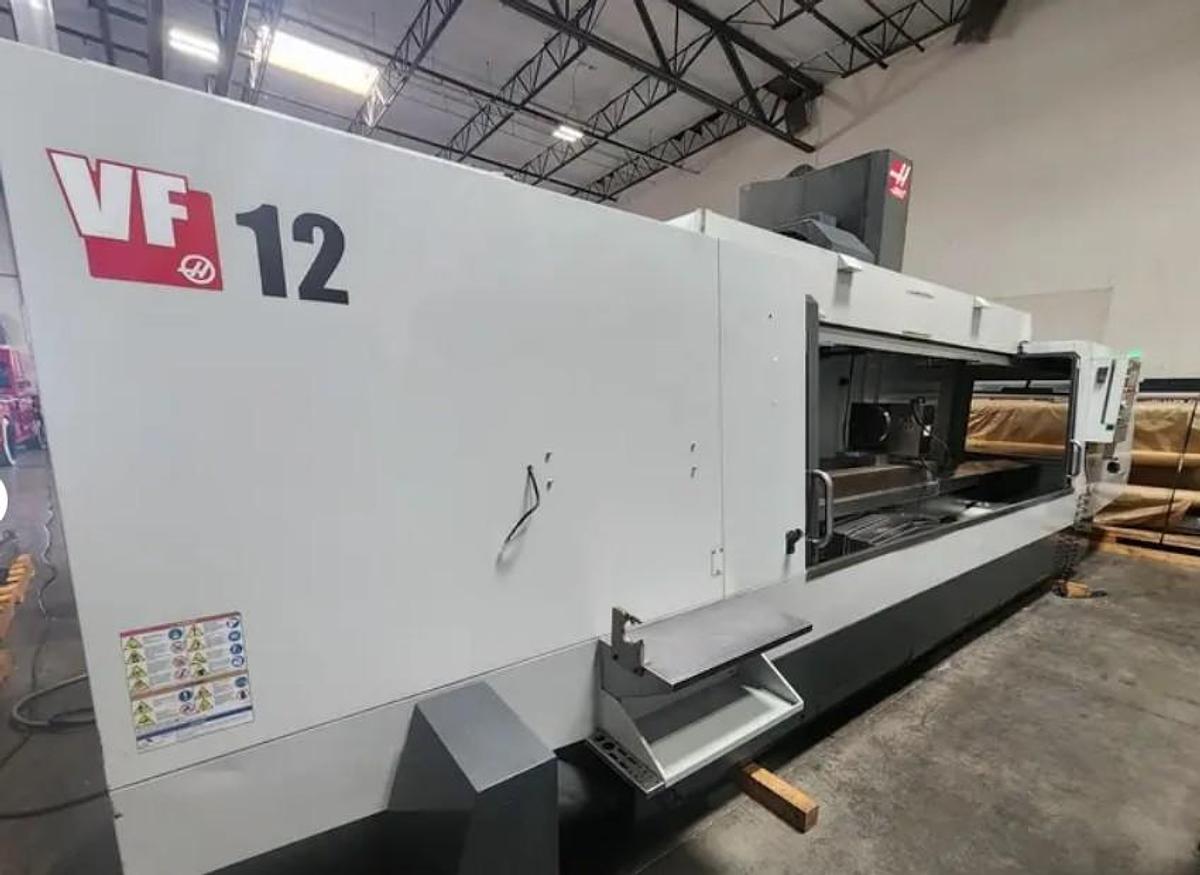

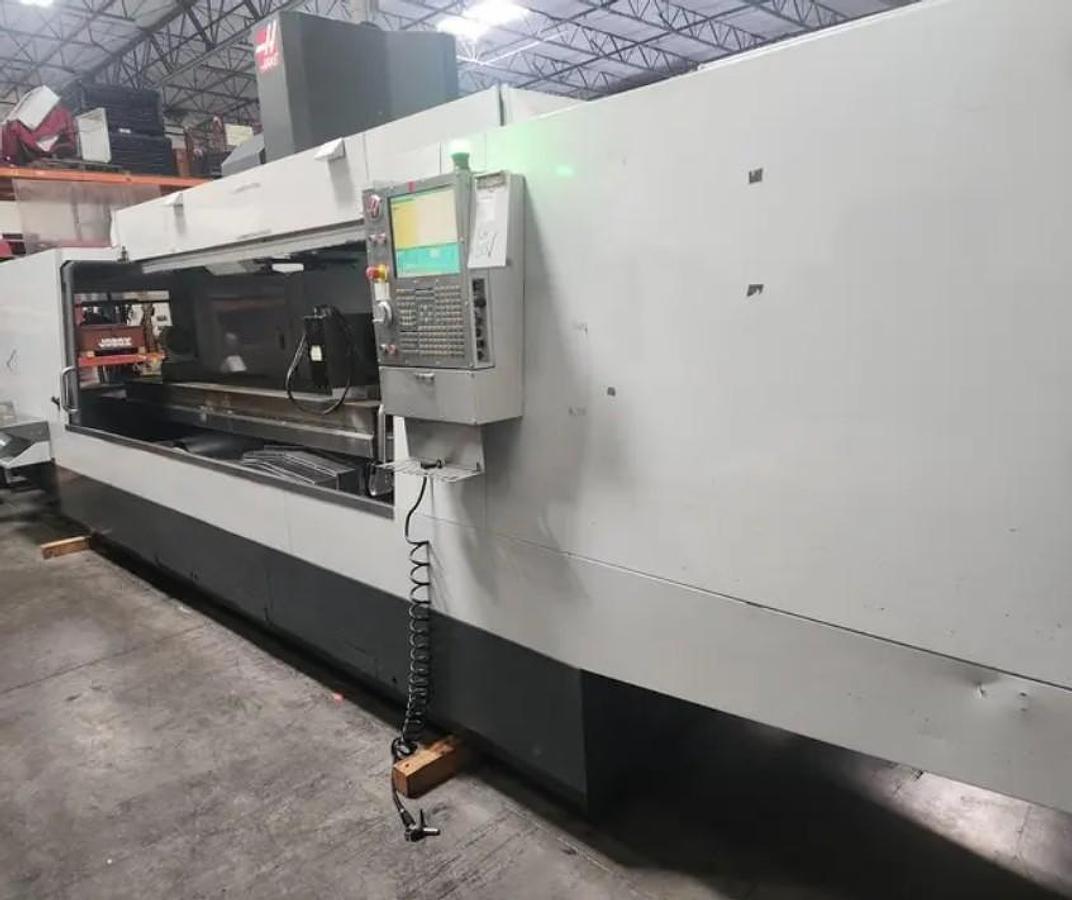

2014 Haas VF-12/40 with Haas HRT-310 4th Axis Rotary Table
2014 Haas VF-12/40 with Haas HRT-310 4th Axis Rotary Table
Location:Arizona
Description
4th Axis Drive & Wiring

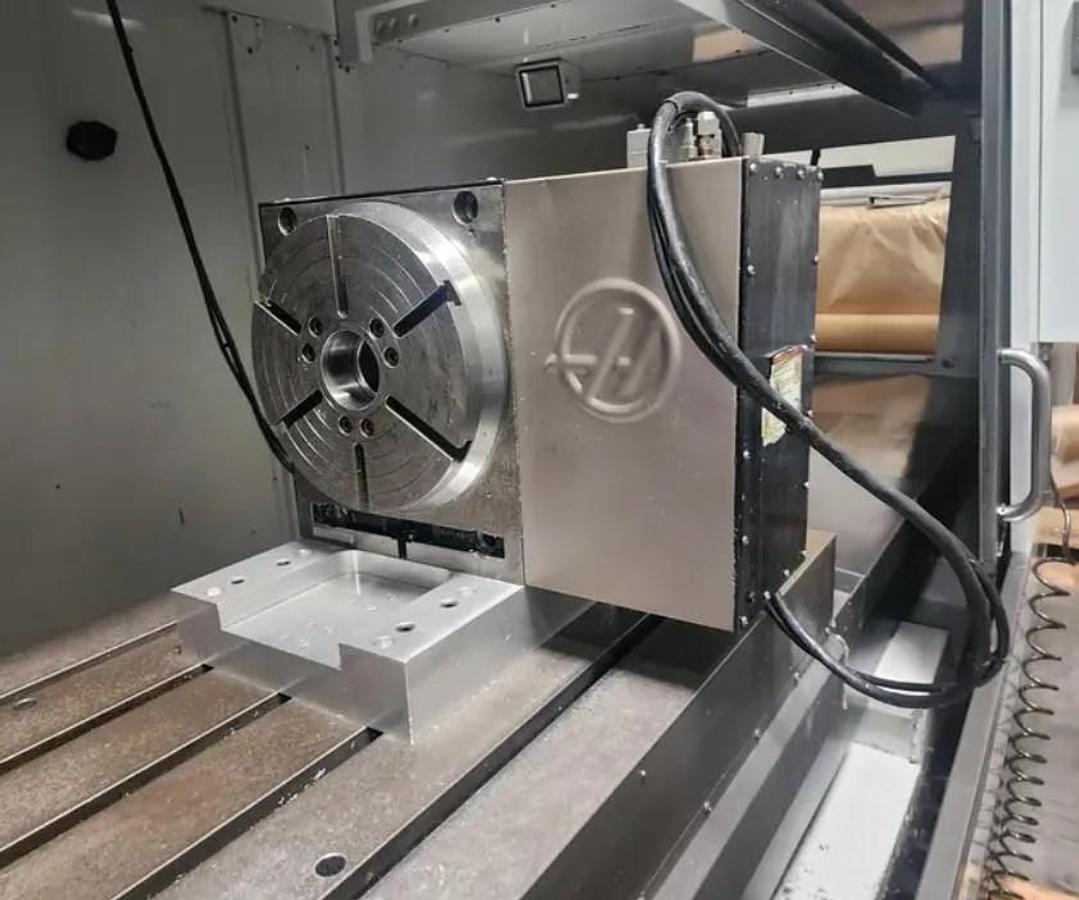

Haas HRT-310 4th Axis Rotary Table
High Speed Machining
10,000 RPM Spindle
2 Speed Gear Box
Programmable Coolant Nozzle
300 PSI Coolant Through the Spindle
Auxiliary Coolant Filter System
Wireless Intuitive Probing System - Renishaw
User Definable Macro
Spindle Orientation
Coordinate Rotation & Scaling
Haas Intuitive Programming System
Remote Jog Handle
Auger Style Chip Conveyor
High Intensity Lighting
Ethernet Interface
USB Port Interface
RS 232 Port Interface
8 Spare M Functions
CNC Control Cabinet Cooler
Linear Scales
Early Power Failure Detection Module
2nd Home Position
Internal High Voltage Transformer
Rigid Tapping
(24) CAT 40 Haas Pull Studs
**Hours have been reset at some point, but are estimated to be between 10,000 - 12,000 spindle hours**
**New in August of 2014**
Specifications
| Manufacturer | Haas |
| Model | VF-12/40 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 119704 |
| Table Size | 150" x 28" |
| Maximum Table Load | 4,000 lbs |
| X-Axis Travel | 150" |
| Y-Axis Travel | 32" |
| Z-Axis Travel | 30" |
| Spindle Speed | 10,000 rpm 2-Speed Geared Head |
| Spindle Taper | CAT 40 |
| Spindle Motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 34" |

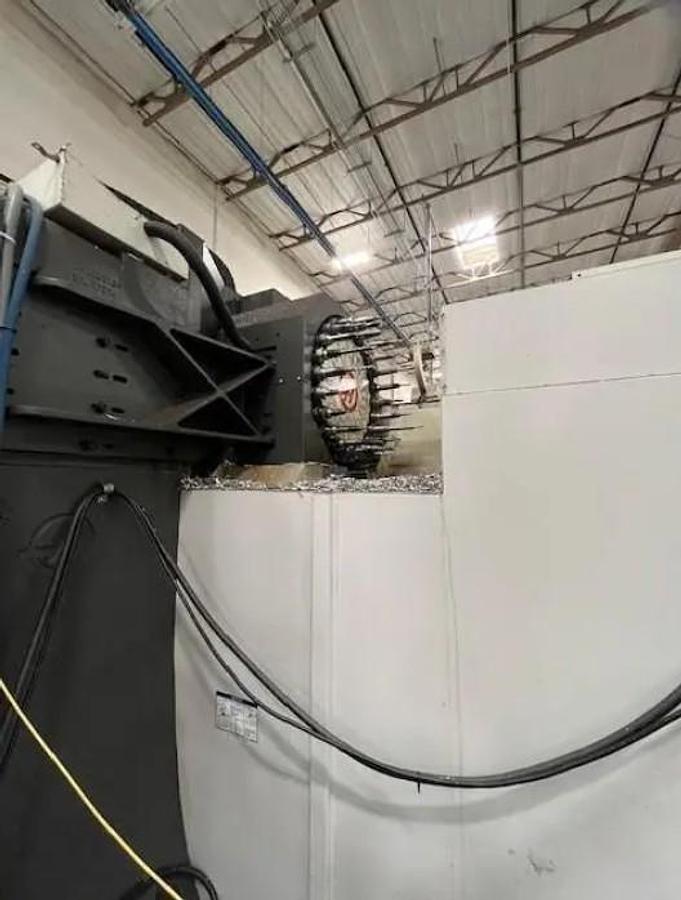

| Tool Magazine Capacity | 24 Station Side Mounted Tool Changer |
| Rapid Traverse Rates X / Y, Z | 360 IPM / 600 IPM |
| Machine Dimensions LxWxH | 343"x110"x130" |
| Machine Weight | 36,300 lbs |
