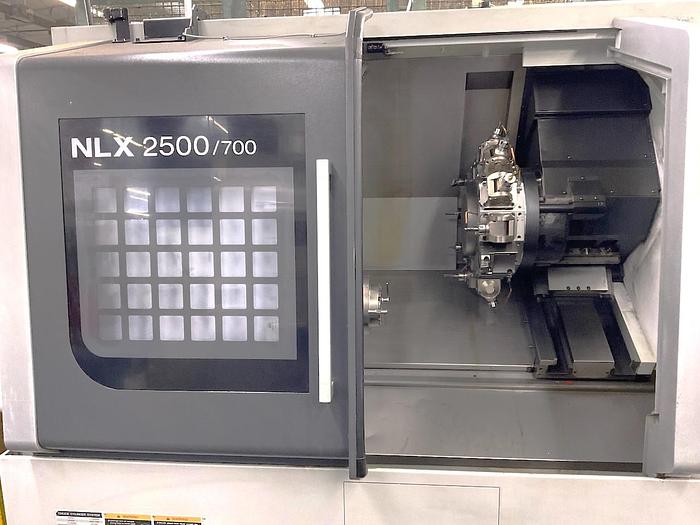

2014 DMG Mori NL2500Y/700 Chucker with Milling and Y Axis
2014 DMG Mori NL2500Y/700 Chucker with Milling and Y Axis
$87,900 (USD)
Location:Pennsylvania
or
Call (863) 439-6066
Description

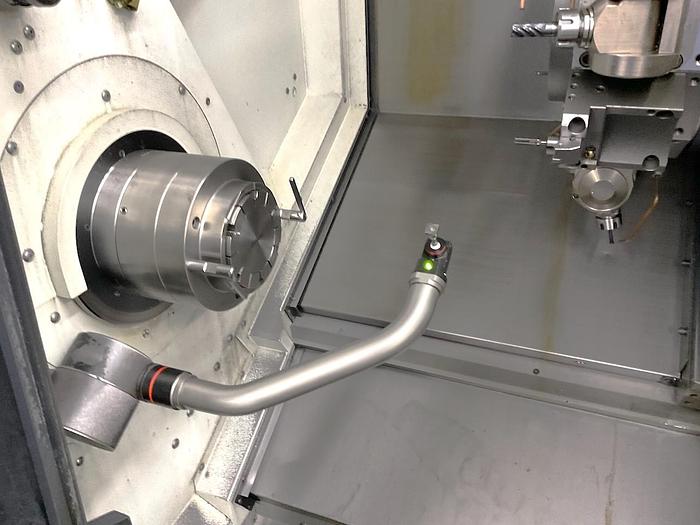

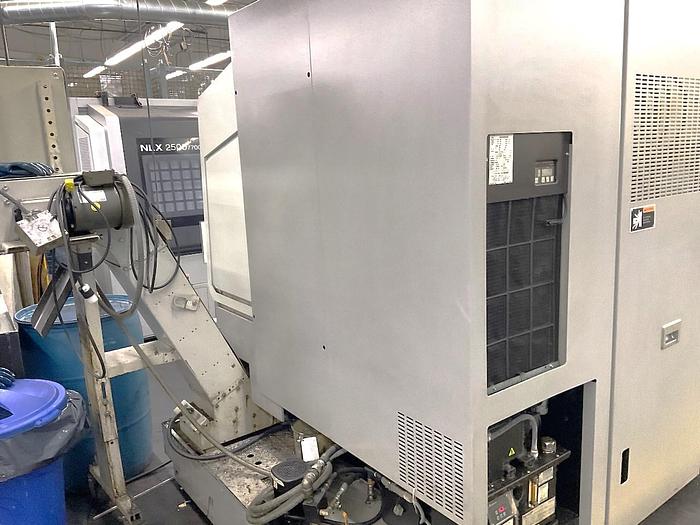

Full C Axis Spindle Rotation Live Milling/Drilling Capability Y Axis Capability Tool Presetter Chip Conveyor
Auto Door

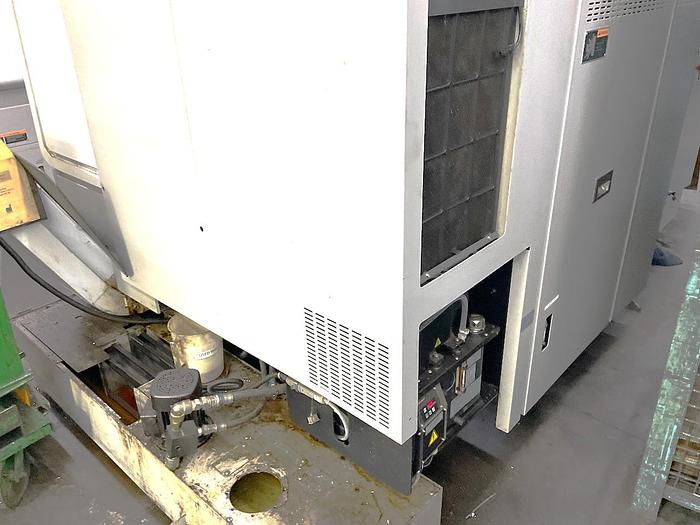

MAPPS IV Hydraulic Actuator and Draw Tube Complete Coolant System with Tank & Pump
Disk Interface RS 232 Port Interface (9) Live Indexable Tool Holders All Available Static Tooling All Available Manuals
**Run Time Hours 9,717**
Specifications
| Manufacturer | DMG Mori |
| Model | NL2500Y/700 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 119686 |

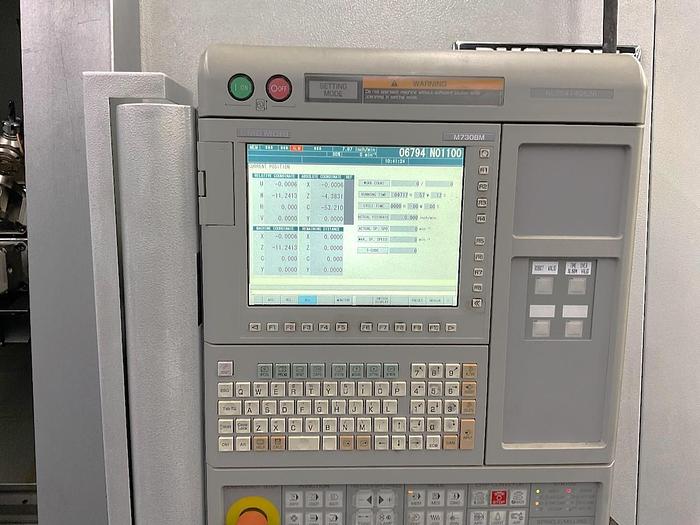

| Control | Mitsubishi M730BM Control |
| Chuck Size | None Included |
| Maximum Swing over Bed | 36.2" |
| Maximum Swing Over Cross Slide | 29.7" |
| Maximum Turning Diameter | 14.4" |
| Maximum Turning Length | 28.6" |
| X-Axis Travel | 10.2" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 29.4" |
| C Axis Spindle Rotation | 0.001 Degree |
| Spindle Nose / Spindle Bore | A2-8" / 3.1" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 34.7 HP |
| Rotary Tool Speed / Rotary Motor | 6,000 RPM / 7.5 HP |

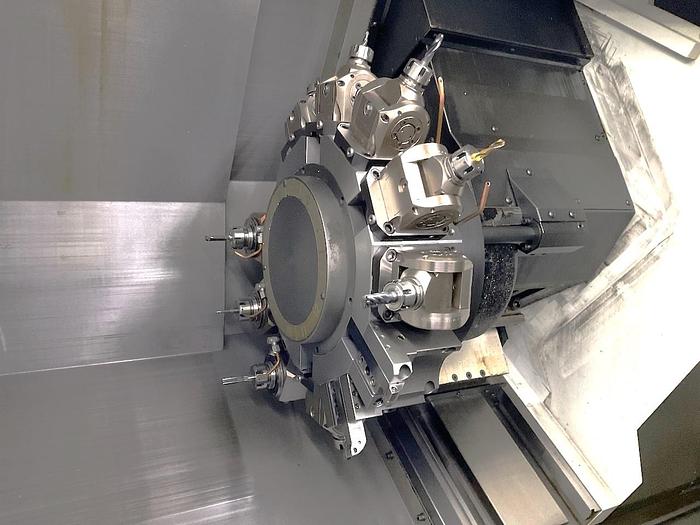

| Number of Tool Positions | 12 Station Turret |
| Rapid Traverse Rates X, Z / Y | 1181 IPM / 394 IPM |
| Machine Dimensions | 145" x 71" x 69" |
| Machine Weight | 13,420 lbs. |
