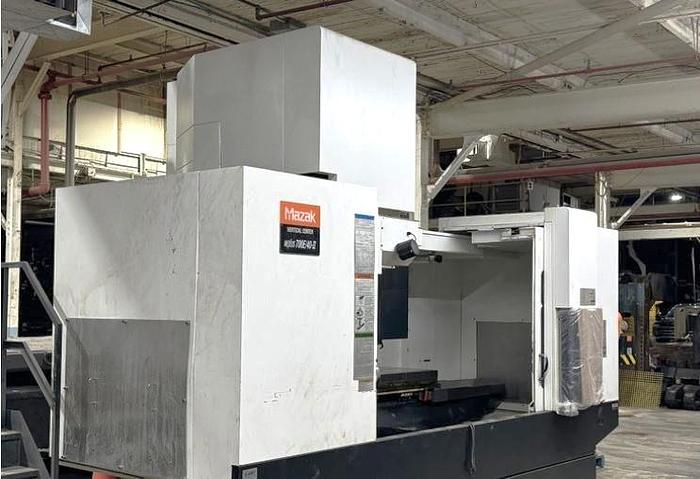

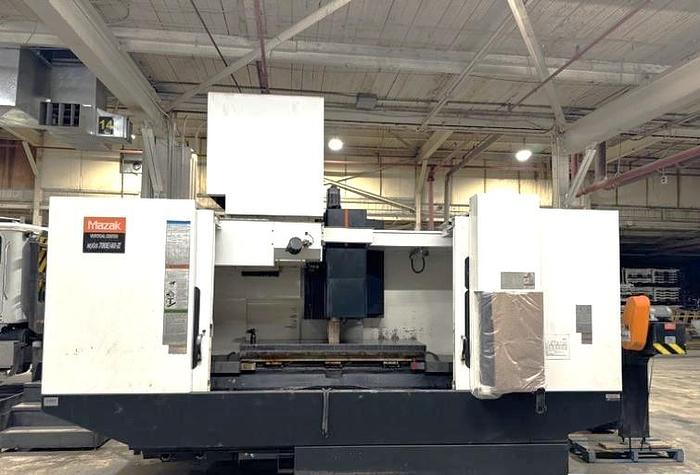

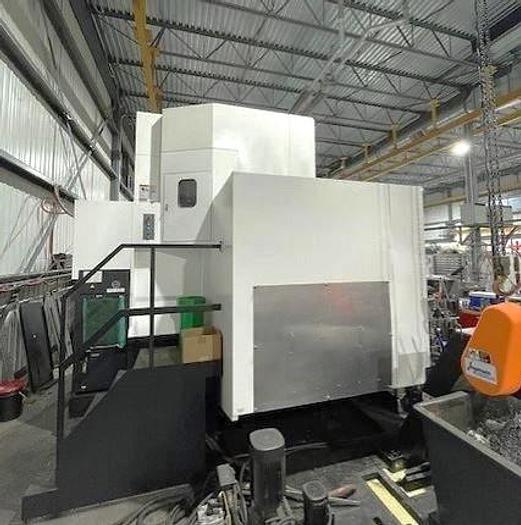

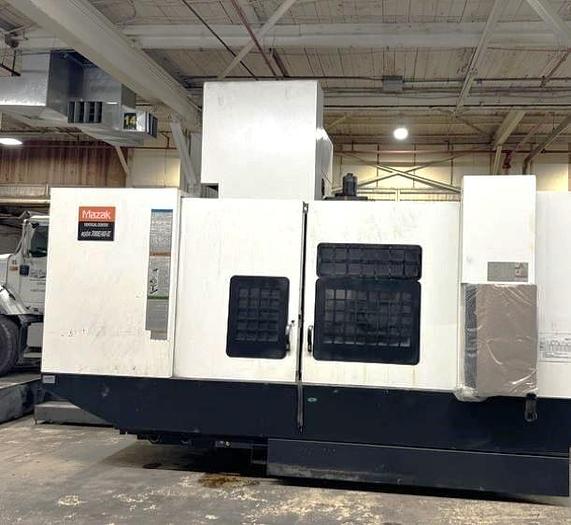

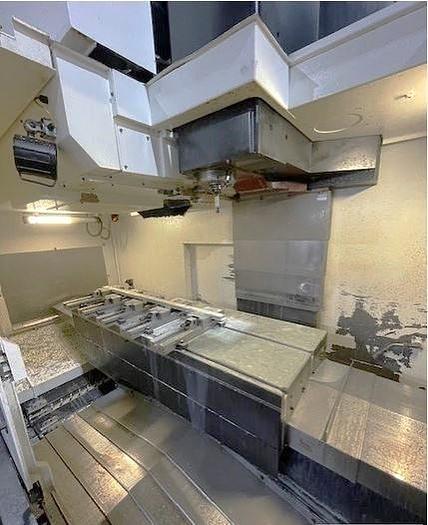

2013 Mazak Nexus VCN 700E/40-II Large 3 Axis VMC

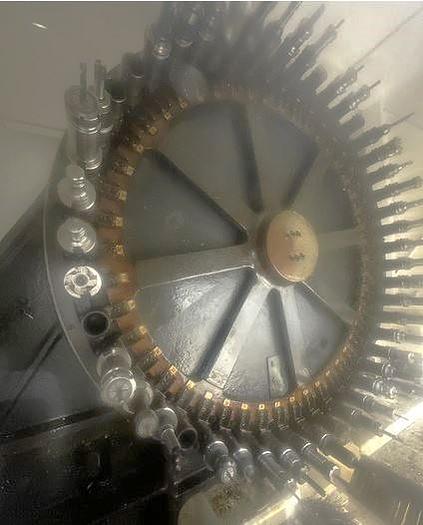

48 Position Side Mounted Tool Changer

Chip Conveyor

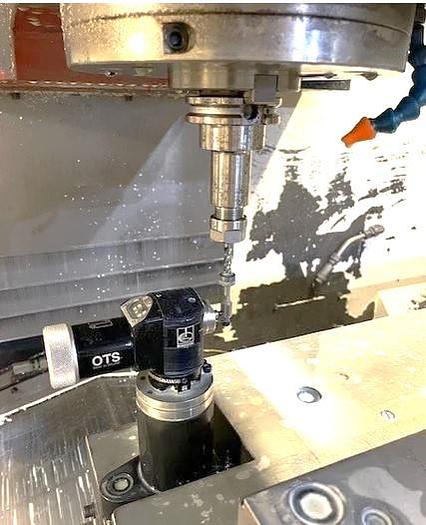

TS27R Automatic Tool Length Measurement Tool Presetter

Renishaw OMP-60 Touch Part Probe

Coolant Through the Spindle - 213 PSI

Remote Jog Handle

EIA/ISO Input Function

EIA 3D Compensation

EIA Helical Tapping Cycle

EIA Pattern Cycle

Pitch Error Compensation

Tilted Work Plane

Variable 600 Sets

G00 Slope Constant

G54.1

Comparison Stop

Polar Coordinates Input

Inverse Time

Shape Compensation

External Data Input-Output

Coordinate Rotation & Scaling

Geometric

Spiral Interpolation

Rigid Tapping

Flood Coolant

Coolant System with Tank & Pump

Mazak 2D Software

PCMCIA 2 Slots USB Port Interface

RS 232 Port Interface

12.1" Color LCD Monitor

All Available Tooling - (25 Pieces Approximately)

Fixture Plate on Table 80" x 27.5" x 3" with T-Slots (2) and Tapped Holes

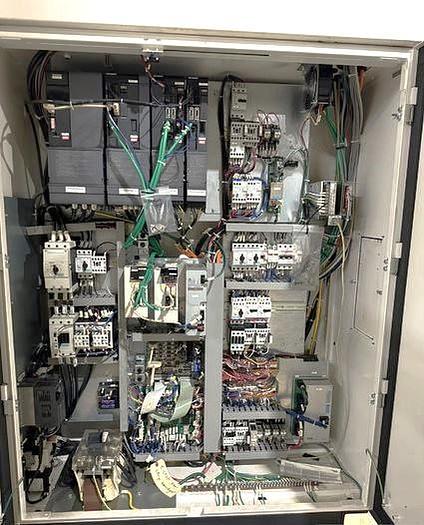

Current Power Requirements 575V Electrics

Digital Manuals on CD

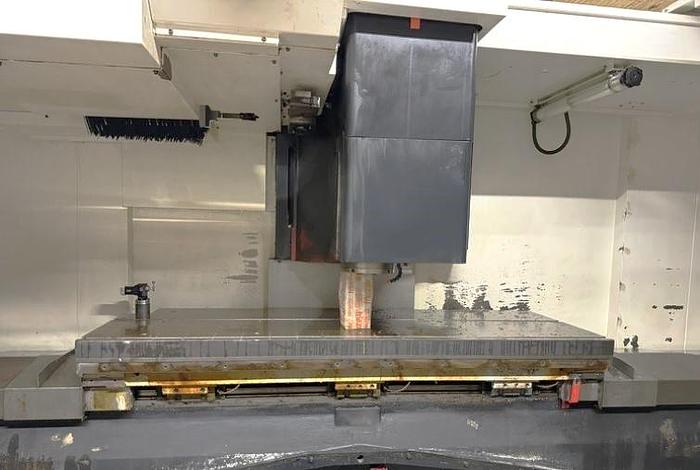

The 2013 Mazak Nexus VCN 700E/40-II is a robust CNC Vertical Machining Center designed for precision and efficiency. It features a large table size of 80" x 27.5", capable of supporting up to 5,511 lbs., making it suitable for handling sizable workpieces. With travels of 80" on the X-axis, 27.5" on the Y-axis, and 25.6" on the Z-axis, it offers substantial reach for various machining tasks. The spindle, equipped with a CAT #40 taper, operates at speeds of up to 12,000 RPM, powered by a 30 HP motor for reliable performance. This machine is equipped with a Mazatrol Matrix Nexus control, facilitating comprehensive functionality and ease of operation. The 48-station tool changer supports efficient tool management with a tool-to-tool change time of just 1.3 seconds, enhancing throughput. The rapid traverse rates are impressive at 1182 IPM for the X and Y axes and 790 IPM for the Z axis, with cutting feedrates matching the rapid traverse in X and Y. In terms of structure, the machine measures 198" x 139" x 143" and weighs 31,500 lbs., indicating a solid build to support demanding machining environments. With high spindle torque of 222.7 ft./lbs., it delivers substantial cutting power, catering to a variety of industrial applications. Overall, the Mazak Nexus VCN 700E/40-II is engineered to deliver high productivity and precision machining in a compact and efficient package.
