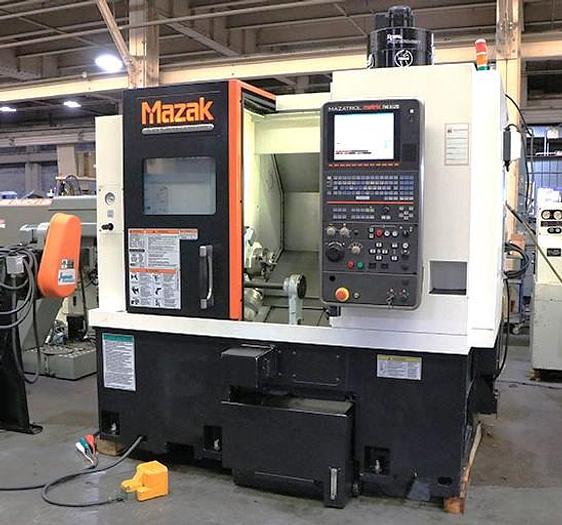

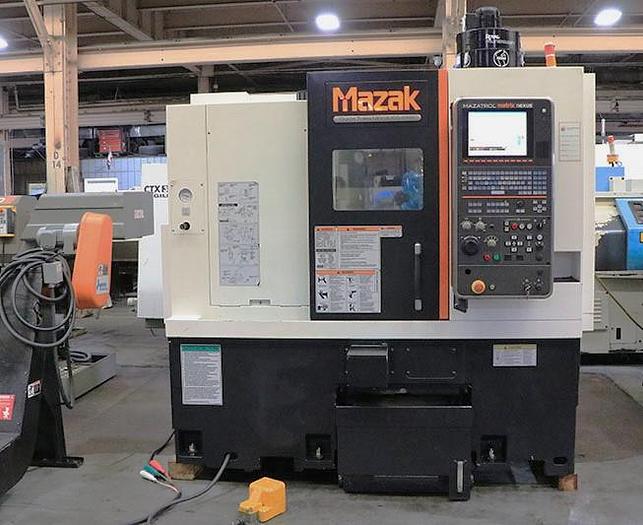

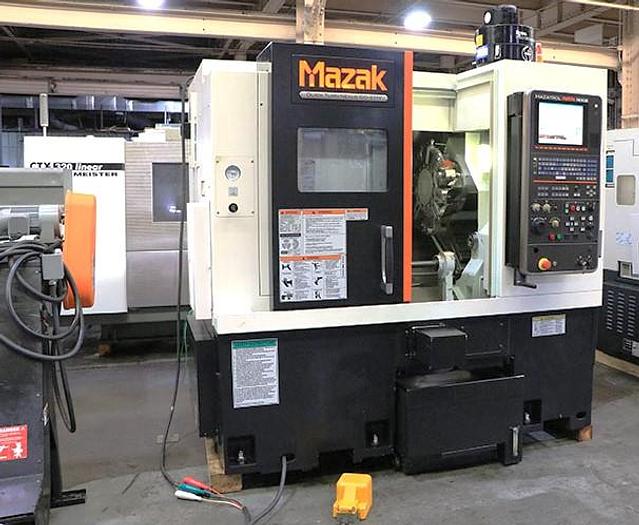

2011 Mazak Nexus QTN 100-II MY with Milling and Y Axis
2011 Mazak Nexus QTN 100-II MY with Milling and Y Axis
Contact us for price
Location:New Jersey
Description
Full C Axis Spindle Rotation

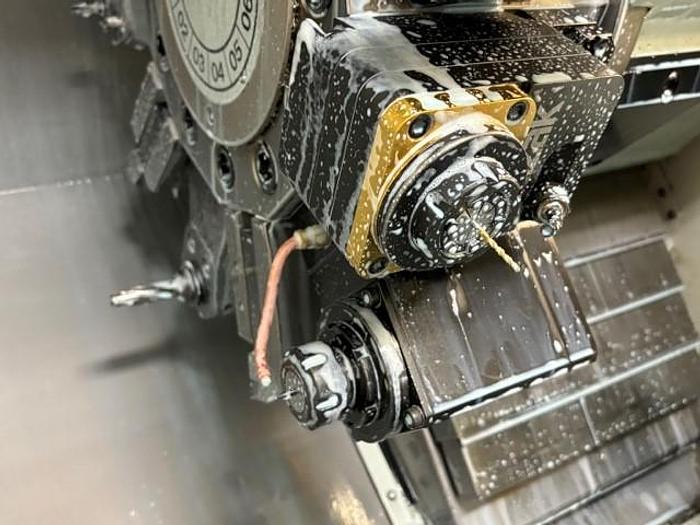

Live Milling / Drilling Capability
Y Axis Capability

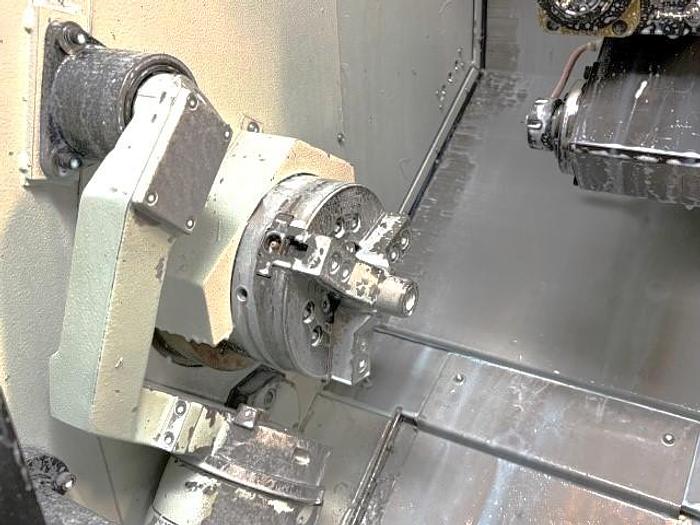

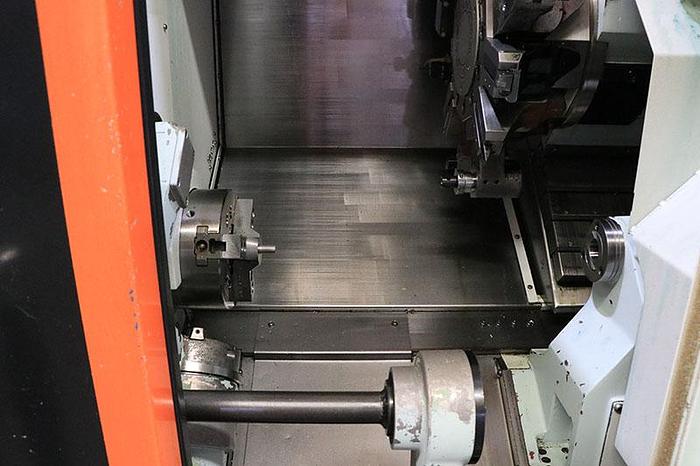

6" 3 Jaw Hydraulic Chuck

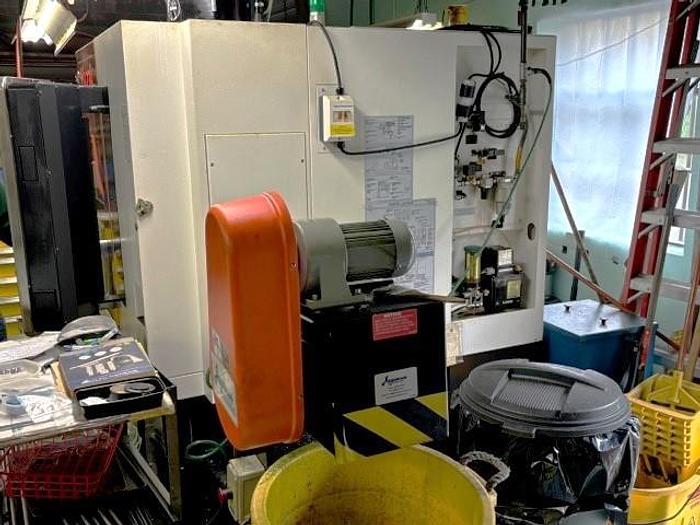

Chip Conveyor
Automatic Parts Catcher Automatic Tool Eye

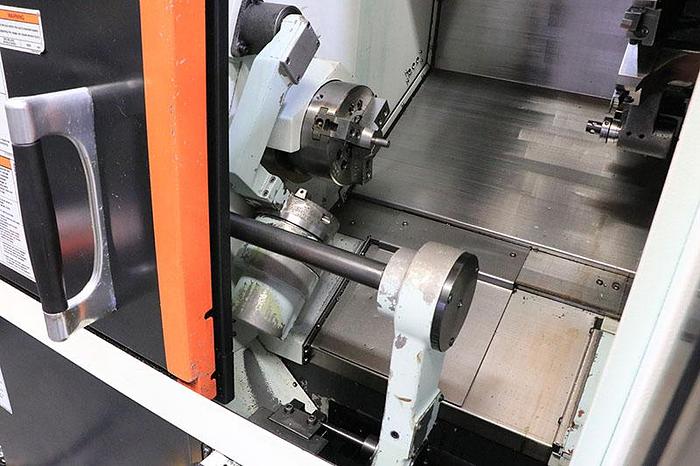

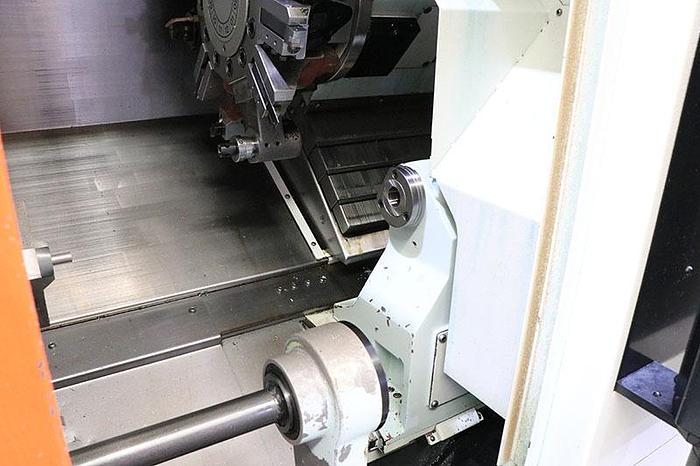

Tailstock
Background Tool Path Check
Milling Spindle Synchronous Tapping
Automatic Chuck Jaws Open/Close
Chuck Air Blast

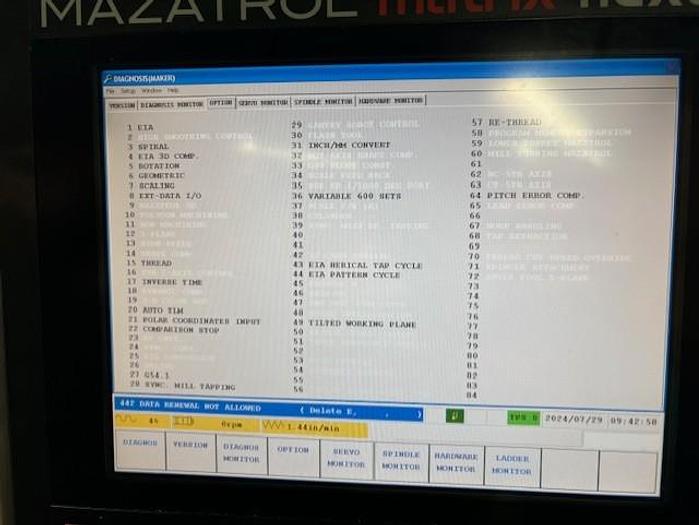

EIA ISO Input Function
EIA 3D Compensation
EIA Helical Tapping
EIA Pattern Cycle
Threading
Re-Threading
Inch/MM Conversion
Variable 600 Sets
Pitch Error Compensation
G54.1
Comparison Stop
Polar Coordinates Input
Inverse Time
External Data Input/Output
Coordinate Rotation & Scaling
Geometric
Spiral Interpolation Complete Coolant System w/ Tank & Pump
Memory Card Interface
Network Interface
3.5" Floppy Disk Drive Interface RS 232 Port Interface Multi Tap Transformer
Currently Wired at 400V Electrics All Available Tooling Both Live and Static
All Available Manuals
**Manufactured New in November of 2011**

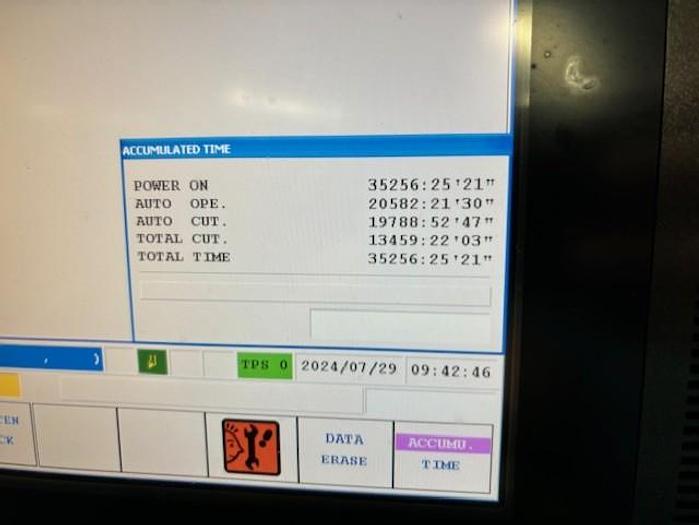

**Total Cutting Hours 13,549**
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 100-II MY |
| Year | 2011 |
| Condition | Used |
| Stock Number | 119681 |

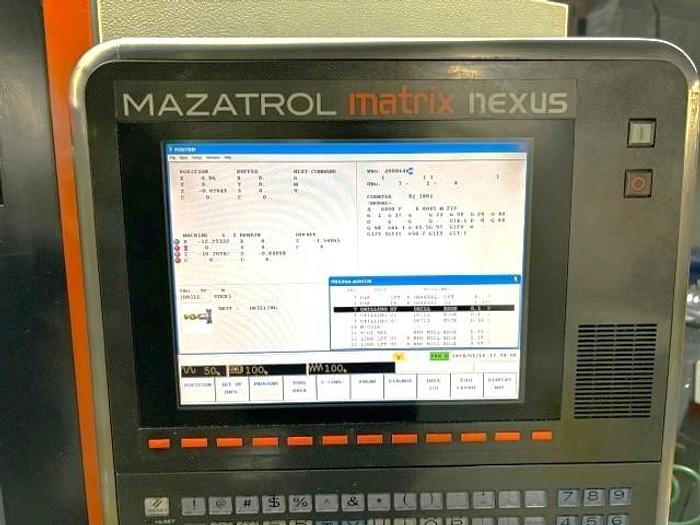

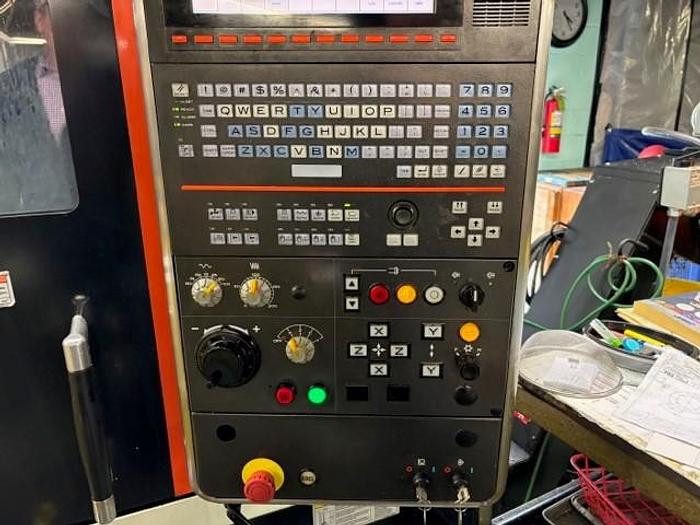

| Control | Mazatrol Matrix Nexus Control |
| Chuck Size | 6" 3 Jaw Hydraulic |
| Maximum Swing | 21.6" |
| Maximum Cutting Diameter | 11" |
| Maximum Cutting Length | 13.15" |
| Maximum Bar Capacity | 2" |
| X-Axis Travel | 7.25" |
| Y-Axis Travel | +/- 2" (4" total) |
| Z-Axis Travel | 15.125" |
| Spindle Nose / Spindle Bore | A2-5" / 2.4" |
| Spindle Speeds | 6,000 RPM |
| Spindle Motor | 15 HP |
| Live Tooling Speed / Live Tooling Motor | 4,500 RPM / 7.5 HP |

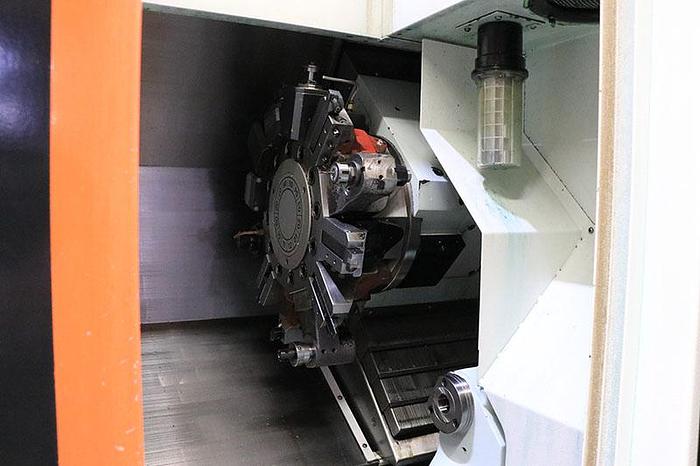

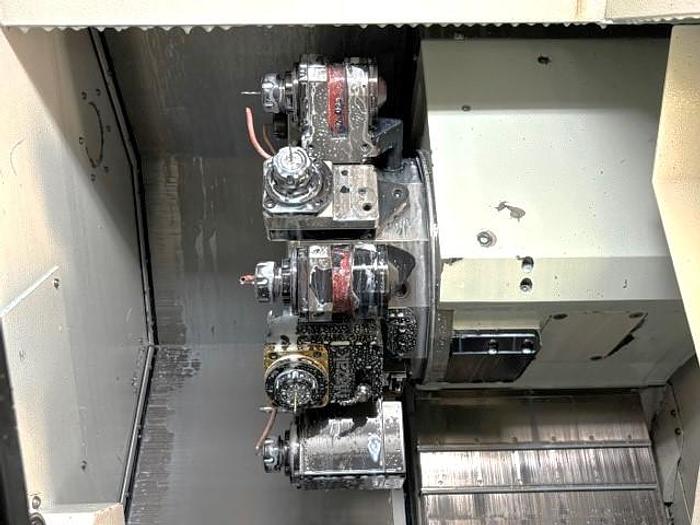

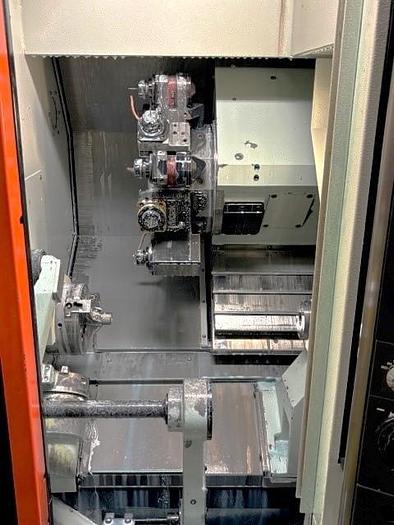

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X / Z | 1181 IPM / 1299 IPM |
| Tailstock Body Travel / Center | 13.75" / MT #4 |
| Machine Dimensions | 92" x 65" x 76" machine only |
| Machine Weight | 9,000 lbs. |
