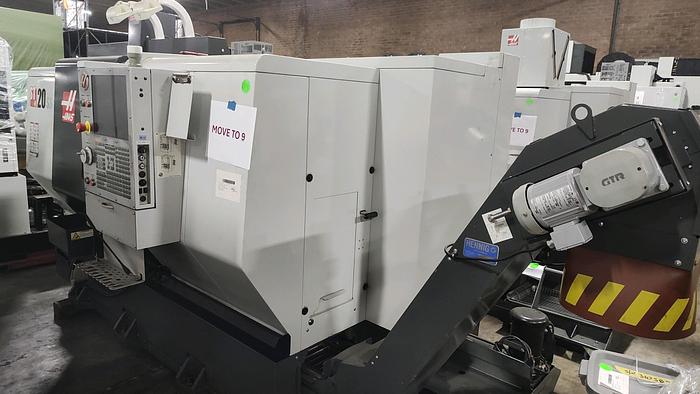

2013 Haas ST-20SS
2013 Haas ST-20SS
Contact us for price
Location:North Carolina
or
Call (863) 439-6066
Description
Tool Presetter
Parts Catcher
High-Intensity Lighting
Chip Conveyor
Tailstock
360/480 Volts 3-Phase
Full Load 40 Amps
Specifications
| Manufacturer | Haas |
| Model | ST-20SS |
| Year | 2013 |
| Condition | Used |
| Stock Number | 119674 |
| Chuck size | 8" 3-Jaw Hydraulic |
| X-axis travel | 9.3" |
| Z-axis travel | 21" |
| Center distance | 24" |
| Maximum turning diam. / length | 10" / 21" |
| Spindle nose / spindle bore | A2-6" / 3.5" |
| Maximum bar capacity | 2.0" |
| Maximum swing over bed/cross slide | 31.75" / 20.75" |
| Spindle speed | 5,000 RPM |
| Spindle motor | 30 HP |
| Turret type | 24 Position Hybrid Trt |
| Rapid traverse rates x / z | 945 IPM / 1200 IPM |
| Tailstock taper / travel | MT #4 / 20" |
| Machine dimensions | 126.5" x 62" x 72" |
| Machine weight | 9,000 lbs. |
