2013 Haas ES-5-4T
2013 Haas ES-5-4T
Contact us for price
Location:North Carolina
Description

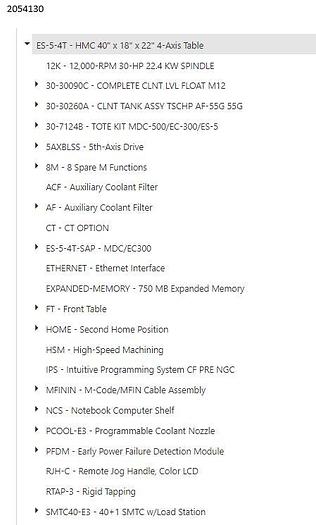

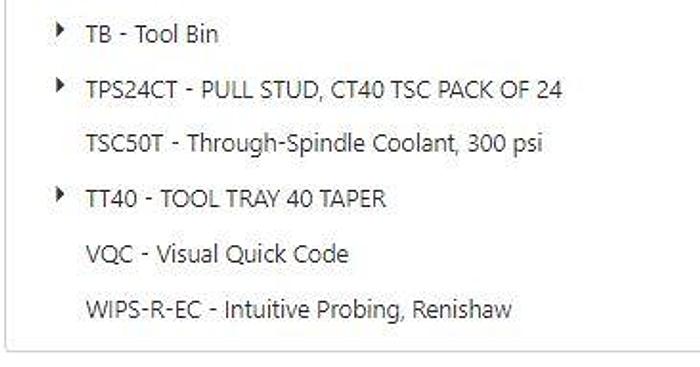

WIPS Renishaw Part & Tool Probe
Programmable Coolant Nozzle
Thru the Spindle Coolant 300 psi
12k rpm Spindle
30 HP Spindle Motor
Wired for 4th/5th Axis

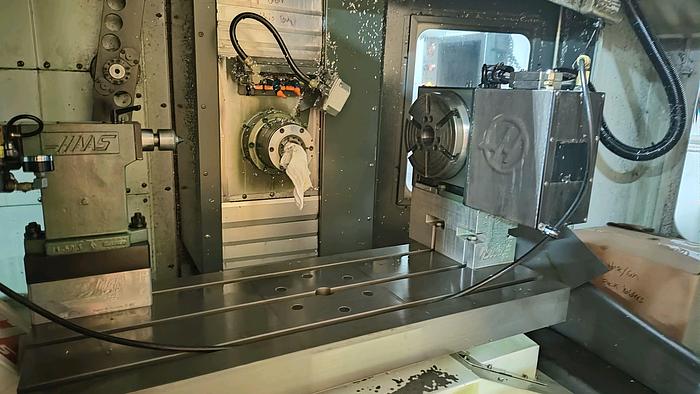

HRT-310 Rotary Table w/Tailstock
8 Spare M Functions
Auxiliary Coolant Filter
Ethernet
750MB Expanded Memory
Second Home Position
Intuitive Programming System
Visual Quick Code
Early Power Failure Detection Module

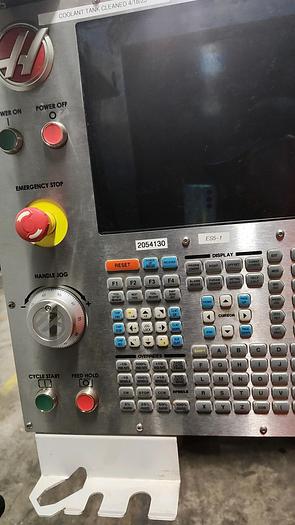

Color Remote Jog Handle
Rigid Tapping
40+1 ATC
Riser Blocks for Rotary Table

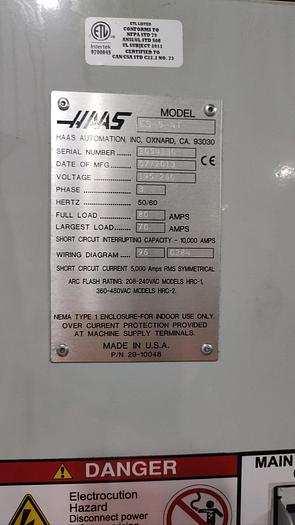

195/260 volts
Cost over $175k when purchased new
**There are three identical machines the pictures might not be the actual ones (1) 2012 & (2) 2013's**
The table that rotates has a bad encoder that needs to be repaired/replaced
Specifications
Manufacturer | Haas |
Model | ES-5-4T |
Year | 2013 |
Condition | Used |
Stock Number | 119672 |
Table Size | 52"x20" |
Maximum Weight on Table | 625 lbs |
X-Axis Travel | 40" |
Y-axis travel | 18" |
Z-Axis Travel | 22" |
Tool Magazine Capacity | 24 atc |
Spindle Speed | 12,000 rpm |
Spindle Motor | 30 hp |
Spindle Taper | CAT 40 |
Rapid Traverse Rates X, Y / Z | 1,000 IPM / 710 IPM / 500 IPM |
Machine Dimensions LxWxH | 155"x150"x94" |
Machine Weight | 14,000 lbs |
