2013 Haas ES-5-4T

Sold
2013 Haas ES-5-4T
Location:North Carolina

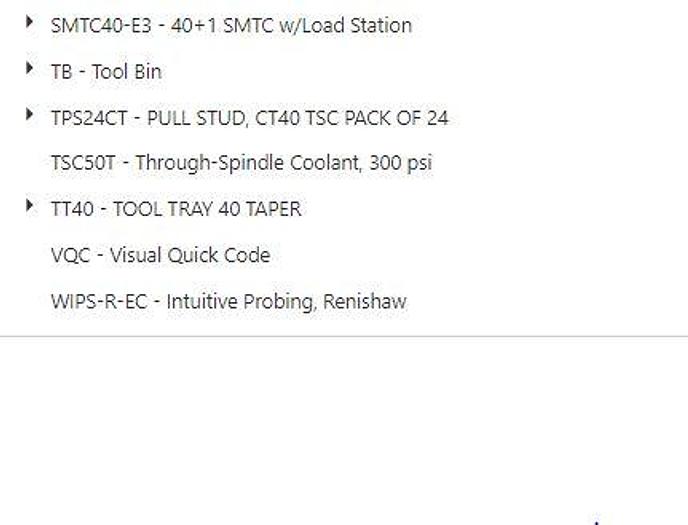

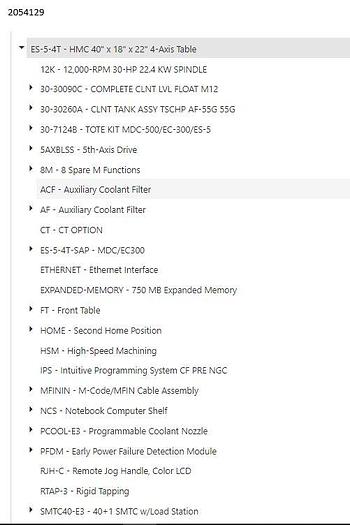

Description
40"x18"x22" 4-Axis Table
WIPS Renishaw Part & Tool Probe
Programmable Coolant Nozzle
Thru the Spindle Coolant 300 psi
12k rpm Spindle
30 HP Spindle Motor
Wired for 4th/5th Axis
HRT-210 Rotary Table w/Tailstock
8 Spare M Functions
Auxiliary Coolant Filter
Ethernet
750MB Expanded Memory
High-Speed Machining
Second Home Position
Intuitive Programming System
Visual Quick Code
Early Power Failure Detection Module
Notebook Computer Shelf
Color Remote Jog Handle
Rigid Tapping
40+1 ATC
Riser Blocks for Rotary Table
195/260 volts
Cost over $175k when purchased new
**There are three identical machines the pictures might not be the actual ones (1) 2012 & (2) 2013's**
The table that rotates has a bad encoder that needs to be repaired/replaced
Specifications
| Manufacturer | Haas |
| Model | ES-5-4T |
| Year | 2013 |
| Condition | Used |
| Stock Number | 119671 |
| Table Size | 52"x20" |
| Maximum Weight on Table | 625 lbs |
| X-Axis Travel | 40" |
| Y-axis travel | 18" |
| Z-Axis Travel | 22" |
| Tool Magazine Capacity | 24 atc |
| Spindle Speed | 12,000 rpm |
| Spindle Motor | 30 hp |
| Spindle Taper | CAT 40 |
| Rapid Traverse Rates X, Y / Z | 1,000 IPM / 710 IPM / 500 IPM |
| Machine Dimensions LxWxH | 124"x122"x94" |
| Coolant Pan | 78"x28"x26" |
| Machine Weight | 14,000 lbs |
