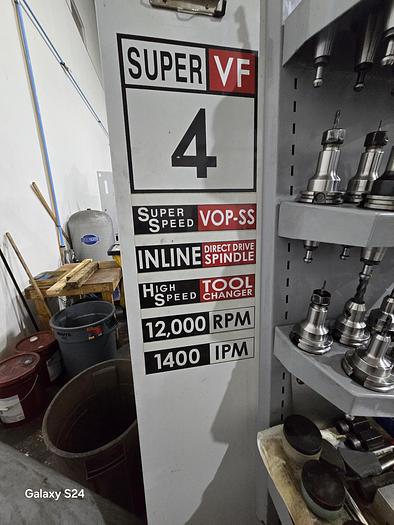

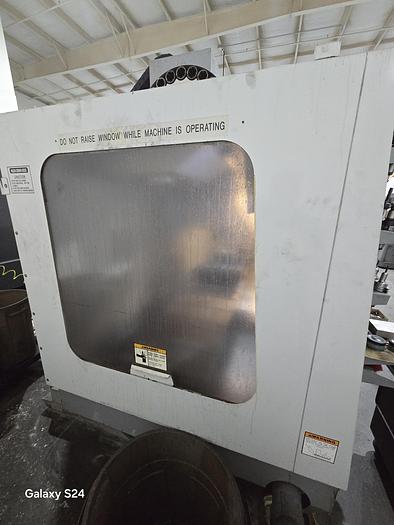

2003 Haas VF-4SS
2003 Haas VF-4SS
Contact us for price
Location:Florida
orCall (863) 439-6066
Description
30+1 Position Side Mounted Tool Changer
Auger Style Chip Conveyor
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Programmable Coolant Nozzle
High Intensity Lighting
Rigid Tapping
Coolant Tank with Pump
Inline Direct Drive 12,000 RPM Spindle
External High Voltage Transformer
Wired 230V Electrics
Ethernet Interface
USB Port Interface
RS 232C Port Interface for DNC Operation
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | VF-4SS |
| Year | 2003 |
| Condition | Used |
| Stock Number | 119655 |
| Table size | 52" x 18" |
| Max table load | 1,750 lbs |
| X axis travel | 50" |
| Y axis travel | 20" |
| Z axis travel | 25" |
| Spindle taper | #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4.2" - 29.2" |
| Number of tool positions | 30 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 152" x 99" x 106" |
| Machine weight (approximately) | 13,800 lbs. |
