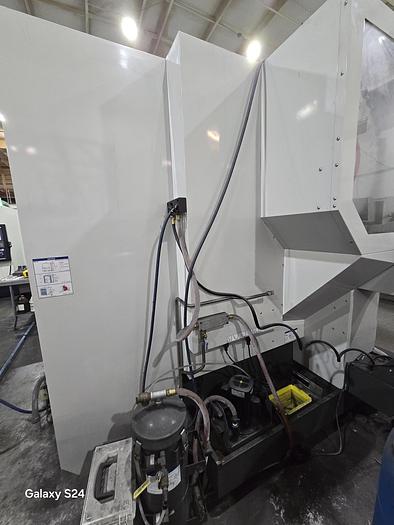

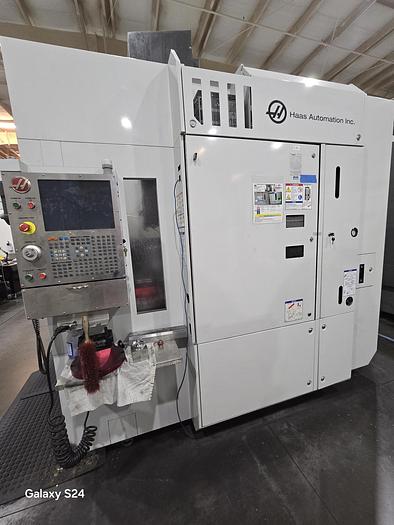

2018 Haas UMC-750
2018 Haas UMC-750
Contact us for price
Location:Florida
orCall (863) 439-6066
Description
Trunnion Style 5th Axis Table
Coolant Through the Spindle - 300 PSI
40 Station Side Mounted Tool Changer
Renishaw Probing with both Part and Tool Probe Included (WIPS)
Spindle Orientation
User Definable Macros
Coordinate Rotation & Scaling
Haas Intuitive Programming System
8,100 RPM Spindle
Chip Conveyor - Belt Style
Second Home Button
Rigid Tapping
Color Remote Jog Handle
Early Power Failure Detection Module
1 GB Expanded Programming Memory
15" Color LCD Monitor
WIFI Connectivity Option for Haas Control and Local Network
Haas Connect
USB Port Interface
RS 232 Port Interface
Memory Key Lock Switch
Flood Coolant System with 75 Gallon Tank & Pump
Wired 220V Electrics
Specifications
Manufacturer | Haas |
Model | UMC-750 |
Year | 2018 |
Condition | Used |
Stock Number | 119654 |
Table size | 19.7" Diameter |
Table load capacity | 660 lbs |
X axis travel | 30" |
Y axis travel | 20" |
Z axis travel | 20" |
B axis rotate of trunnion | 110 Deg to -35 Deg |
C axis table rotation | 360 Degrees |
Spindle motor | 30 HP |
Spindle speed | 12,000 RPM Option |
Spindle taper | CAT 40 |
Tool magazine | 40 +1 |
Maximum feed rates | 650 IPM |
Rapid traverse rates | 1200 IPM |
Machine dimensions | 157"x94"x101" |
Machine weight | 19,100 lbs |
