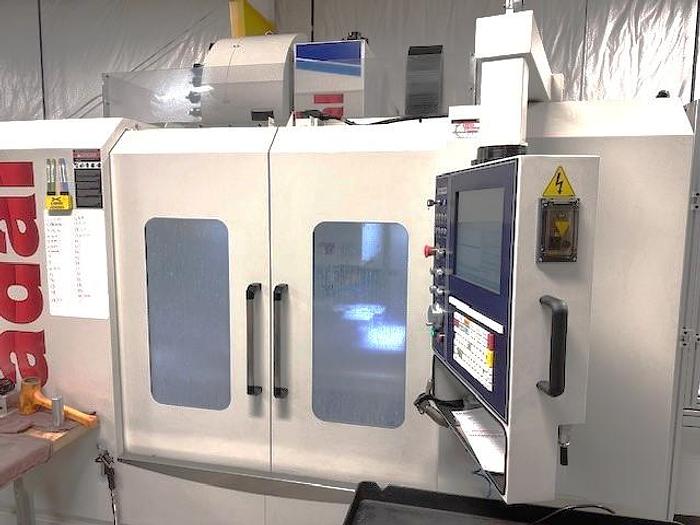

2019 Fadal VMC 4020B-II with Factory 2 Pallet Changer

2019 Fadal VMC 4020B-II with Factory 2 Pallet Changer

$96,500 (USD)

Location:Michigan

or
Call (863) 439-6066

Description

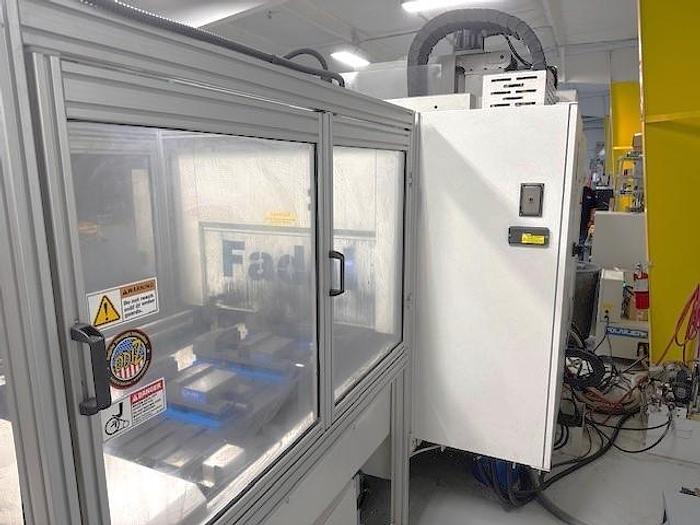

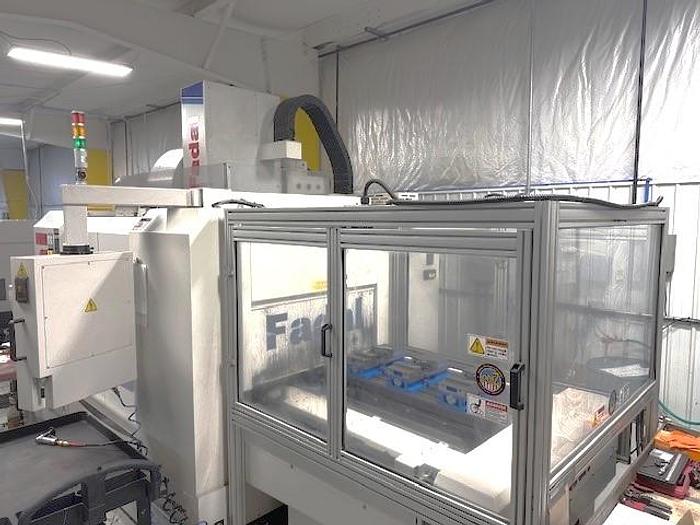

2 Pallet Factory/OEM Changer System

Coolant Through the Spindle

Spindle Oil Cooler

24 Station Side Mounted Tool Changer

Chip Conveyor

Spindle Air Blast

Rigid Tapping

3 Color Machine Status Condition Lights

Complete Coolant System with Tank & Pump

Boxed Ways

USB Port Interface

RS 232 Port Interface

All Available Manuals

Wired 208V Electrics


**Purchased New in 2021**

Show All

Specifications

ManufacturerFadal
ModelVMC 4020B-II
Year2019
ConditionUsed
Stock Number119642
Machine ControlFadal 64 MP CNC Control
Table Size47.25" x 19.75"
Maximum Table Load1,320 lbs
X-Axis Travel40"
Y-Axis Travel20"
Z-Axis Travel20"
Distance Spindle Nose to Table Top5" to 25"
Spindle TaperCAT 40
Spindle Speed10,000 RPM
Spindle Motor15/22.5 HP
Tool Magazine Capacity24 Station Side Mounted Tool Changer
Rapid Traverse Rates1,000 IPM
Machine Weight11,770 lbs
