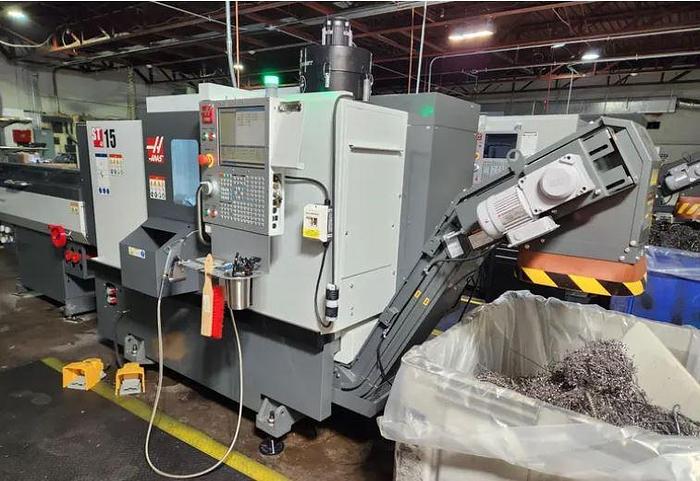

2023 Haas ST-15 with tailstock
2023 Haas ST-15 with tailstock
$64,500 (USD)
Location:Arizona
orCall (863) 439-6066
Description
Parts Catcher
Chip Conveyor
Tailstock
Tool Presetter
8.3" 3 Jaw Hydraulic Chuck
Haas Barfeed System
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
All Available Tooling

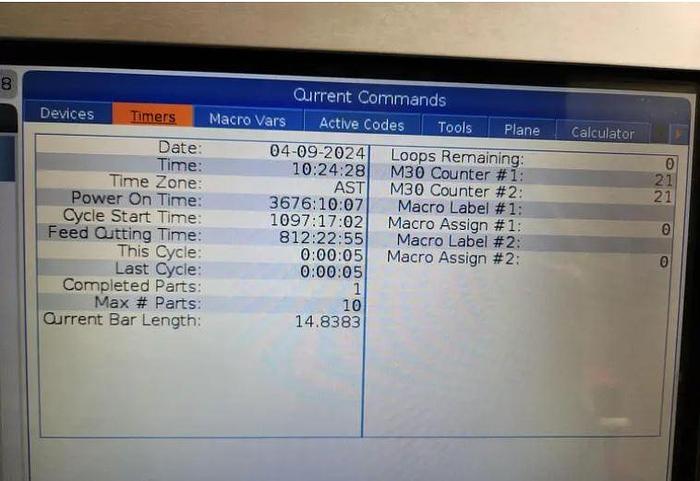

**Power On Hours 3,676**
**Cycle Start Hours 1,097**
**Feed Cutting Hours 812**
Specifications
| Manufacturer | Haas |
| Model | ST-15 |
| Year | 2023 |
| Condition | Used |
| Stock Number | 119639 |
| Chuck Size | 8.3" 3 Jaw Hydraulic Chuck |
| Maximum Swing | 16.5" |
| Maximum Cutting Diameter | 12" |
| Maximum Cutting Length | 16" |
| X-Axis Travel | 7.9" |
| Z-Axis Travel | 16" |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-6" / 3" / 2.5" |
| Spindle Speed | 4,000 RPM |
| Spindle Motor | 20 HP |

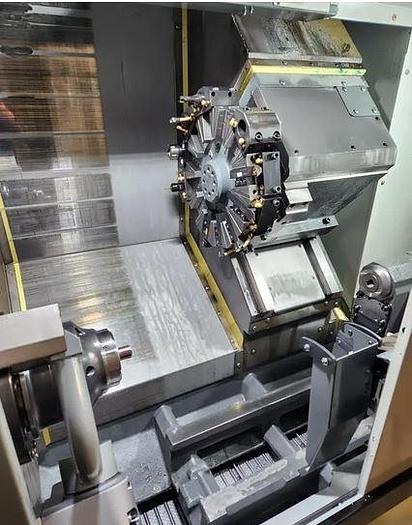

| Number of Turret Positions | 12 Position Block Turret |
| Rapid Traverse Rates | 1,200 IPM |
| Tailstock Quill Travel | 3.8" |
| Tailstock Center | MT#3 |
| Machine Weight | 7,900 lbs |
