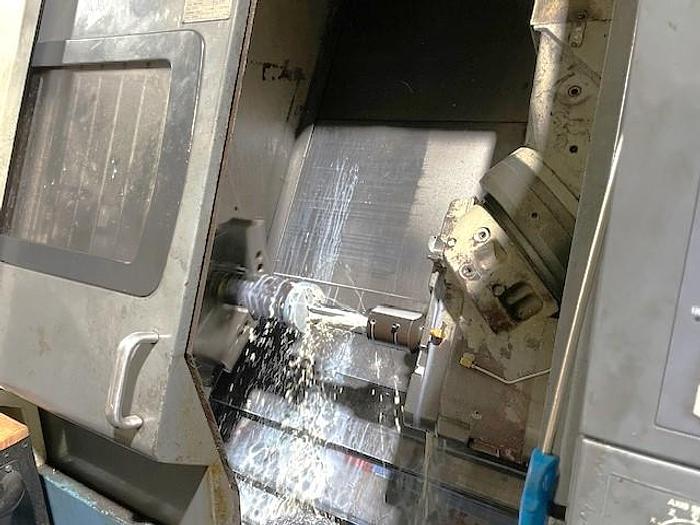

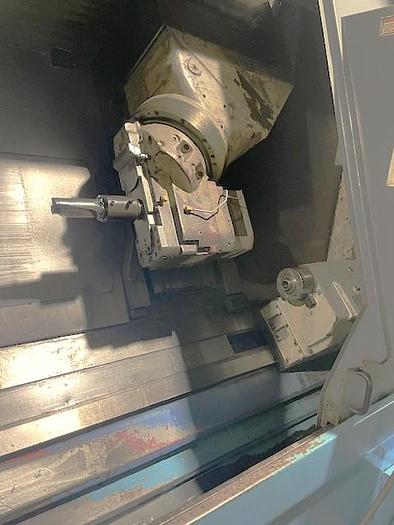

1997 Mazak Integrex 35Y/1000 Mill/Turn Center
1997 Mazak Integrex 35Y/1000 Mill/Turn Center
Contact us for price
Location:Oklahoma
orCall (863) 439-6066
Description
12" 3 Jaw Hydraulic Chuck
Full C-Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability
Chip Conveyor
20 Station Tool Changer (10 Milling/10 Turning)
Automatic Tool Eye
Tailstock with Hydraulic Quill
EIA/ISO Input Function
Coolant Through the Mill Head
Tool Life Monitoring
Complete Coolant System with Tank & Pump
RS-232C Port for DNC Interface
All Available Manuals
Wired 230V Electrics
Specifications
| Manufacturer | Mazak |
| Model | Integrex 35Y/1000 |
| Year | 1997 |
| Condition | Used |
| Stock Number | 119637 |

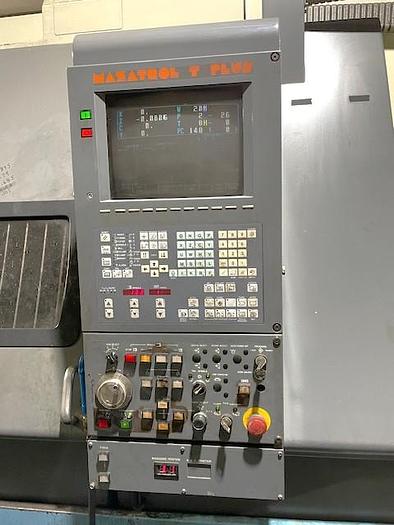

| Machine Control | Mazatrol T-Plus Control |
| Chuck Size | 12" 3 Jaw Hydraulic Chuck |
| Maximum Swing | 22.5" |
| Maximum Swing Over Carriage | 8.6" - 18.5" Depending on workpiece length |
| Maximum Turning Diameter | 22.5" |
| Maximum Cutting Length | 41.1" |
| X-Axis Travel | 17.75" |
| Y-Axis Travel | +/- 3.5" |
| Z-Axis Travel | 40.1" |
| C-Axis Rotation | 0.001 Degree |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 3.46" / 3.03" |
| Spindle Speed | 35 - 3,000 RPM Stepless |
| Spindle Motor | 40 HP |
| Milling Spindle Speed | 15- 6,000 RPM |
| Milling Spindle Motor | 10 HP |
| Number of Turret Positions | 2 Station Turret |
| Tool Magazine Capacity | 20 Position Tool Changer - KM63 and CAT40 |
| Rapid Traverse Rates (X, Y, Z) | 1181 IPM, 590 IPM, 1181 IPM |
| Tailstock Quill Diameter / Center | 3.94" / MT #5 |
| Tailstock Body Travel / Quill Travel | 35.5" / 5.12" |
| Machine Dimensions LxWxH | 216" x 90" x 119" |
| Machine Weight | 19,400 lbs |
