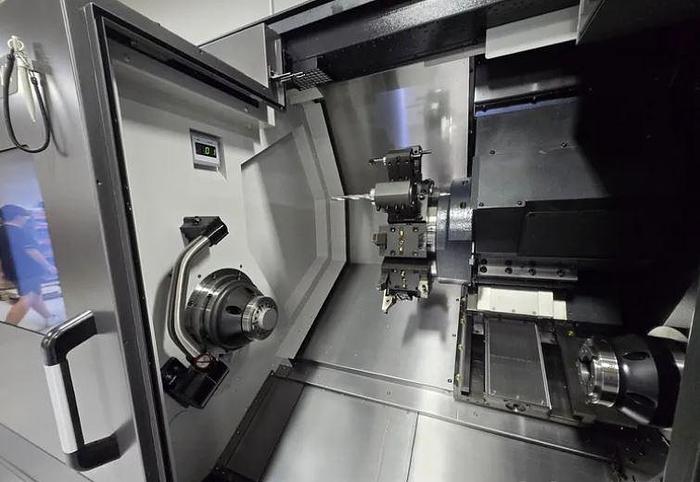

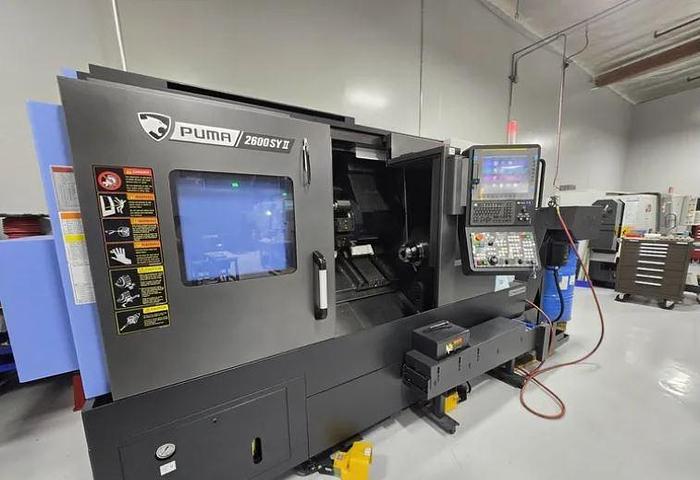

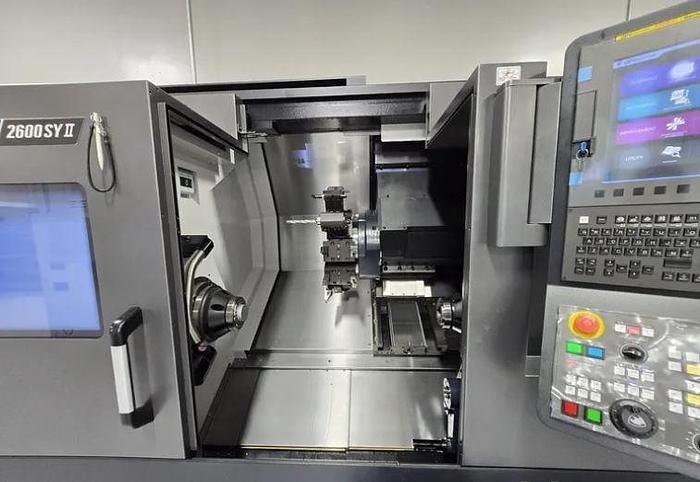

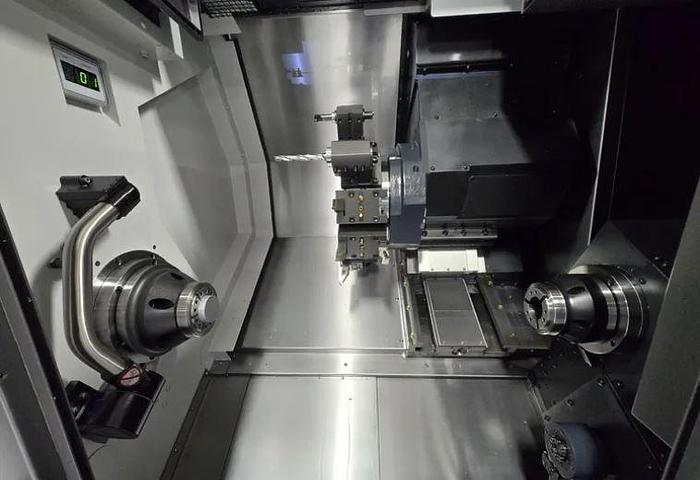

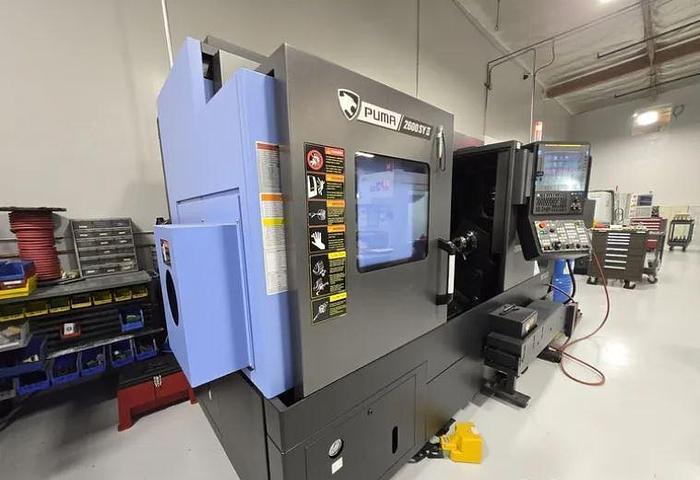

2022 Doosan Puma 2600SY II
2022 Doosan Puma 2600SY II
$195,000 (USD)
Location:Florida
orCall (863) 439-6066
Description

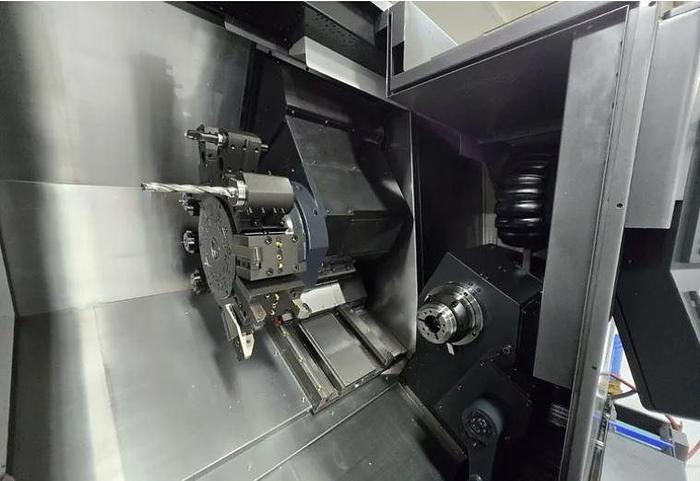

Full C Axis Spindle Rotation - Both
Live Milling/Drilling Capability
Subspindle Y Axis Capability
Barfeed Interface

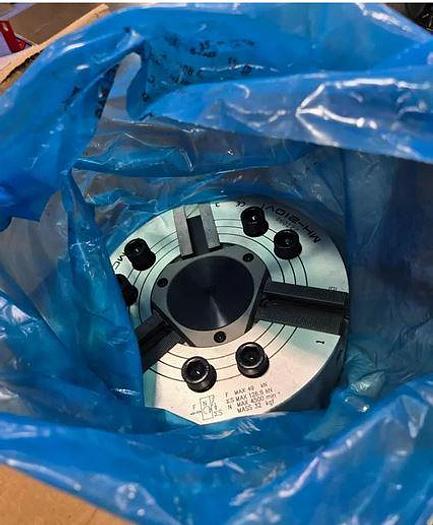

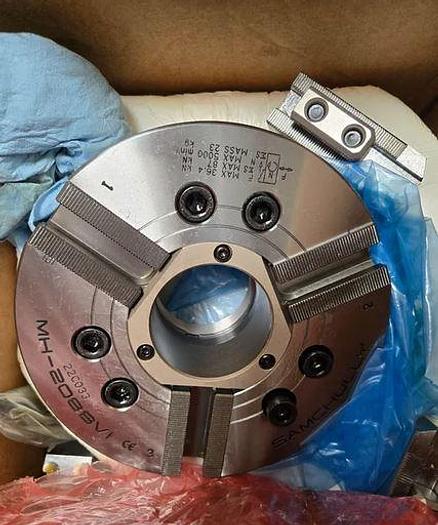

10" 3 Jaw Hydraulic Chuck on Main Spindle
8" 3 Jaw Hydraulic Chuck on Subspindle
Royal QG-80 Collet Chuck for Main Spindle
Royal QG-65 Collet Chuck for Subspindle
Tool Presetter
Chip Conveyor
Parts Catcher
Parts Exit Conveyor
PCMCIA Card Interface Ethernet Interface RS 232 Port Interface Boxed Ways

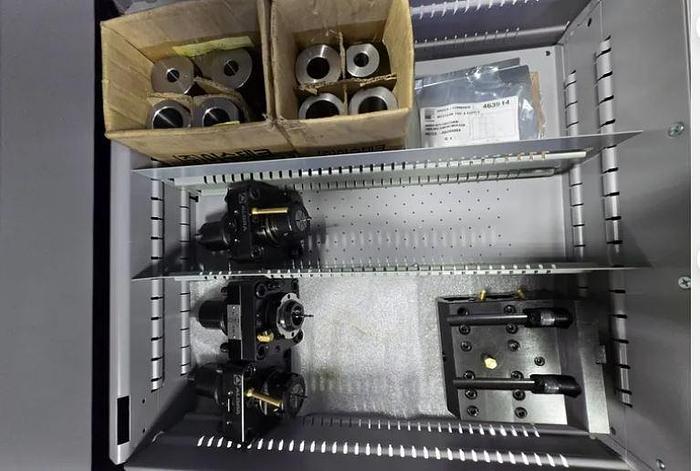

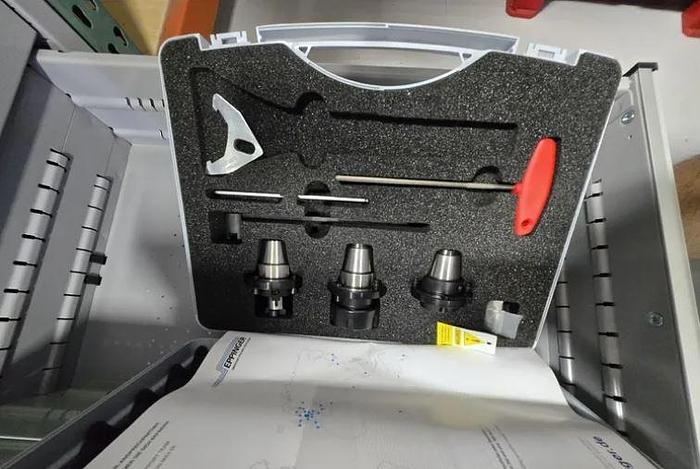

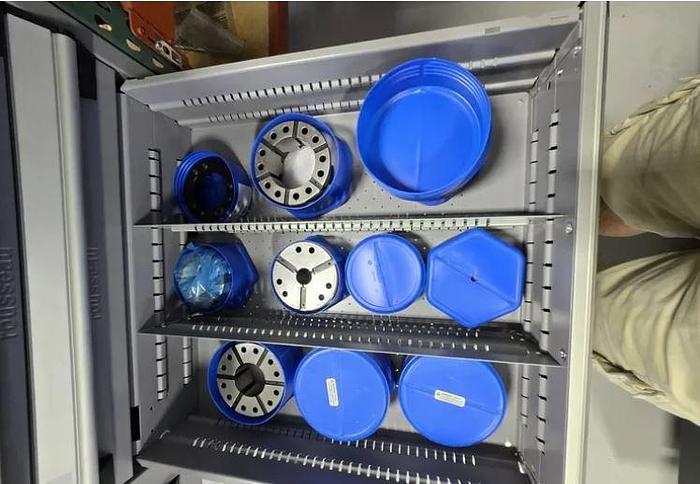

Miscellaneous Collets (8) Live Tool Holders

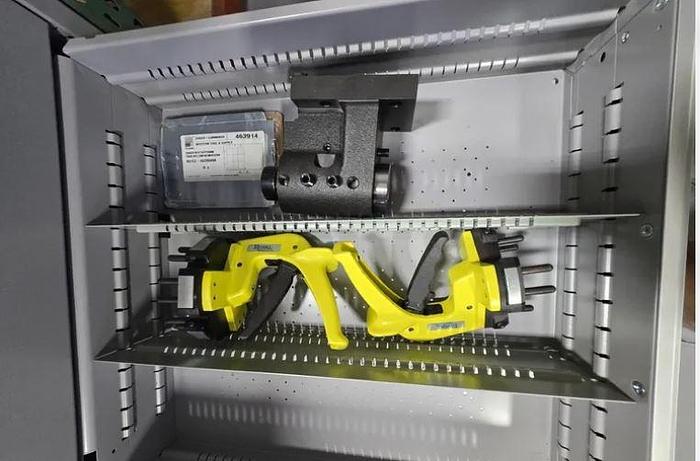

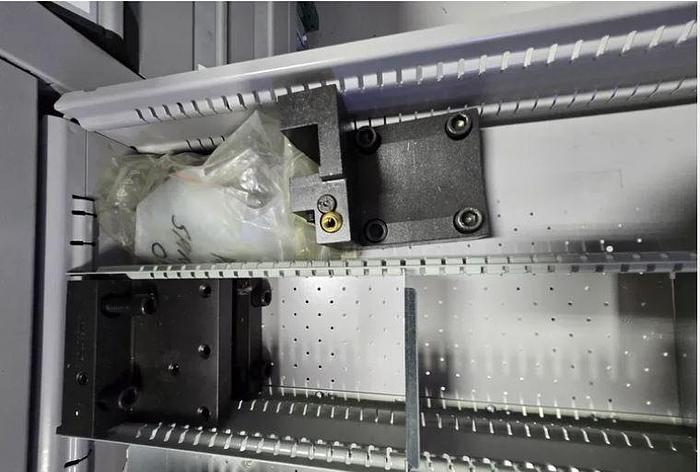

Assortment of Static Tool Holders
Specifications
| Manufacturer | Doosan |
| Model | Puma 2600SY II |
| Year | 2022 |
| Condition | Used |
| Stock Number | 119636 |

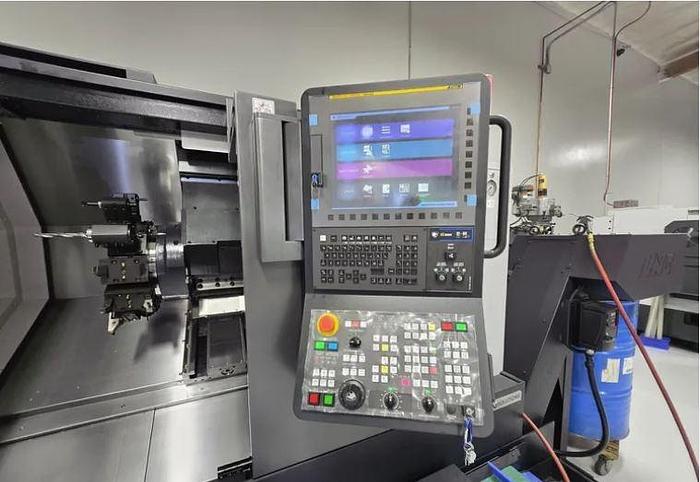

| Control | Fanuc 0i Series Control |
| Chuck Size | 10" 3-Jaw Main Spindle / 8" 3-Jaw Subspindle |
| Maximum Swing over Bed | 30.7" |
| Maximum Cutting Diameter | 14.8" |
| Maximum Machining Length | 29.9" |
| Maximum Bar Capacity | 3" Main Spindle / 2" Subspindle |
| X-Axis Travel | 10.2" |
| Y-Axis Travel | 4.13" |
| Z-Axis Travel | 32.7" |
| C Axis Spindle Rotation - Both | .001 Degree |
| Spindle Nose / Spindle Bore | A2-8" Main Spindle / A2-5" Subspindle / 3.6" Main Spindle Bore / 2.4" Subspindle Bore |
| Spindle Speeds - Main | 4,000 RPM |
| Spindle Motor - Main | 30 HP |
| Subspindle Speed / Motor | 6,000 rpm / 20 HP |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 10 HP |
| Number of Turret Positions | 12 Station Turret - BMT 65 |
| Rapid Traverse Rates X, Z / Y | 1181 IPM / 394 IPM |
| Machine Dimensions | 172" x 85" x 90" |
| Machine Weight | 16,100 lbs. |
