2002 Haas TM-1
No longer available
2002 Haas TM-1
Location:California
Description
G Code Compatible
Intuitive Programming
Vector Spindle Drive
Direct Belt Drive
RS-232 Port / DNC Link
3-Phase or Single Phase
208 Volts 3-Phase 25 Amps Full Load
240 Volts Single Phase 40 Amps Full Load
All Available Manuals
Made in the USA
Specifications
| Manufacturer | Haas |
| Model | TM-1 |
| Year | 2002 |
| Condition | Used |
| Stock Number | 119622 |

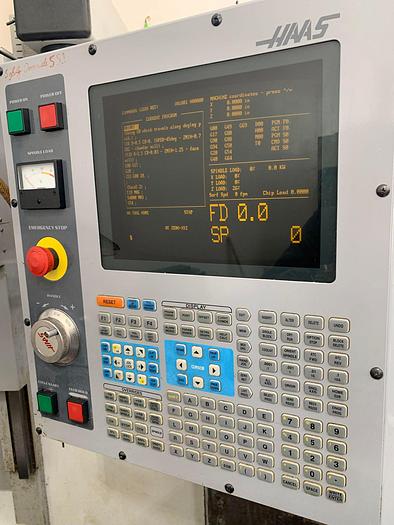

| Machine Control | Haas 32 Bit |

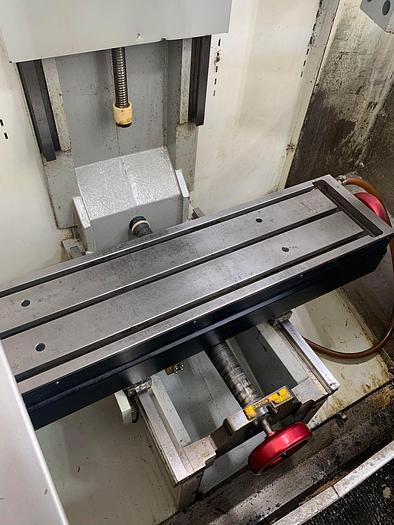

| Table Size | 47.75"x10.5" |
| Distance Spindle Nose to Table Top | 4" - 20" |
| X-Axis Travel | 30" |
| Y-Axis Travel | 12" |
| Z-Axis Travel | 16" |
| Spindle Speed | 4,000 rpm |
| Spindle Taper | CAT 40 |
| Spindle Motor | 7.5 hp |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Rapid Traverse Rates | 200 ipm |
| Machine Dimensions LxWxH | 85"x69"x109" |
| Machine Weight | 3,300 lbs |
