2013 Weiler E50/2000 w/6.5" Bore
2013 Weiler E50/2000 w/6.5" Bore
Contact us for price
Location:Alberta, Canada
or
Call (863) 439-6066
Description

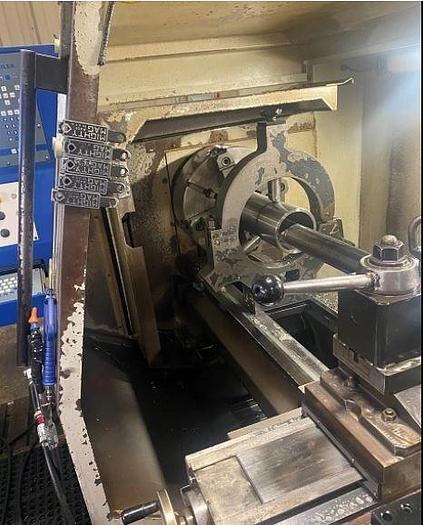

18" 4 Jaw Manual Chuck
Tailstock
Steady Rest

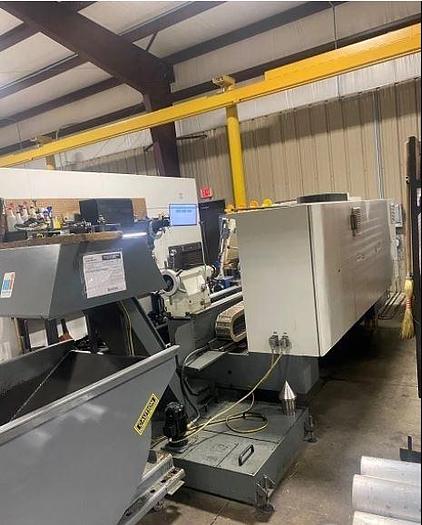

Chip Conveyor
Tool Post
Coolant System
Inch/Metric Threading
All Available Tooling
All Available Manuals
Specifications
| Manufacturer | Weiler |
| Model | E50/2000 w/6.5" Bore |
| Year | 2013 |
| Condition | Used |
| Stock Number | 119618 |

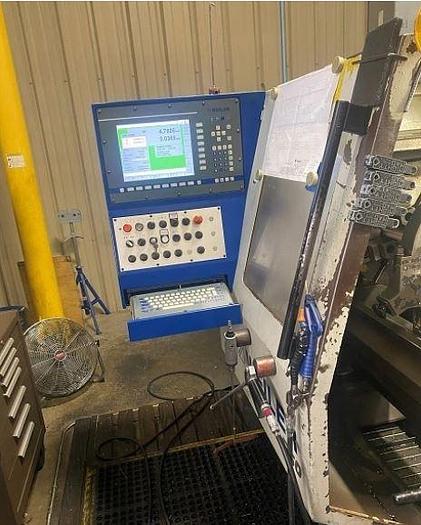

| Machine Control | Siemens |
| Chuck type | 18" 4 Jaw Chuck |
| Swing over bed | 22.44" |
| Swing over cross slide | 13.39" |
| Distance between centers | 78.74" |
| X axis travel | 13.39" |
| Z axis travel | 78.74" |
| Spindle Bore | 6.5" |
| Spindle Speeds | 2,500 RPM |
| Spindle Motor | 20 HP |
| Turret type | 4 Position Tool Post |
| Tailstock center | #5 MT |
| Tailstock quill diameter / stroke | 3.15" / 7.87" |
| Metric Threads | 0.001" - .78" |
| Inch Threads | 112 1/64 TPI |
| Modular Threads | 0.001" - 2.20" |
| Diametral Threads | 448 - 0.05 DP |
| Number of Thread Courses Max | 360 |
| Machine Dimensions | 173" x 91" x 75" |
| Machine Weight | 9,370 lbs. |
