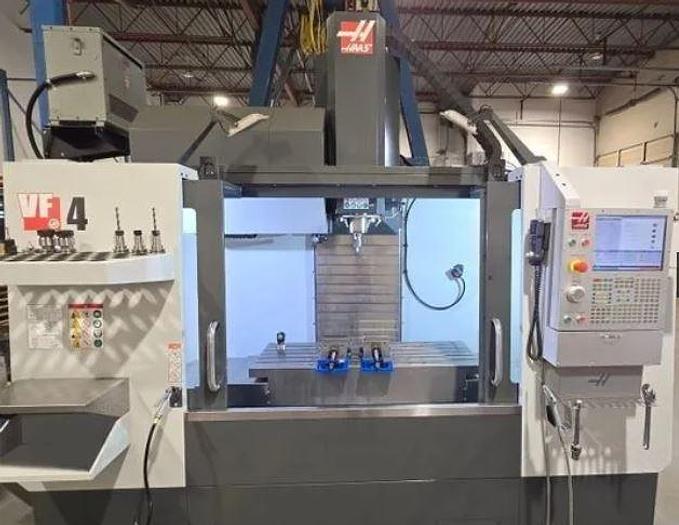

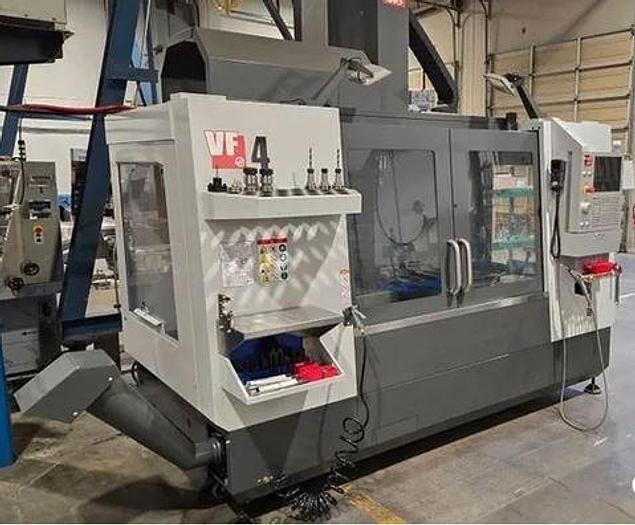

2019 Haas VF4
No longer available
2019 Haas VF4
$69,950 (USD)
Location:British Columbia, Canada
Description
4th Axis Drive & Wiring
Haas Wireless Probing Package - Renishaw

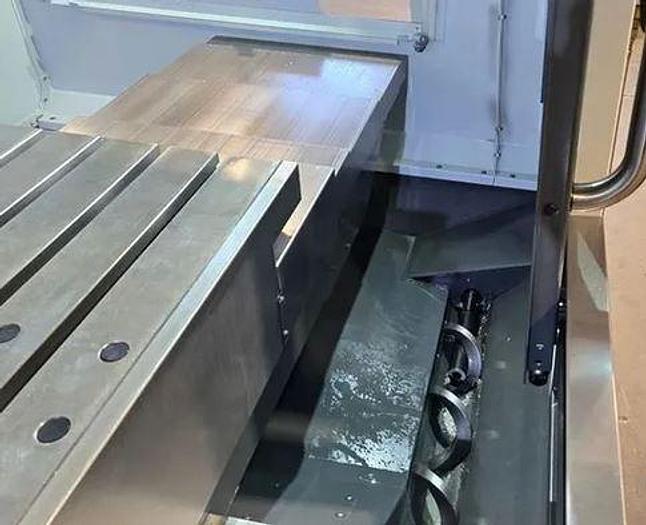

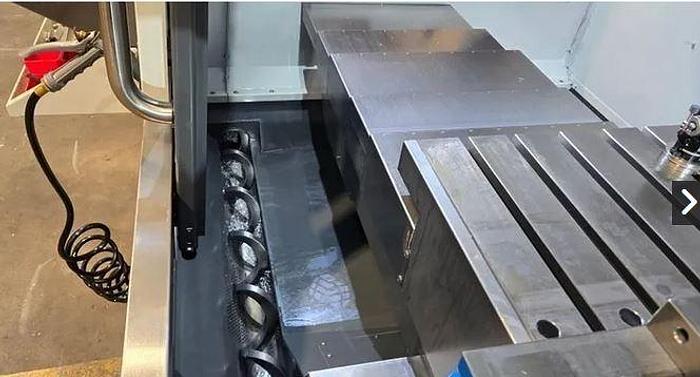

Chip Conveyor Auger Style
Through the Spindle Coolant - READY

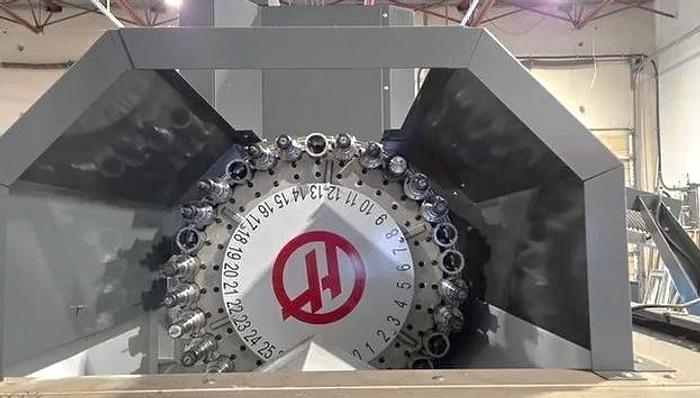

30 Station Side Mounted Tool Changer
High Speed Machining

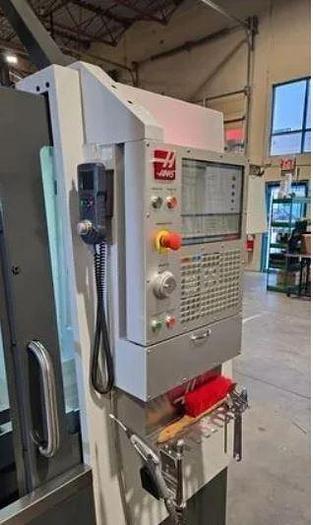

Remote Jog Handle
Spindle Orientation
Coordinate Rotation & Scaling
Haas Intuitive Programming System
User Definable Macros
High Intensity Lighting

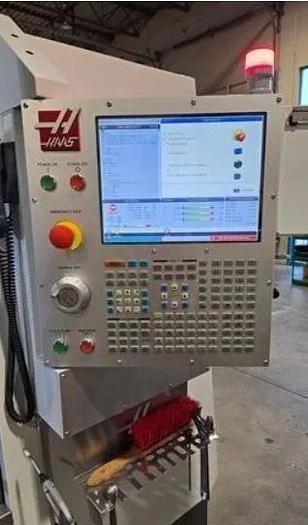

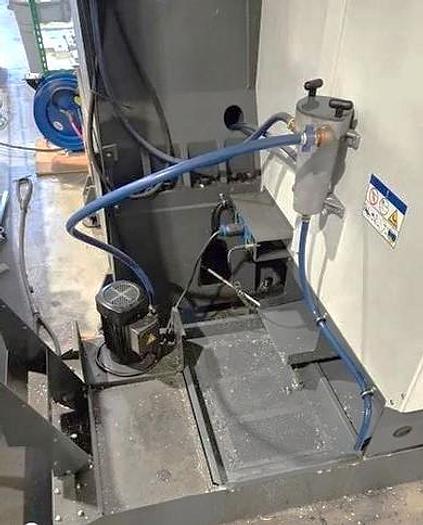

USB Port Interface RS-232C Port Interface 15" LCD Color Monitor Coolant System with Tank & Pump
**Light cutting hours using mostly small cutters while profiling aluminum**
**Power On Hours 5,597**
**Cycle Start Hours 1,848**
**Feed Cutting Hours 1,433**
Specifications
| Manufacturer | Haas |
| Model | VF4 |
| Year | 2019 |
| Condition | Used |
| Stock Number | 119613 |
| Control | Haas 32 BIT |

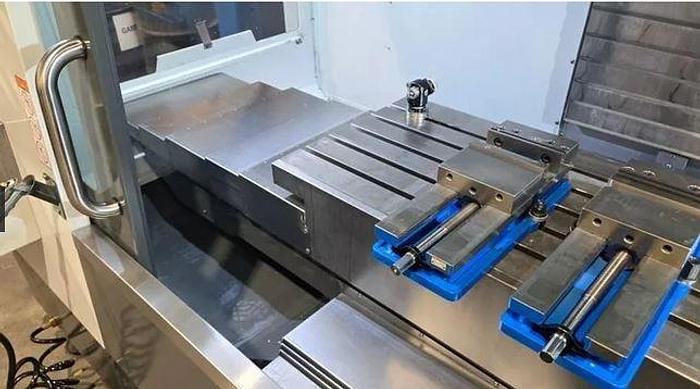

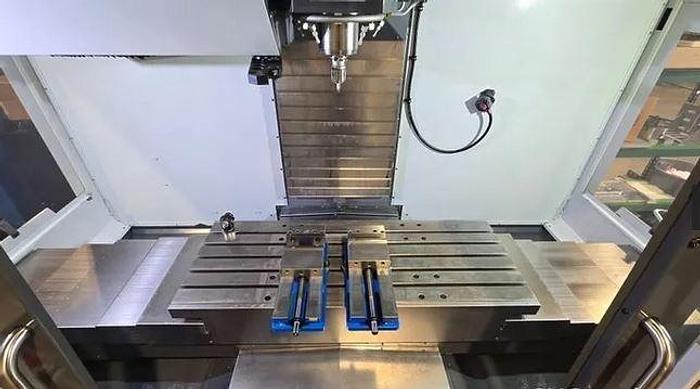

| Table size | 52" x 18" |
| Maximum Weight on Table | 3,500 lbs. |
| X-Axis Travel | 50" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 25" |
| Spindle Taper | CAT #40 |
| Spindle Speeds | 0 - 8,100 RPM |
| Spindle Motor 30 Minutes/Continuous | 20 HP |
| Spindle Nose to Table Top | 4" - 29" |
| Number of Tool Positions | 30 Station Side Mounted ATC |
| Rapid Traverse Rates | 710 IPM |
| Machine Dimensions | 131" x 95" x 101" |
| Machine Weight | 13,300 lbs. |
