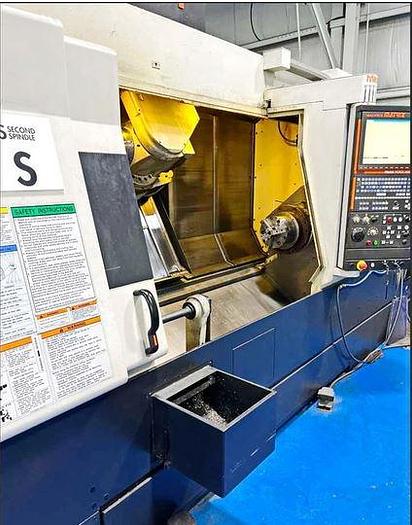

2007 Mazak Integrex 300-IVS/1500 Turn/Mill Center

No longer available

2007 Mazak Integrex 300-IVS/1500 Turn/Mill Center

$139,500 (USD)

Location:Michigan

Description

Subspindle

C Axis Spindle Rotation

Milling/Drilling Capabilty - Live Tooling

Y Axis Capability for off centerline work

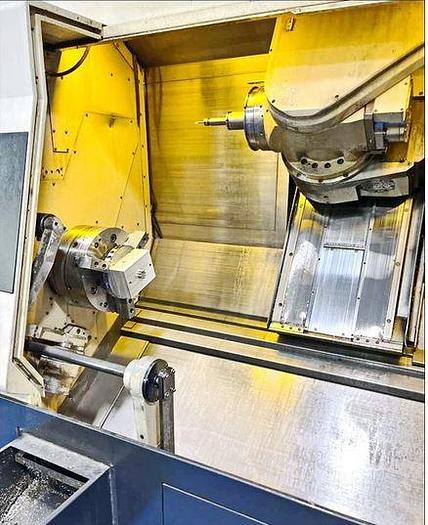

B-Axis Pendulum Style Head - 5 Degree Index Coupling Clamp

B Axis Positioning over 225 Degrees in 0.0001 Increment (not contouring)

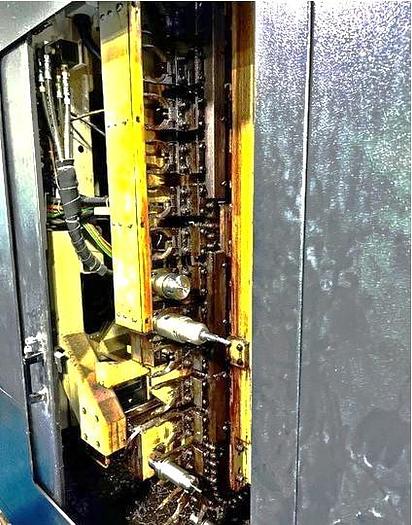

40 Station Toolchanger - KM63

12" 3 Jaw Hydraulic Chuck on Main Spindle

9" 3 Jaw Hydraulic Chuck on Subspindle

Automatic Tool Eye

Chip Conveyor

Automatic Parts Catcher

Work Measuring System OMP-60

Super Flow 1,000 PSI High Pressure Coolant

Coolant Through the Mill Spindle - 213 PSI

Chuck Air Blast - Subspindle

Automatic Chuck Jaws Open/Close Confirmation

Overload Detection System

Mill Spindle Synchronous Tapping

EIA/ISO Input Function

Main & Subspindle Synchronization

Coolant System with Tank & Pump

Multi Tap Transformer 230-460V Electrics

PCMCIA Interface 2-Slots

RS-232C Port for DNC Interface

All Available Tooling

All Available Manuals

Show All

Specifications

ManufacturerMazak
ModelIntegrex 300-IVS/1500 Turn/Mill Center
Year2007
ConditionUsed
Stock Number119606

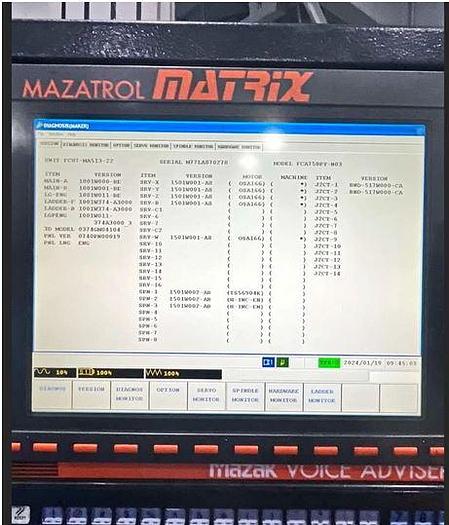

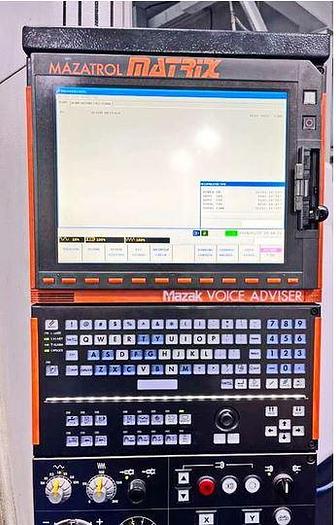

Machine ControlMazatrol Matrix
Chuck Type12" 3 Jaw Hyd. Chuck
Maximum Swing30"
Maximum Swing when using Y Axis26" - 30"
Maximum Turning Diameter30"
Distance Between Centers60"
X-Axis Travel24.8"
Y-Axis Travel+/- 4.53"
Z-Axis Travel62.41"
C-Axis Spindle Rotation Main / Subspindle0.0001 Degree / 0.001 Degree
B-Axis Tilt Movement225 Degrees
Spindle Nose / Bore / Bar CapacityA2-8" / 3.46" / 3"
Spindle Speed4,000 RPM
Spindle Motor40 HP
Subspindle Nose / Subspindle BoreA2-8" / 3.46"
Subspindle Speed4,000 RPM
Subspindle Motor35 HP
Milling Spindle Speed12,000 RPM
Milling Spindle Motor25 HP
Tool Magazine Capacity40 Station Tool Changer - KM63
Rapid Traverse Rates (X, Y, Z)1496 IPM, 1024 IPM, 1496 IPM
Machine Dimensions LxWxH202" x 93" x 115"
Machine Weight28,660 lbs
