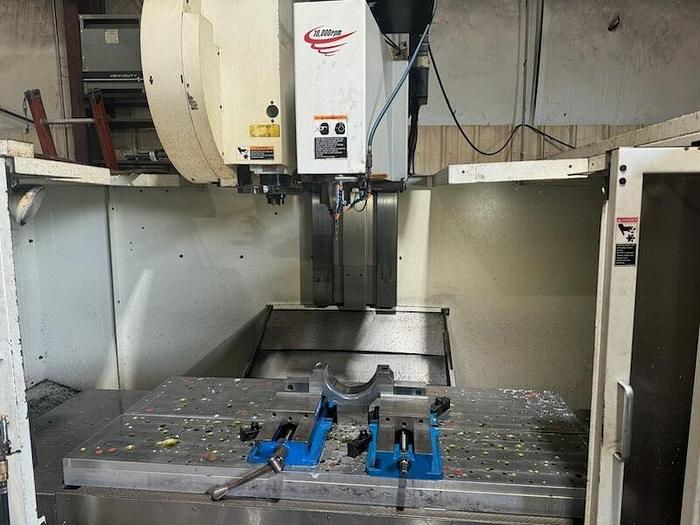

2006 Fadal VMC6030HT w/4th Axis
No longer available
2006 Fadal VMC6030HT w/4th Axis
Location:Alabama
Description
24 Station Side Mount Tool Changer
10,000 RPM Spindle

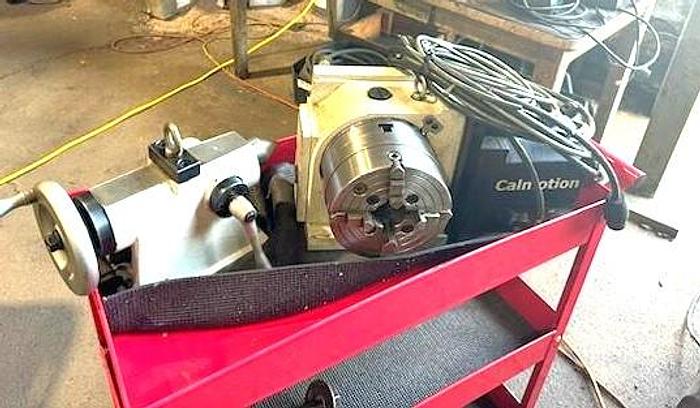

4th Axis Rotary Table w/Tailstock
Remote Jog Handle
Rigid Tapping
Boxed Ways
High Torque Spindle Motor 2 Speed Spindle Drive RS 232 Port Interface
Chip Conveyor
Coolant System with Tank & Pump
Wired 240V Electrics, 68 Amps full load
Specifications
| Manufacturer | Fadal |
| Model | VMC6030HT w/4th Axis |
| Year | 2006 |
| Condition | Used |
| Stock Number | 119595 |

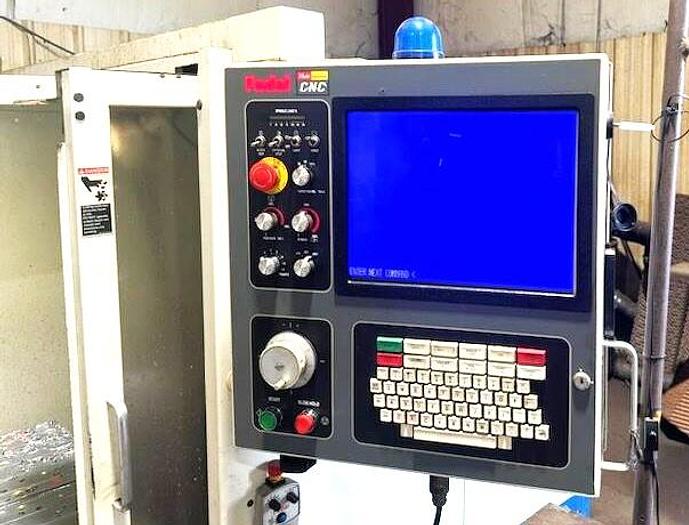

| Control | Fadal Multiprocessor Control |
| Table Size | 62" x 30" |
| Maximum Table Load | 4,120 lbs. |
| Distance Spindle Nose to Table Top | 5.5" - 35.5" |
| X-Axis Travel | 60" |
| Y-Axis Travel | 30" |
| Z-Axis Travel | 30" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 10,000 rpm |
| Spindle Motor | 22.5 HP |
| Tool Magazine Capacity | 24 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 4.5" / 15" / 15 lbs |
| Rapid Traverse Rates (X, Y, Z) | 400 IPM |
| Machine Dimensions LxWxH | 158" x 103" x 122" |
| Machine Weight | 17,000 lbs. |
