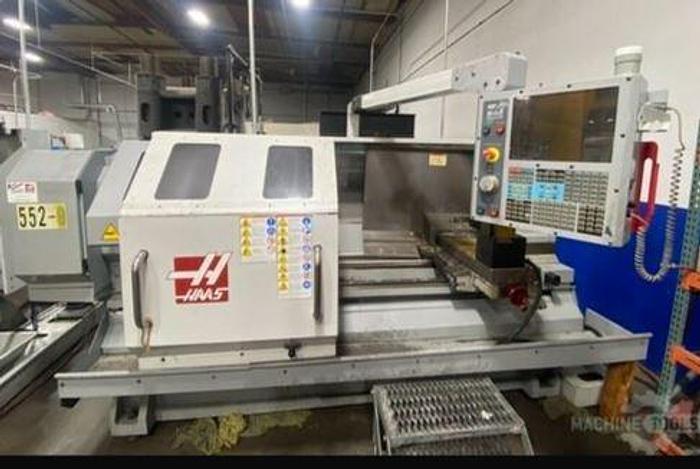

2007 Haas TL-3B Big Bore
No longer available
2007 Haas TL-3B Big Bore
Location:Arizona
Description
8.5" Big Bore Spindle

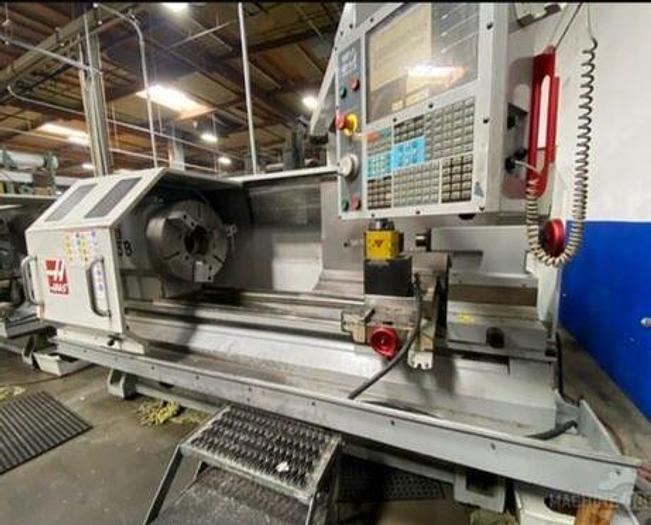

24" 3 Jaw Manual Chuck
Tool Post
Tailstock

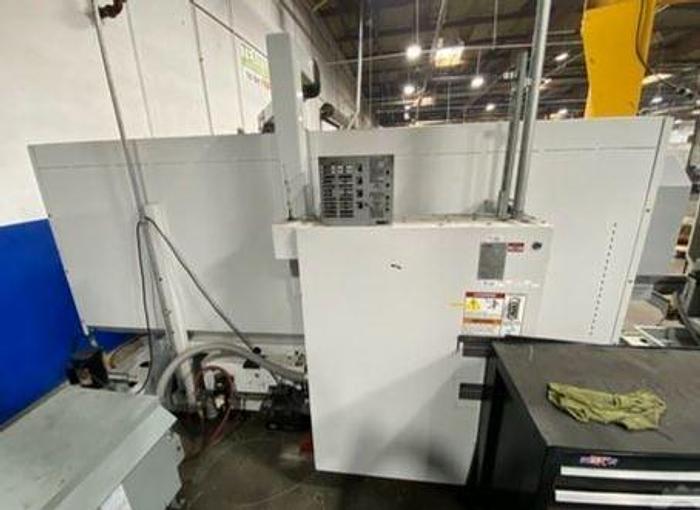

Internal Multi Tap High Voltage Isolation Transformer
Rigid Tapping
Haas Intuitive Programming System
2 Speed Geared Headstock
Manual Hand Wheels
Coolant System with Tank & Pump
USB Port Interface
RS 232 Port Interface
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | TL-3B Big Bore |
| Year | 2007 |
| Condition | Used |
| Stock Number | 119594 |

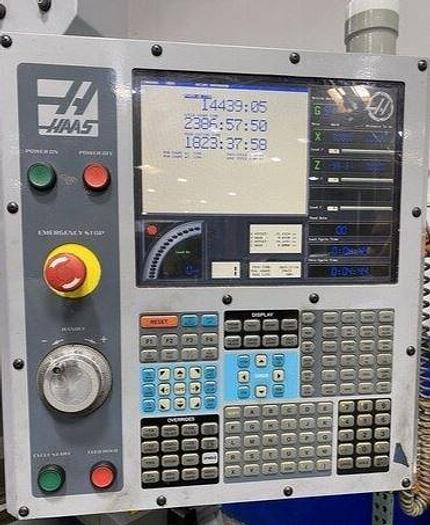

| Machine Control | Haas CNC Control |
| Chuck Size | 24" 3-Jaw Manual Chuck |
| Maximum Swing | 20" |
| Maximum Swing Over Cross Slide | 13" |
| Maximum Machining Diameter | 20" |
| Distance Between Centers | 63" |
| X-axis travel | 12" |
| Z-Axis Travel | 60" |
| Spindle Speeds | 0 - 650 RPM |
| Spindle Nose / Bore / Bar Capacity | A2-15 / 8.5" / 8.5" |
| Spindle Motor | 30 HP |
| Number of Tool Positions | Tool Post |
| Rapid Traverse Rates X/Z | 75 IPM / 150 IPM |
| Tailstock Bore Taper | #5 MT |
| Machine Dimensions LxWxH | 123" x 77" x 87" |
| Machine Weight | 9,624 lbs |
