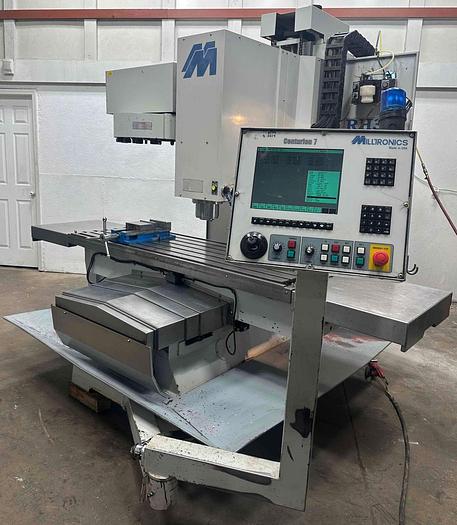

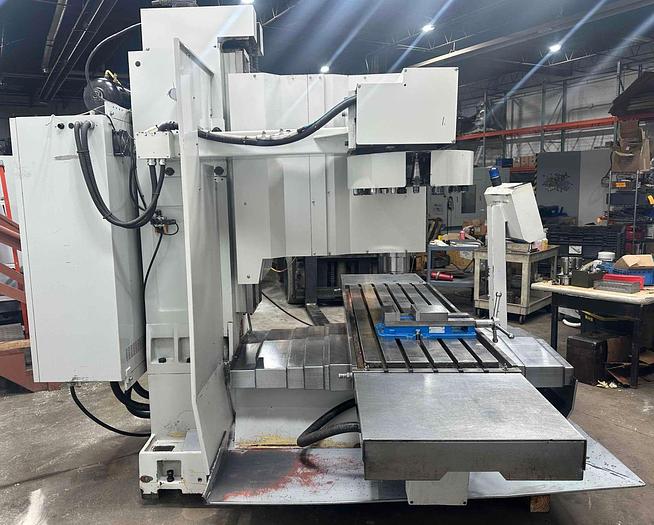

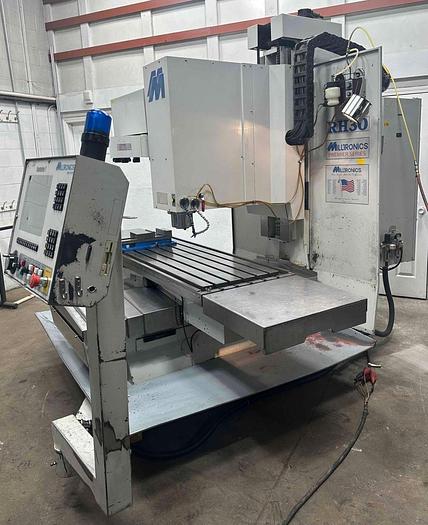

2004 Milltronics RH30
No longer available
2004 Milltronics RH30
Location:Minnesota
Description
Rigid Tapping
Spindle Load Meter
Flood Coolant
Coolant Tank with Pump
X & Y Axis Way Covers
Boxed Way Construction
Both Conversational & G Code Programming
3.5" Floppy Disk Interface
RS 232 Port Interface
Pedestal Mounted Control that rides on casters for operator flexibility
Vise

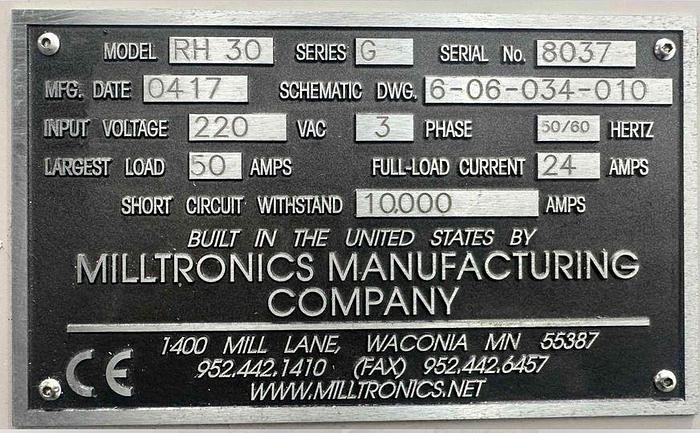

Wired 220V Electrics
All Available Manuals
Specifications
| Manufacturer | Milltronics |
| Model | RH30 |
| Year | 2004 |
| Condition | Used |
| Stock Number | 119592 |

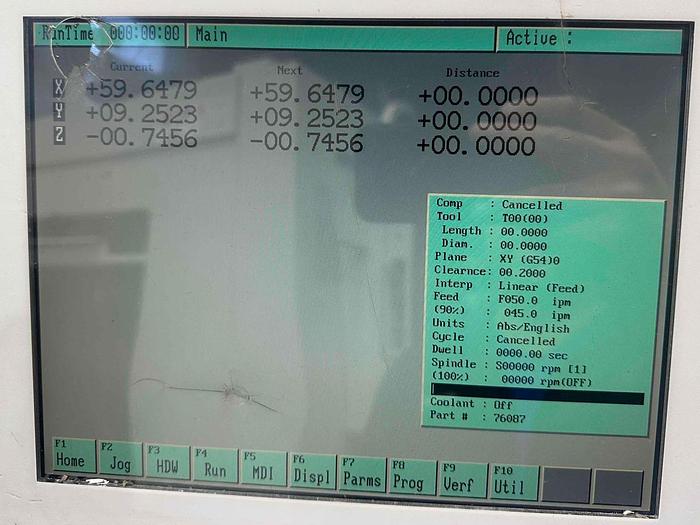

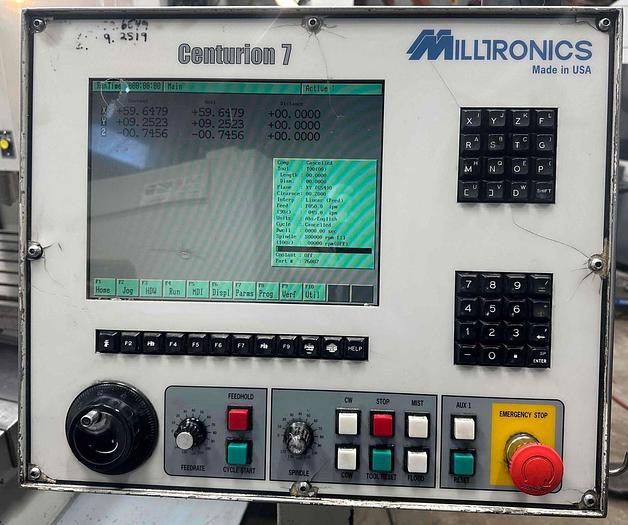

| Machine Control | Milltronics Centurion 7 Control |

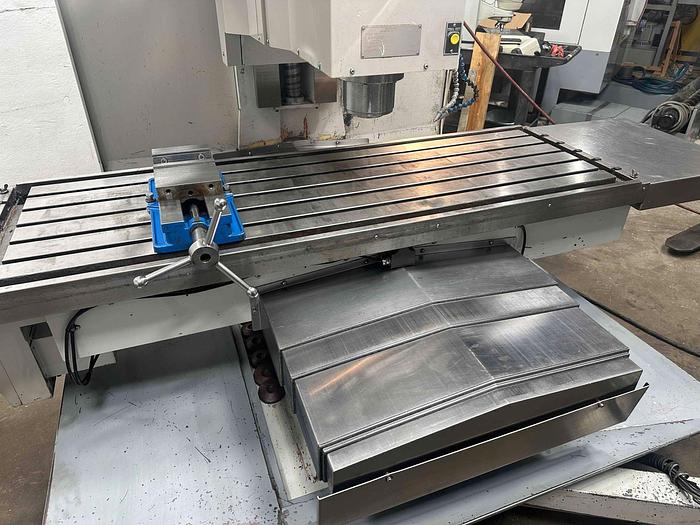

| Table Size | 73" x 24" |
| Maximum Table Load | 3,000 lbs |
| X-Axis Travel | 60" |
| Y-Axis Travel | 30" |
| Z-Axis Travel | 28" |
| Spindle Speed | 50 - 8,000 RPM |

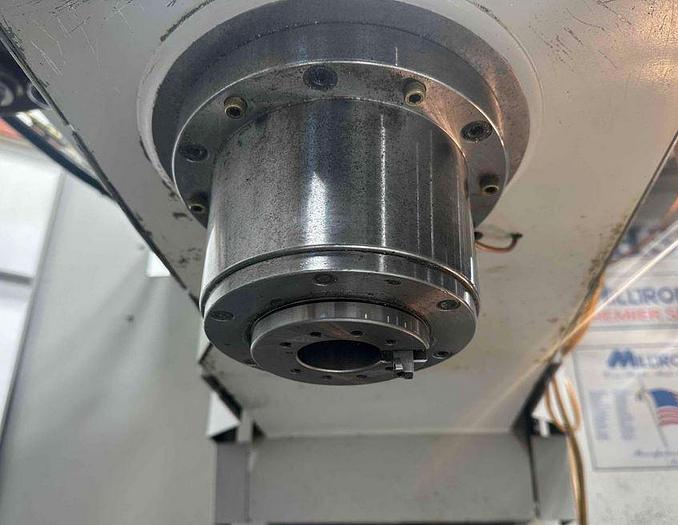

| Spindle Taper | CAT 40 |
| Spindle Motor | 15 HP |
| Spindle Nose to Table Top | 3.0" - 31.0" |

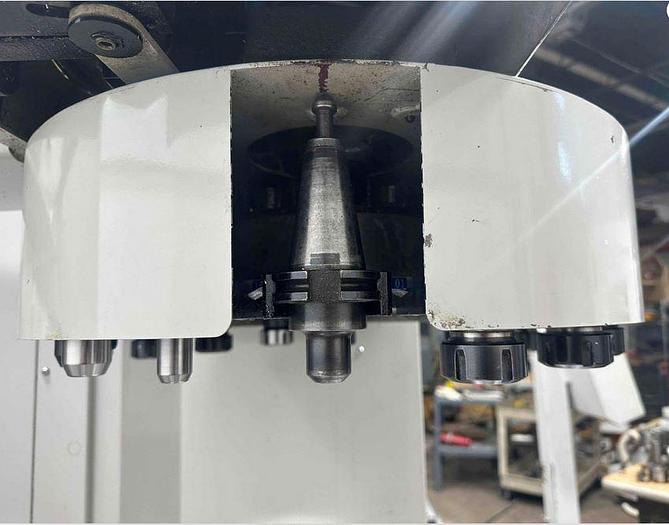

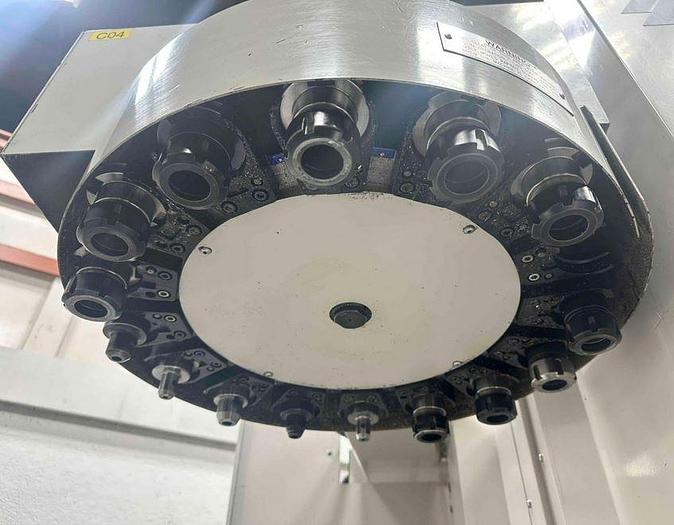

| Tool Magazine Capacity | 16 Position ATC |
| Maximum Tool Diameter / Length / Weight | 3.46" / 11.85" / 15 lbs |
| Rapid Traverse Rates X, Y / Z | 500 IPM / 400 IPM |
| Machine Dimensions LxWxH | 114"x135.5"x99" |
| Machine Weight | 12,000 lbs |
