2011 Haas ST-20
No longer available
2011 Haas ST-20
Location:Illinois
Description

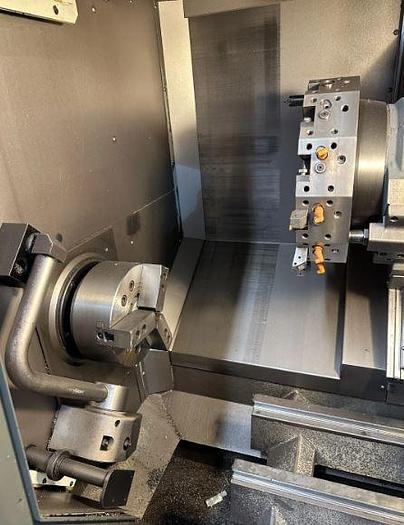

8" 3-Jaw Hydraulic Chuck

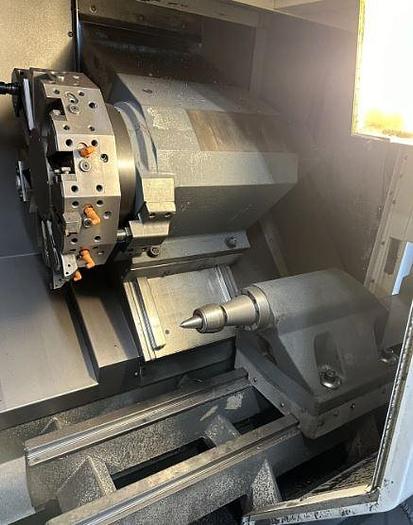

Programmable Tailstock
Tool Presetter
Coolant System with Tank and Pump
USB Port Interface
RS 232 Port Interface
Specifications
| Manufacturer | Haas |
| Model | ST-20 |
| Year | 2011 |
| Condition | Used |
| Stock Number | 119584 |
| Machine Control | Haas CNC Control |
| Maximum Swing/Over Carriage | 23" / 9.5" |
| Maximum Turning Diameter / Length | 10.3" / 20" |
| Center Distance | 24" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3" / 2" |
| Spindle Speed | 5,000 rpm |
| Spindle Motor | 20 hp |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 710 ipm |
| Tailstock Body Travel / Center | 20" / #4 MT |
| Machine Dimensions LxWxH | 126.5" x62"x72" |
| Machine Weight | 9,000 lbs |
