2012 Haas ST-30
No longer available
2012 Haas ST-30
Location:Illinois
Description

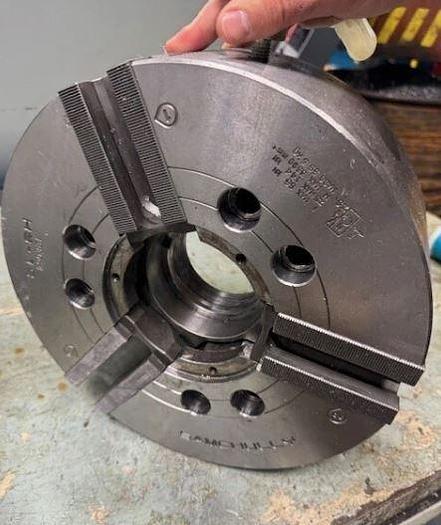

10" 3 Jaw Hydraulic Chuck
High-Intensity Lighting

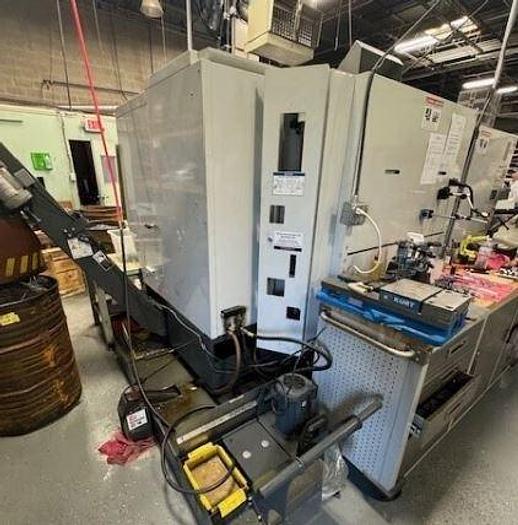

Chip Conveyor
RS 232 Port Interface
Coolant System with Tank & Pump
Specifications
| Manufacturer | Haas |
| Model | ST-30 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 119583 |
| Machine Control | Haas CNC Control |
| Maximum Swing | 31.75" |
| Maximum Turning Diameter | 18" |
| Maximum Machining Length | 23" |
| Maximum Bar Capacity | 3" |
| X-Axis Travel | 12.5" |
| Z-Axis Travel | 26" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3.5" / 3" |
| Spindle Speeds | 30 - 3,400 RPM |
| Spindle Motor | 30 HP |

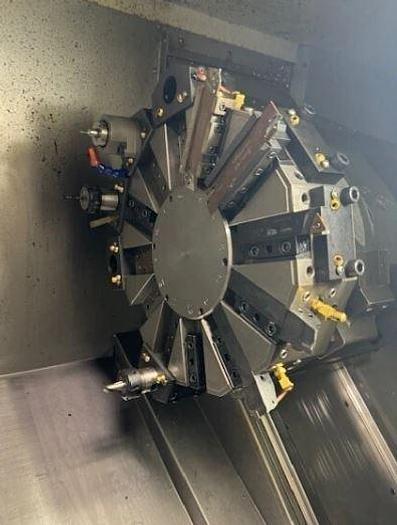

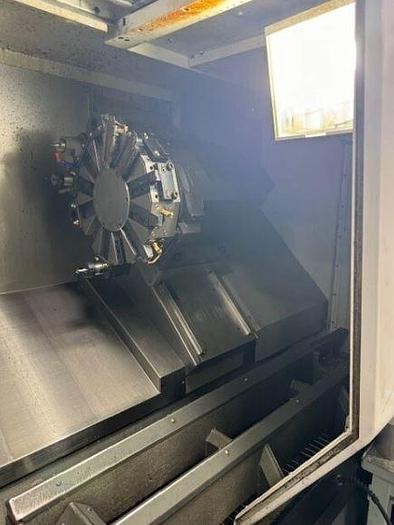

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 945 ipm / 945 ipm |
| Tailstock Body Travel / Taper | 20" / MT #4 |
| Machine Dimensions | 171" x 90" x 83" |
| Machine Weight | 12,540 lbs. |
