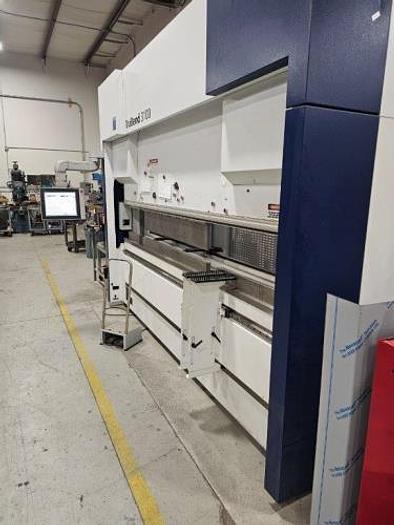

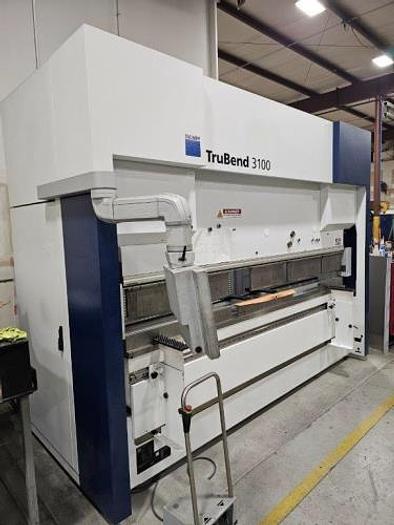

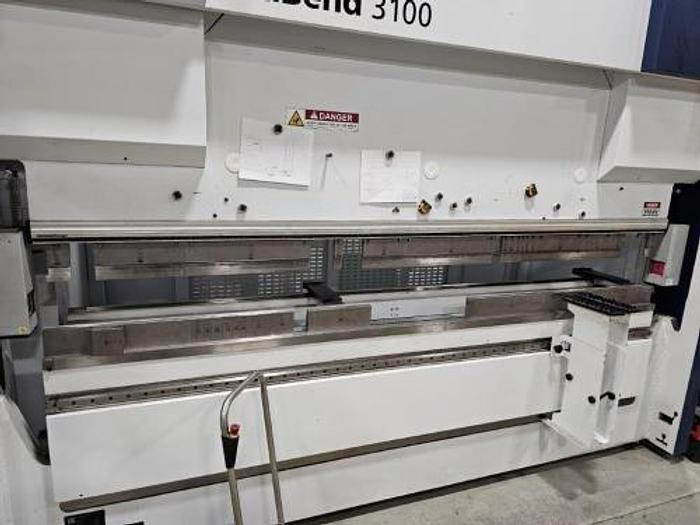

2019 Trumpf Trubend 3100 CNC Press Brake

2019 Trumpf Trubend 3100 CNC Press Brake

$179,500 (USD)

Location:California

orCall (863) 439-6066

Description

3D Color Graphics

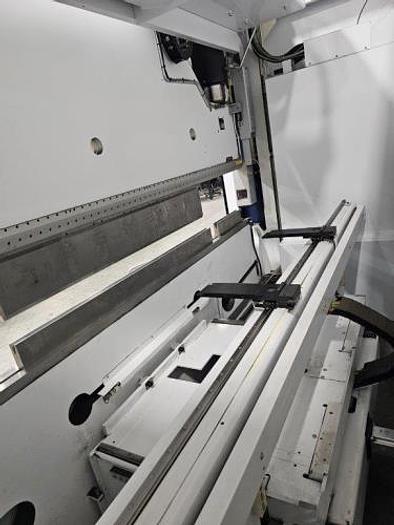

4 Axis Back Gauge (X, Z1, Z2, R)

Networking Capability

Upper Hydraulic Clamping

(2) Front Sheet Supports

Independent RAM Scales (Y1 - Y2)

Foot Switch

Lazersafe

All Available Manuals

Some Trumpf Tooling Includes Punches & Dies


**ONLY 780 Hours**

Show All

Specifications

ManufacturerTrumpf
ModelTrubend 3100 CNC Press Brake
Year2019
ConditionUsed
Stock Number119575

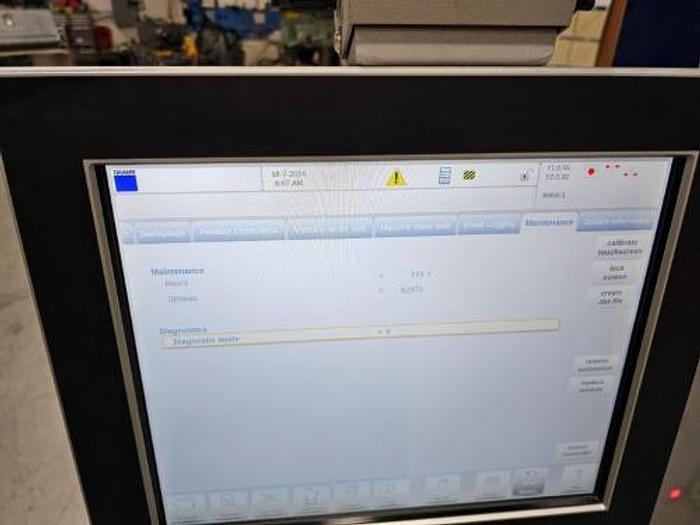

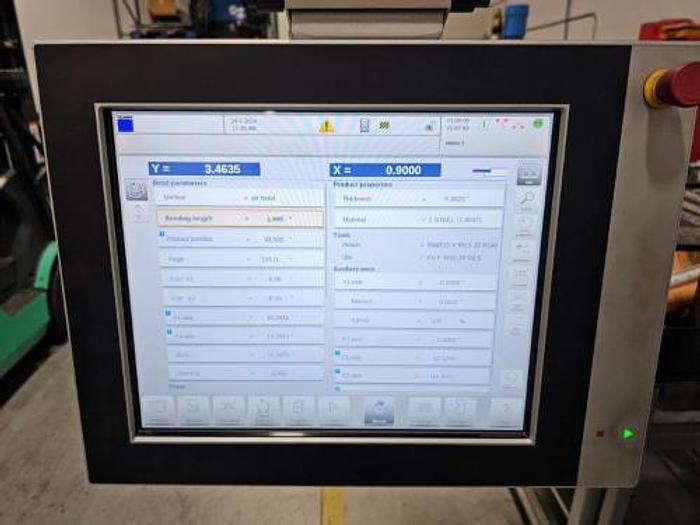

Machine ControlDelem T8000T 6 Axis CNC Control
Capacity110 Tons
Bending Length120"
Distance Between Columns133"
Length of Stroke8"
Open Height14"
Back Gauge Length34"
Approach472 IPM
Forming2 - 35 IPM
Return472 IPM
Machine Dimensions LxWxH142" x 65" x 93"
Machine Weight16,975 lbs
