2005 Doosan DHP 4000
No longer available
2005 Doosan DHP 4000
Location:Arizona
Description
Coolant Thru the Spindle
60 ATC
Full 4th Axis

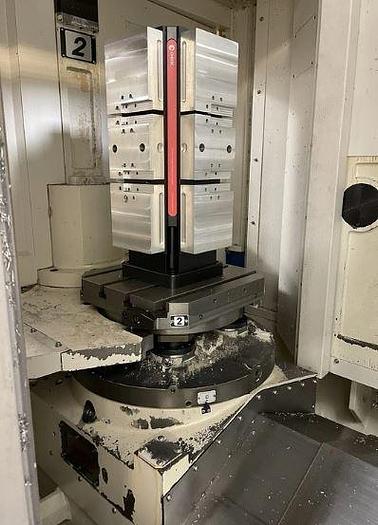

(1) Vise Tower
Chip Conveyor
Specifications
| Manufacturer | Doosan |
| Model | DHP 4000 |
| Year | 2005 |
| Condition | Used |
| Stock Number | 119545 |

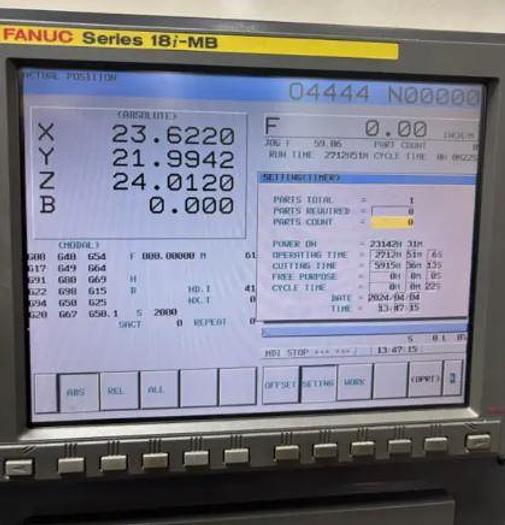

| Machine Control | Fanuc 18i MB |
| Pallet size | 15.75"x15.75" |
| Max table load | 880 lbs |
| X axis travel | 23.06" |
| Y axis travel | 22" |
| Z axis travel | 23.6" |
| Spindle motor | 30 HP |
| Spindle speed | 12,000 RPM |
| Spindle taper | Cat 40 |
| Tool magazine | 60 ATC |
| Pallet indexing | .001 Degree |
| Tool chage time | 1.7 Seconds |
| Rapid transverse rates | 2,362 IPM |
| Machine Dimensions LxWxH | 100"x192"x113" |
| Macine weight (approx) | 27,500 lbs |
