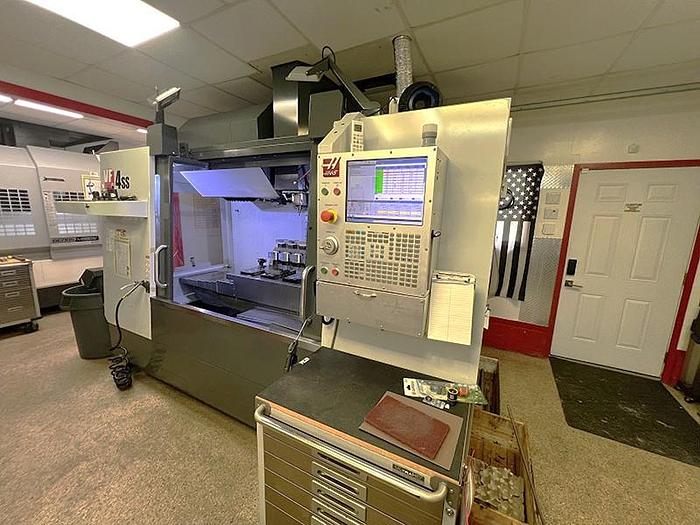

2019 Haas VF4SS

No longer available

2019 Haas VF4SS

$79,950 (USD)

Location:New York, NY

Description

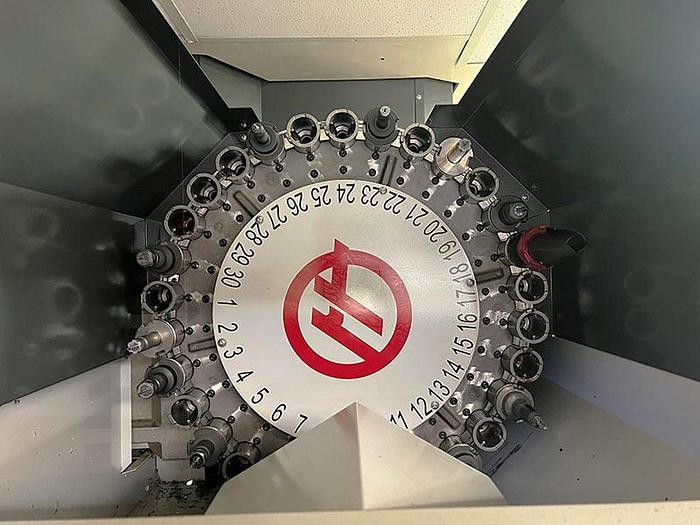

30+1 Position Side Mounted Tool Changer

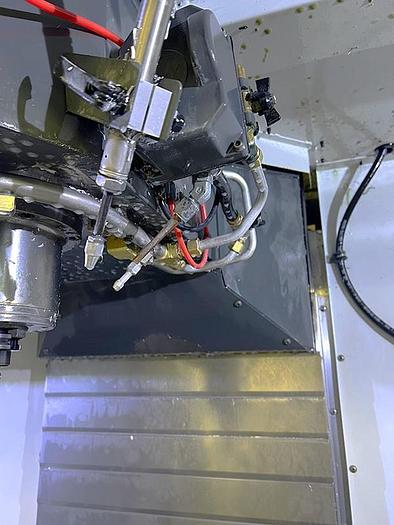

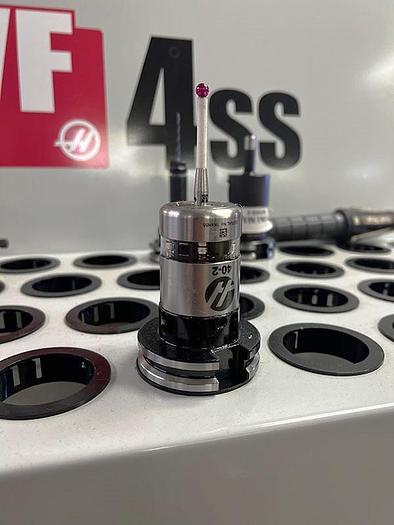

Haas Wireless Intuitive Probing Package - Renishaw

Coolant Through the Spindle - 300 PSI

Haas 4th Axis Drive & Wiring

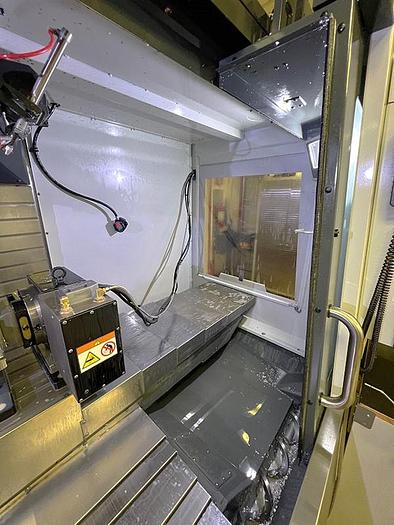

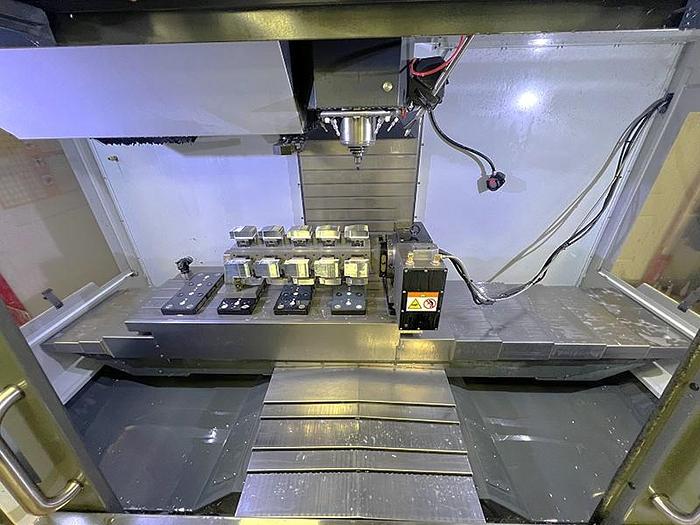

Haas HRT-210 4th Axis Rotary Table

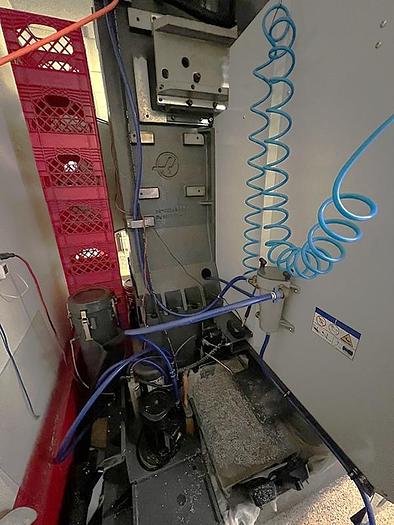

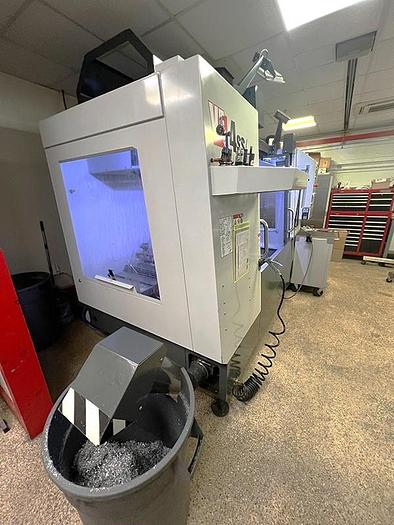

Auger Style Chip Conveyor

Spindle Orientation

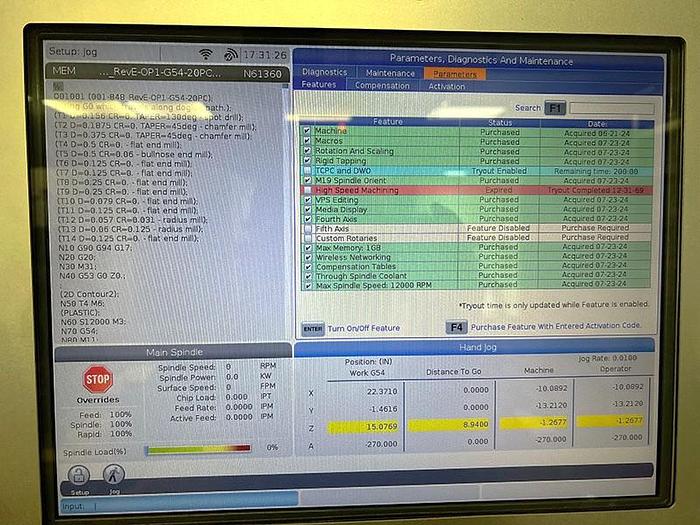

Coordinate Rotation & Scaling

User Definable Macros

Haas Visual Part Programming System

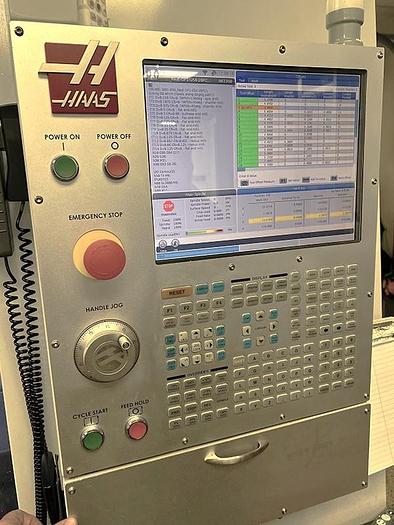

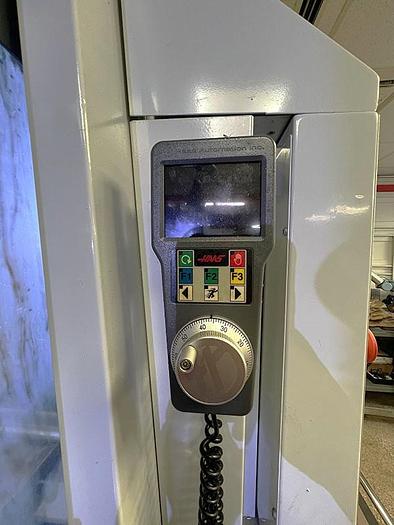

Large Remote Jog Handle

Programmable Coolant Nozzle

High Intensity Lighting

Auto Air Gun

1 GB Part Program Storage

Rigid Tapping

Coolant Tank with Pump

Inline Direct Drive 12,000 RPM Spindle

VPS Editing

Media Display

WiFi Connection

Compensation Tables

Wireless Networking

USB Port Interface

RS 232C Port Interface for DNC Operation

Wired 220V Electrics

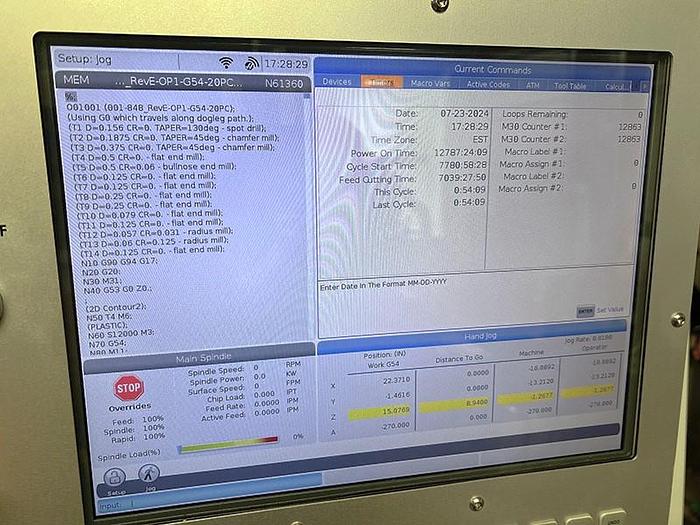

**Power On Hours 12,787**

**Cycle Start Hours 7,780**

**Feed Cutting Hours 7,039**


**Manufactured New in July of 2019**


**Price New as equipped today at $120,801**

Specifications

ManufacturerHaas
ModelVF4SS
Year2019
ConditionUsed
Stock Number119541

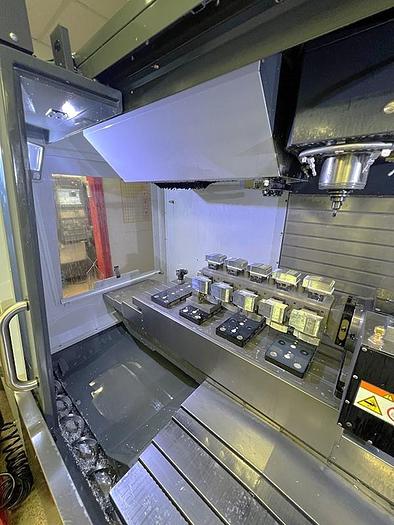

Table size52" x 18"
Max table load1,750 lbs
X axis travel50"
Y axis travel20"
Z axis travel25"
Spindle taperCAT #40
Spindle speed12,000 RPM
Spindle motor30 HP - Direct Drive
Spindle nose to table top4.2" - 29.2"
Number of tool positions30 + 1 Position Side Mount
Max tool weight12 lbs.
Rapid feed rate (x,y,z)1,400 IPM
Cutting feed rate0.1 - 833 IPM
Machine dimensions152" x 99" x 106"
Machine weight (approximately)13,800 lbs.
