2022 Haas CL-1 w/ Live Tooling
No longer available
2022 Haas CL-1 w/ Live Tooling
Location:California
Description
Live Tooling with C Axis Option

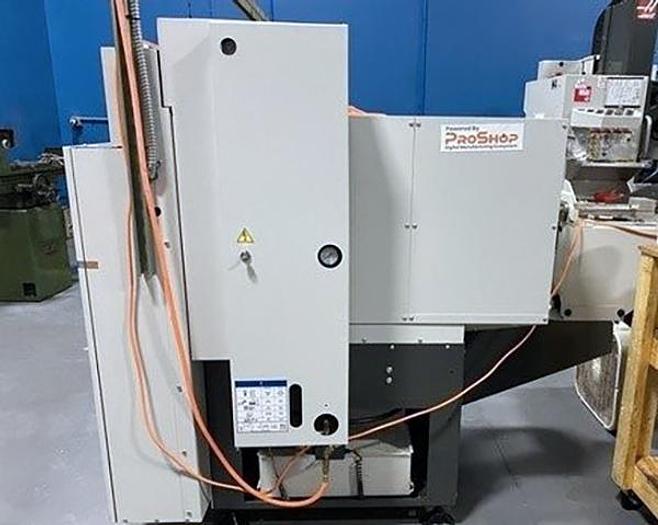

6' Fully Integrated Pneumatic Barfeeder
8 Station Indexable Turret

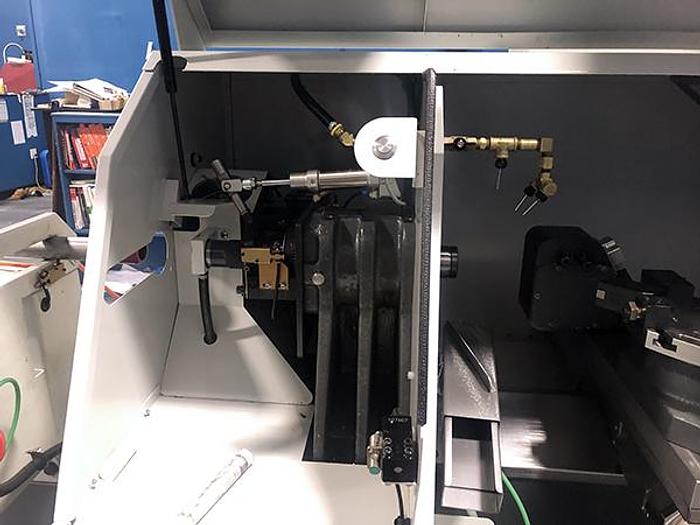

Parts Catcher
Spindle Orientation
Auto Air Collet Closer
Coolant Pump w/ 13 Gallon Coolant Tank
Rigid Tapping

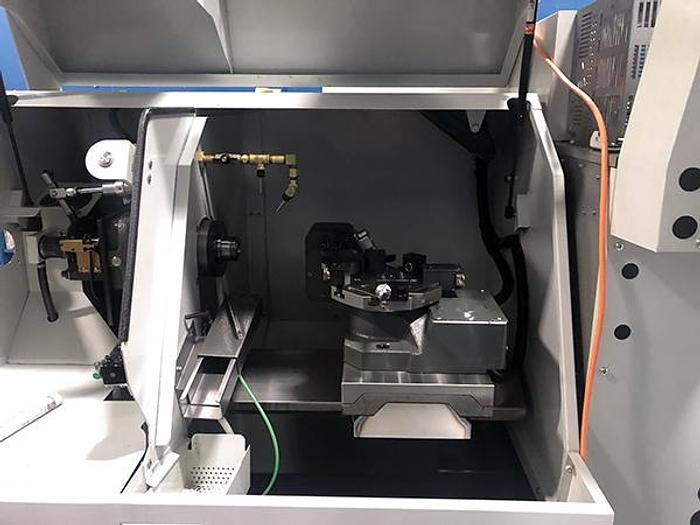

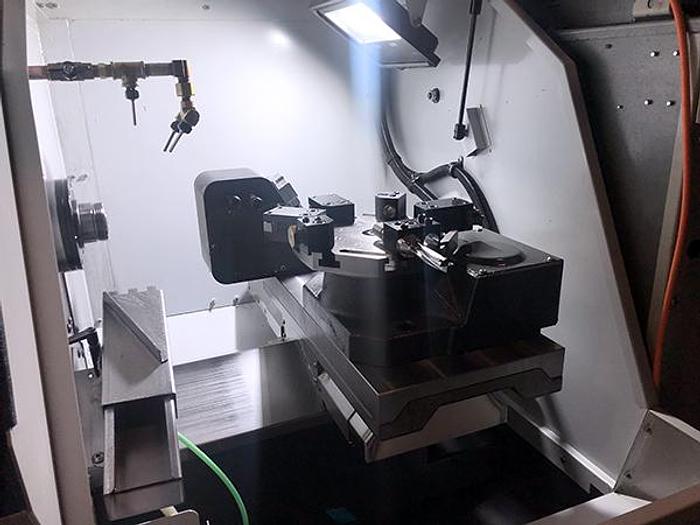

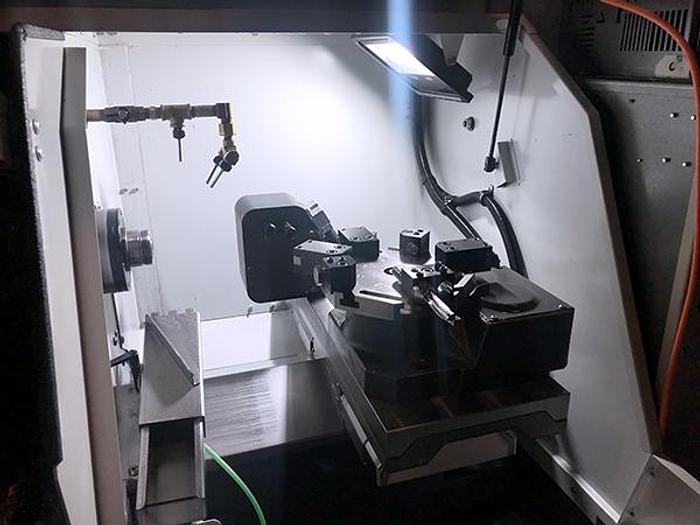

Gang Style Tooling Kit

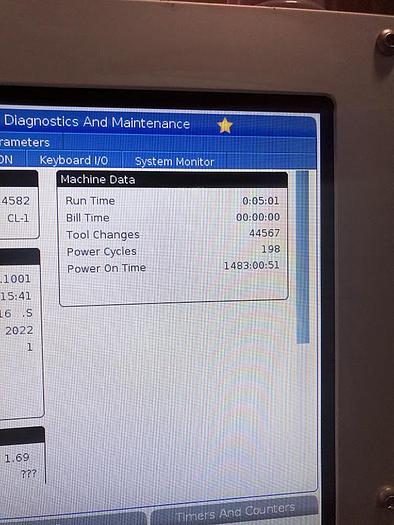

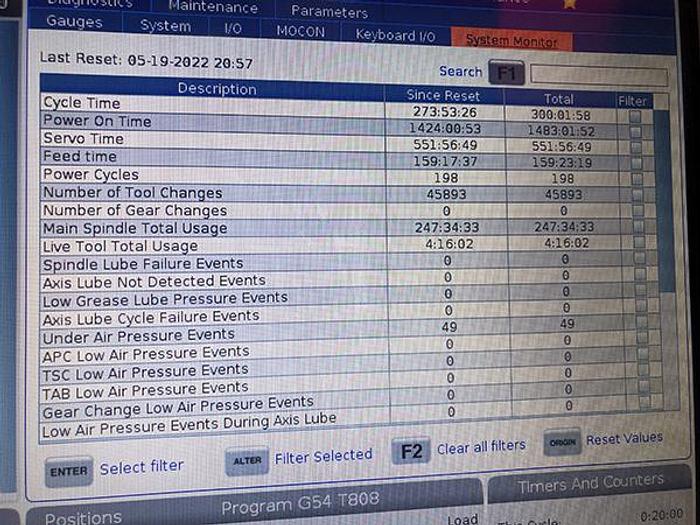

Haas CNC Control with 15" Color LCD Monitor
Ethernet Interface
USB Port Interface
1 GB Program Memory
Memory Lock Key Switch
Window Air Blast
Haas Connect: Remote Monitoring
Wifi Connection for Haas Control
Early Power Failure Detection Module
Specifications
| Manufacturer | Haas |
| Model | CL-1 w/ Live Tooling |
| Year | 2022 |
| Condition | Used |
| Stock Number | 119533 |
| Machine Control | Haas CNC Control |
| Chuck Size | 4" 3-Jaw Chuck |
| Maximum Swing Over Cross Slide | 11" |
| Maximum Machining Diameter | 5.0" |
| Maximum Machining Length | 12" |
| C Axis Spindle Rotation | 0.01 Degree |
| Spindle Speed | 6,000 RPM |
| Spindle Nose / Spindle Bore / Bar Capacity | 5C Type / 1.25" / 1" |
| Spindle Motor | 5 HP |
| Turret Type | 8 Position Turret |
| Rapid Traverse Rates X/Z | 757 IPM |
| Cutting Feedrates | 500 IPM |
| Machine Dimensions LxWxH | 78" x 62" x 80" |
| Machine Weight | 2,240 lbs |
