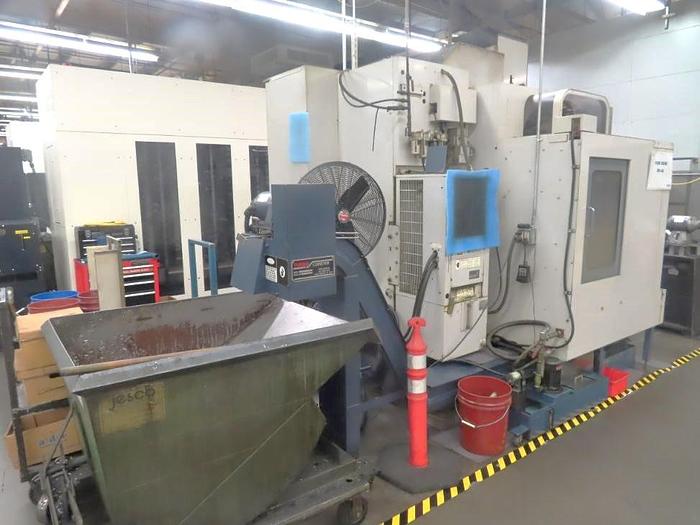

1995 Mori Seiki MV-40B
No longer available
1995 Mori Seiki MV-40B
$15,500 (USD)
Location:Oregon
Description
4th Axis Wired

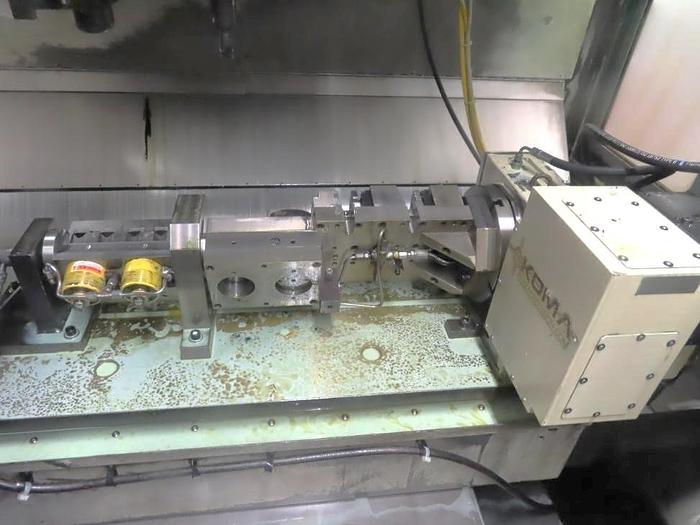

Koma 4th Axis Rotary Table with Tailstock Support for Trunnion Capability
-Includes (2) Support Bearings, Fixture Plate, Hydraulic Clamps
Chip Conveyor

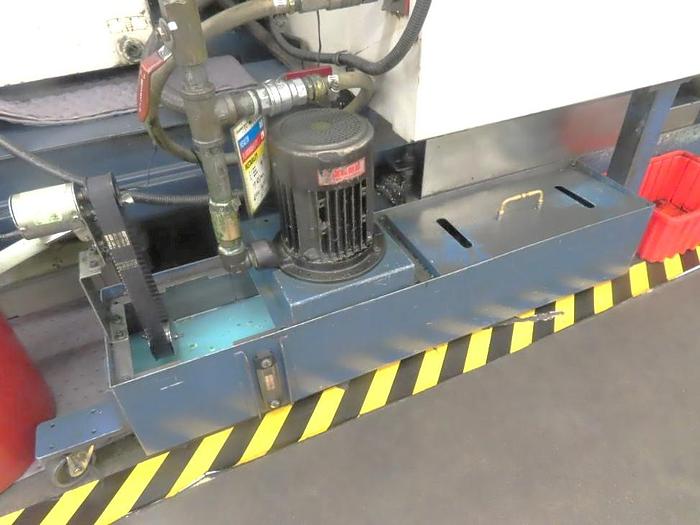

Flood Coolant System with Tank & Pump
Oil Temperature Regulator
RS 232 Port Interface
Boxed Way Design
Geared Headstock
All Available Manuals
Wired 220V Electrics
Includes (20-25) CAT 40 Tool Holders
Tooling Cabinet
Spare Fanuc Servo Motor

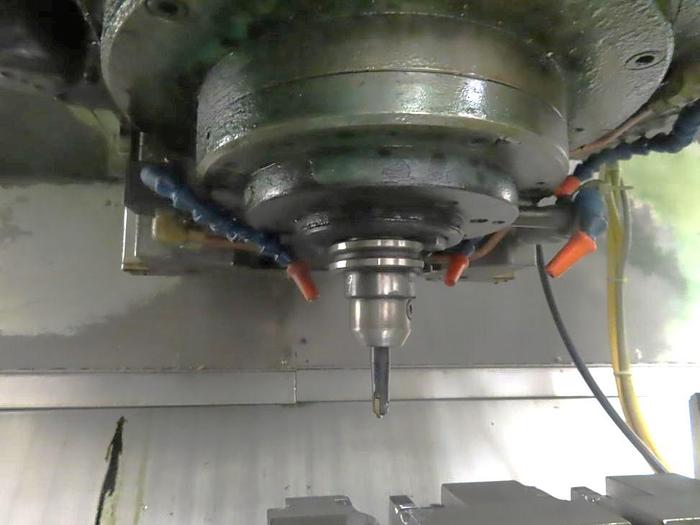

Spare Spindle

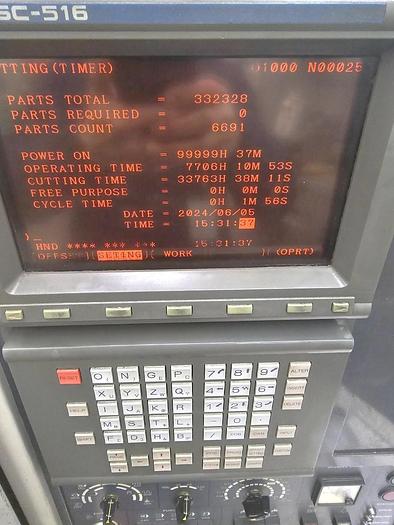

**Cutting Time Hours - 33,763**
**1 Owner Machine, Well Maintained with Regular PM Schedule**
Specifications
| Manufacturer | Mori Seiki |
| Model | MV-40B |
| Year | 1995 |
| Condition | Used |
| Stock Number | 119503 |
| Machine Control | Fanuc MSC-516 Series Control |
| Table Size | 17.7" x 43.3" |
| Maximum Table Load | 1,540 lbs |
| X-Axis Travel | 31.5" |
| Y-Axis Travel | 16.1" |
| Z-Axis Travel | 20.1" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 8,000 RPM |
| Spindle Motor | 10 HP |
| Tool magazine capacity | 20 Station Side Mounted Tool Changer |
| Rapid Traverse Rates X, Y / Z | 787 IPM / 787 IPM / 591 IPM |
| Cutting Feedrates | 197 IPM |
| Machine Dimensions LxWxH | 100" x 112" x 108" |
| Machine weight | 13,200 lbs |
