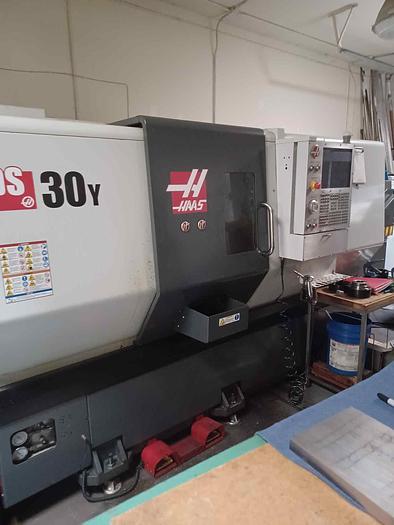

2014 Haas DS-30Y
No longer available
2014 Haas DS-30Y
$84,500 (USD)
Location:Illinois
Description
Y-Axis Capability
Full C Axis Spindle Rotation
Live Milling / Drilling Capability
Subspindle

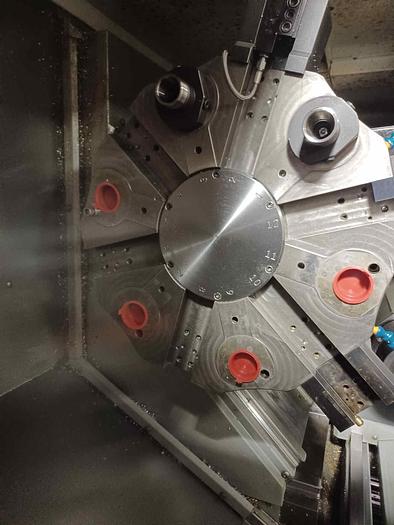

12 Position Hybrid Style Turret (Accepts both VDI and BOT type tools)
Hardinge Flex 65 Collet System

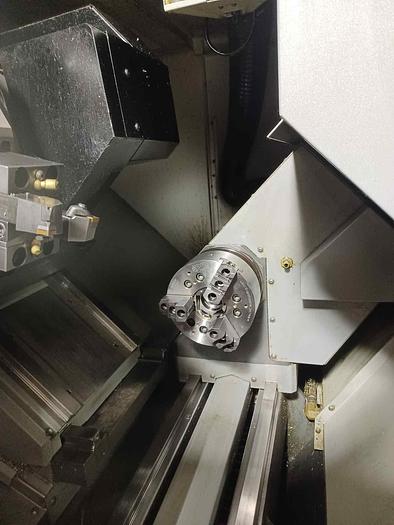

10" 3-Jaw Hydraulic Chuck for Main Spindle

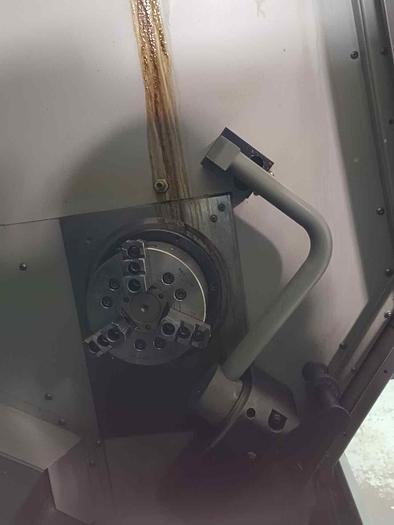

8.3" 3-Jaw Hydraulic Chuck for Subspindle
Tool Presetter
Parts Catcher

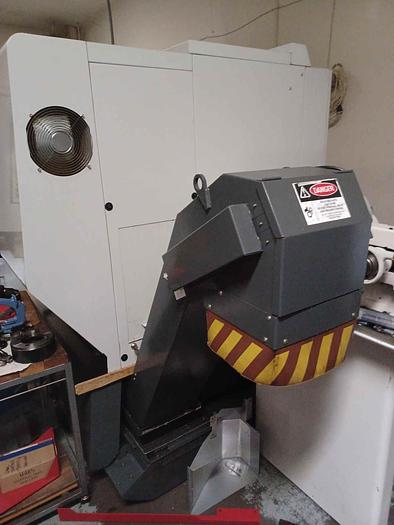

Belt Style Chip Conveyor
High Pressure Coolant System 300 PSI
Spindle Orientation
Rigid Tapping
USB Port Interface
RS 232 Port Interface
5-Axial and 3-Radial Live Tool Holders

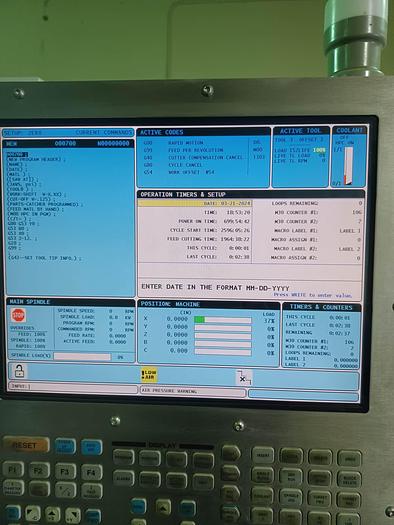

**Feed Cutting Hours 1,964**
Specifications
| Manufacturer | Haas |
| Model | DS-30Y |
| Year | 2014 |
| Condition | Used |
| Stock Number | 119500 |
| Chuck Sizes Main / Subspindle | 10" Hydraulic / 8.3" Hydraulic |
| Maximum Swing over Bed | 31.75" |
| Maximum Swing Over Cross Slide | 20.75 |
| Maximum Cutting Diameter | 18" |
| Maximum Cutting Length | 23" |
| X-Axis Travel | 12.5" |
| Y-Axis Travel | +/- 2" |
| Z-Axis Travel | 23" |
| C-Axis Rotation | .001 Degree |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3.5" / 3" |
| Spindle Speeds | 4,800 RPM |
| Spindle Motor | 30 HP |
| Subspindle Nose / Bore / Bar Capcity | A2-5" / 2.5" / 2" |
| Subspindle Speed | 4,800 RPM |
| Subspindle Motor | 20 HP |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 5 HP |
| Turret Type | 12 Position Hybrid Type (VDI/BOT) |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 1,200 IPM |
| Machine Dimensions LxWxH | 171"x90"x92" |
| Machine Weight | 16,000 lbs |
