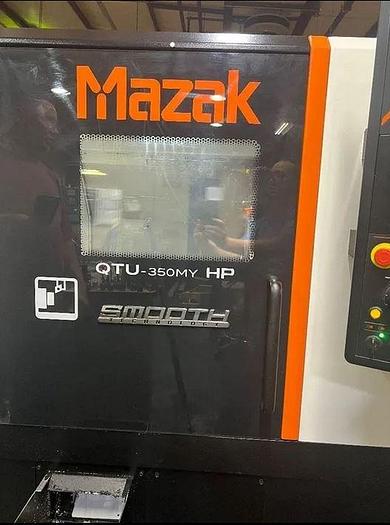

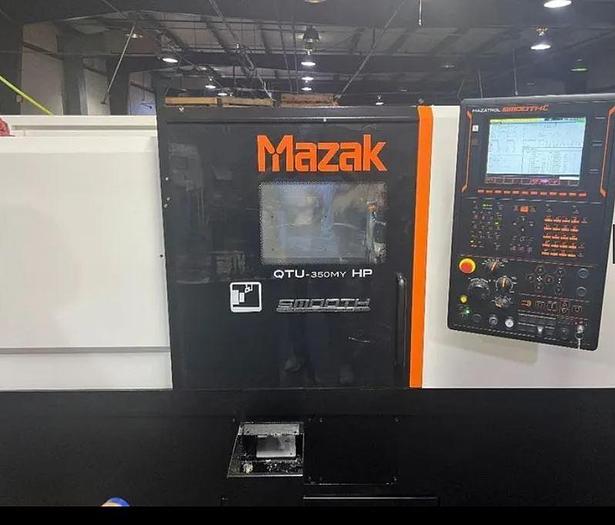

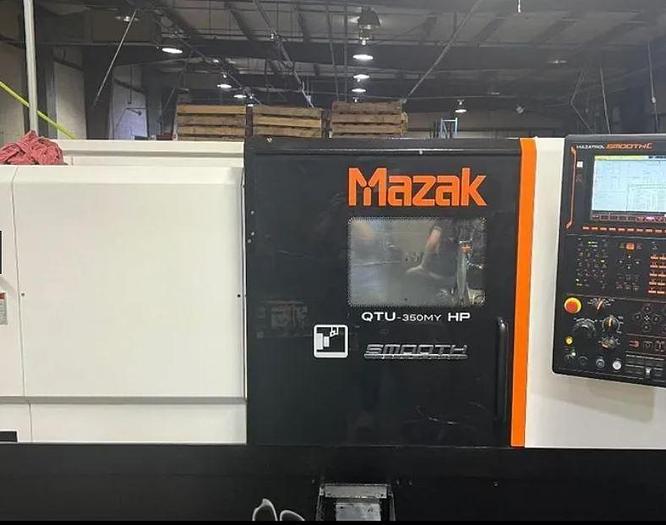

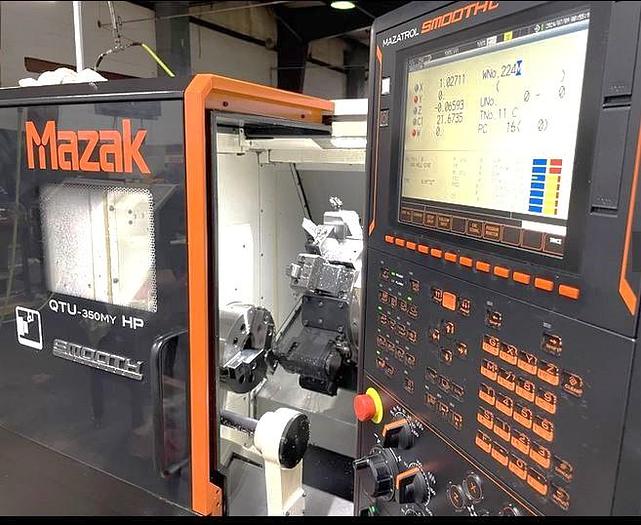

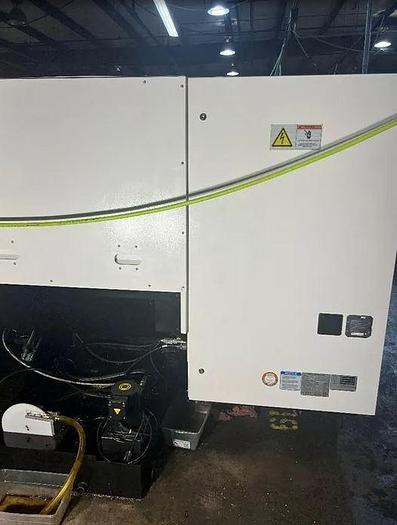

2019 Mazak QTU 350MY HP
2019 Mazak QTU 350MY HP
Contact us for price
Location:Illinois
Description
Full C Axis Spindle Rotation
Live Milling / Drilling Capability
Y Axis Capability
HP (high performance) Spindle Package

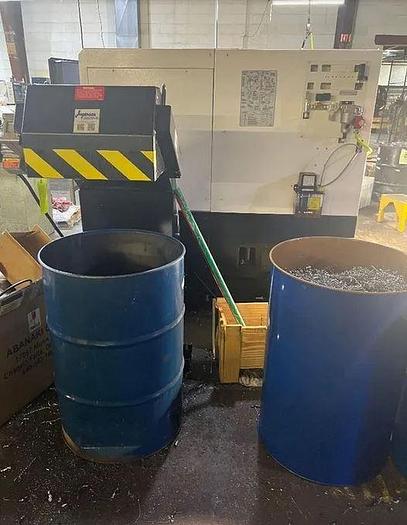

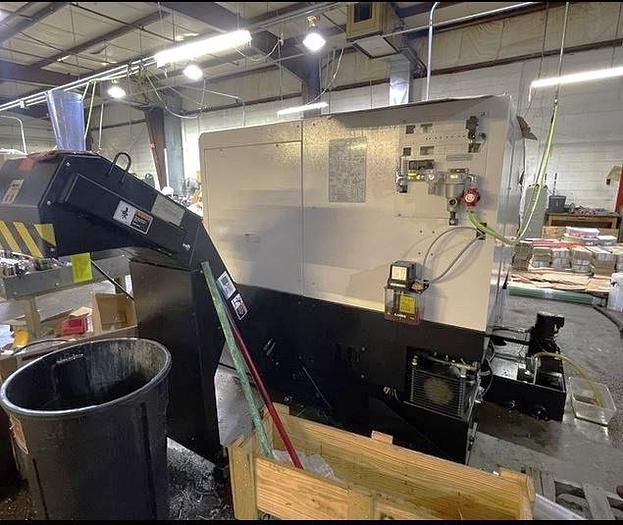

Chip Conveyor
Parts Catcher
Tool Presetter

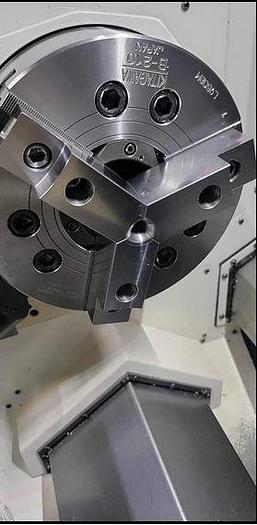

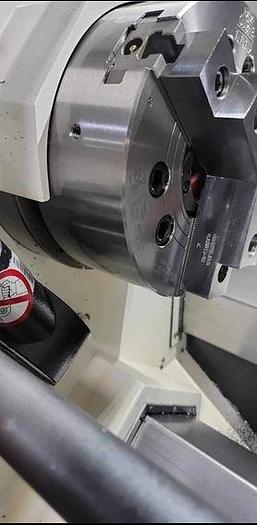

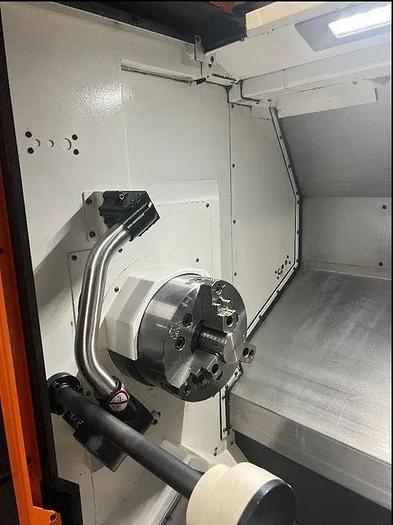

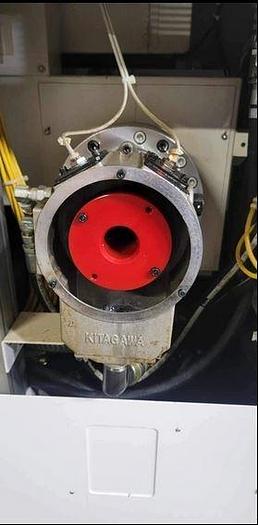

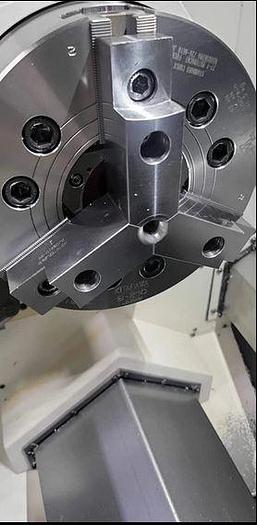

10" 3 Jaw Kitagawa B210 Hydraulic Chuck

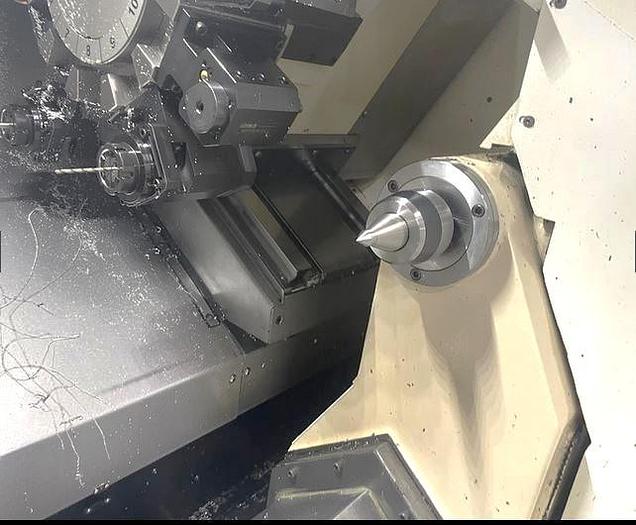

Programmable Hydraulic Tailstock
Cylindrical Interpolation
EIA/ISO Input Function
Mill Synchronous Tapping (rigid tapping)
User Macro Interrupt
Backround Tool Path Check
Direct Drawing Size Input
User Macro - 600 Variables
Work Coordinate Interrupt
Coolant System with Tank & Pump
USB Port Interface
Card Interface
RS 232 Port Interface
(4) Trusty Cook Spindle Liner
(3) Live Tool Holders
Extra 1.5" ID Holders
All Available Static Tool Blocks
All Available Manuals

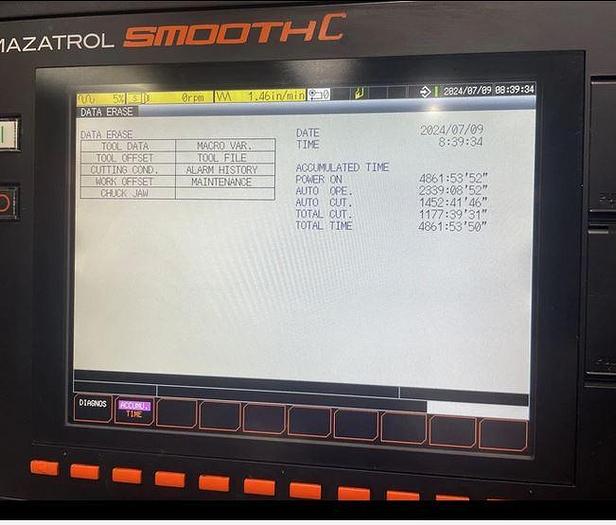

**Power On Hours - 4,861**
**Auto Operation Hours - 2,339**
**Auto Cutting Hours - 1,452**
**Total Cutting Hours - 1,177**
Specifications
| Manufacturer | Mazak |
| Model | QTU 350MY HP |
| Year | 2019 |
| Condition | Used |
| Stock Number | 119489 |

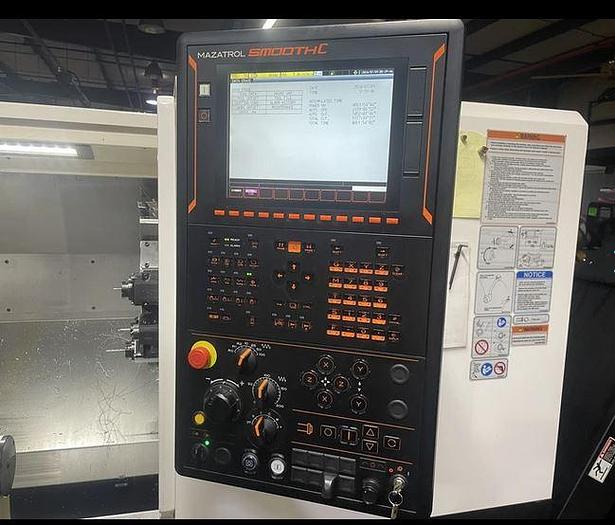

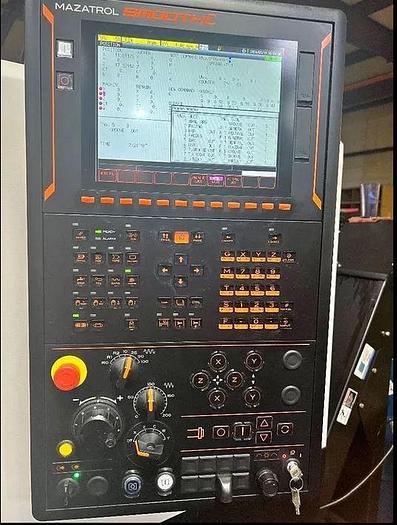

| Machine Control | Mazatrol SmoothC Control |
| Chuck size | 10" 3 Jaw Hydraulic Chuck |
| Maximum swing | 27.4" |
| Maximum cutting diameter | 16.25" |
| Maximum machining length | 23.8" |
| X-axis travel | 8.5" |
| Y-Axis Travel | +/- 2" |
| Z-axis travel | 23.75" |
| C Axis Spindle Rotation | .001 Degree Contouring |
| Spindle nose/spindle bore/bar capacity | A2-8" / 3.5" / 3.0" |
| Spindle speed | 3,500 RPM |
| Spindle Motor - Main | 30 HP |
| Rotary Tool Speed / Rotary Motor | 4,500 RPM / 10 HP |

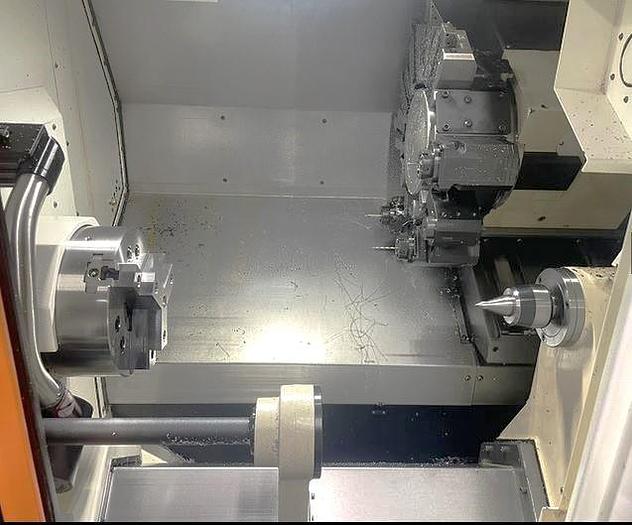

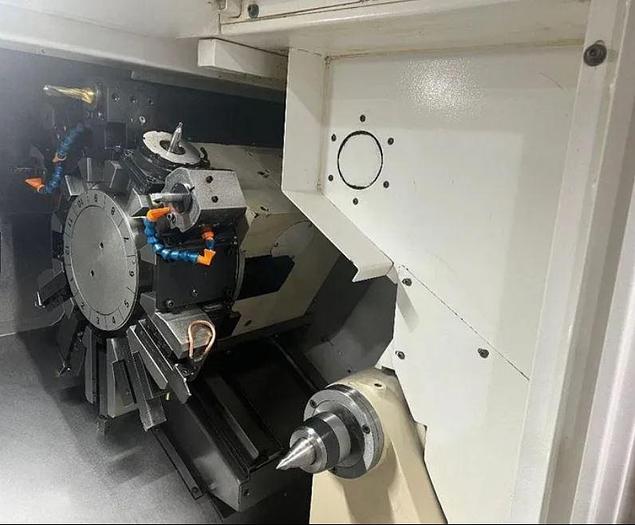

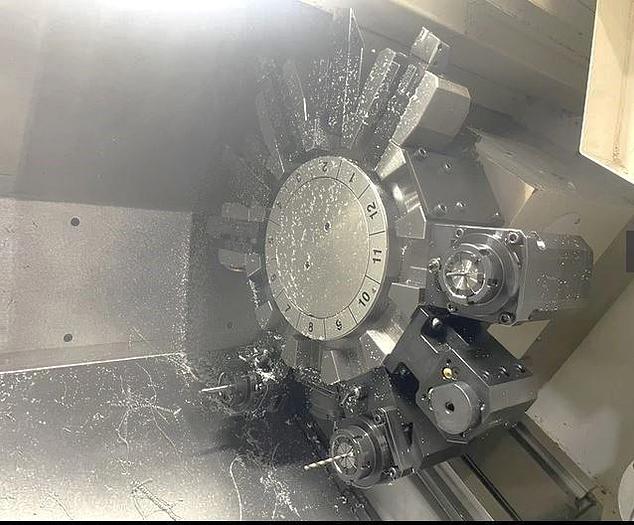

| Turret type | 12 Position Turret |
| Rapid traverse x / z | 1181 / 1299 IPM |
| Machine dimensions lxwxh | 119" x 81" x 79" |
| Machine weight | 15,873 lbs. |
