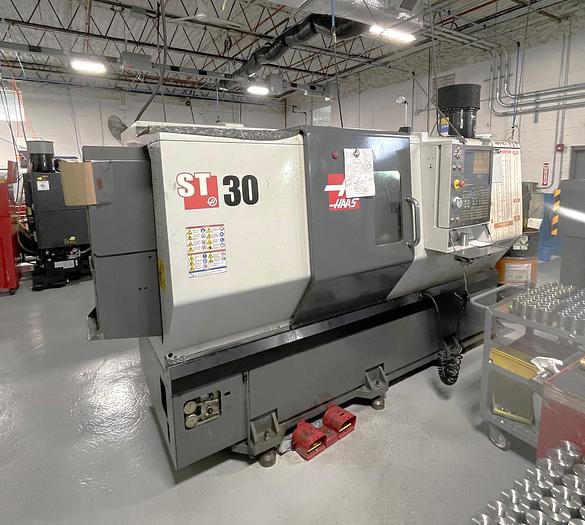

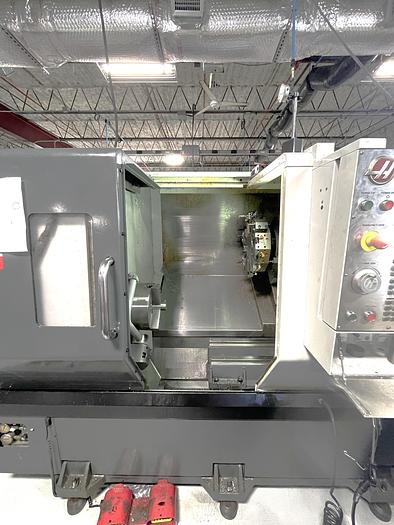

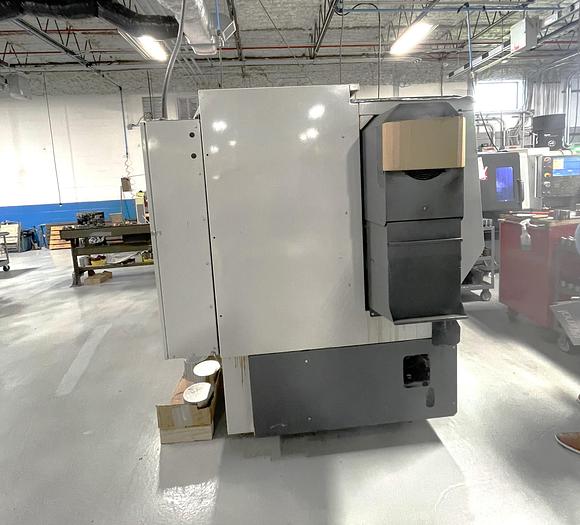

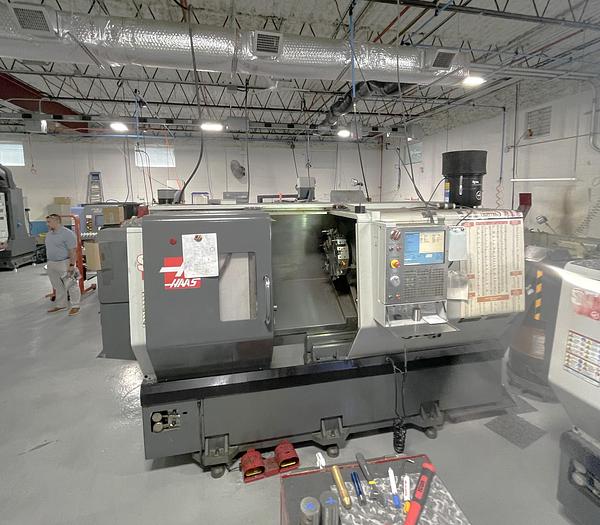

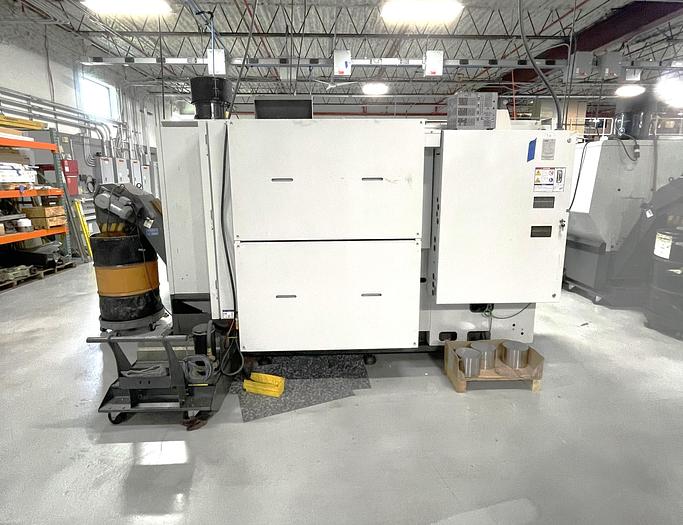

2012 Haas ST30 with Tailstock (needs spindle replaced)
No longer available
2012 Haas ST30 with Tailstock (needs spindle replaced)
$29,950 (USD)
Location:New Jersey
Description
**THIS MACHINE IS IN NEED OF A SPINDLE REPLACEMENT AND IS PRICED ACCORDINGLY BECAUSE OF THIS AND TO ALLOW FOR THE COST INVOLVED (APPROXIMATELY $9,000 W/ CORE TRADE IN)**
10" 3 Jaw Hydraulic Chuck

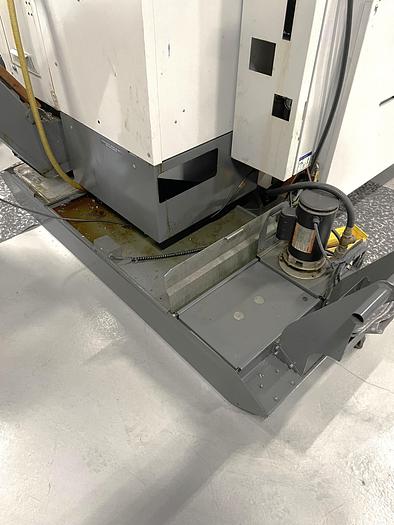

Chip Conveyor
Programmable Tailstock
Automatic Tool Presetter

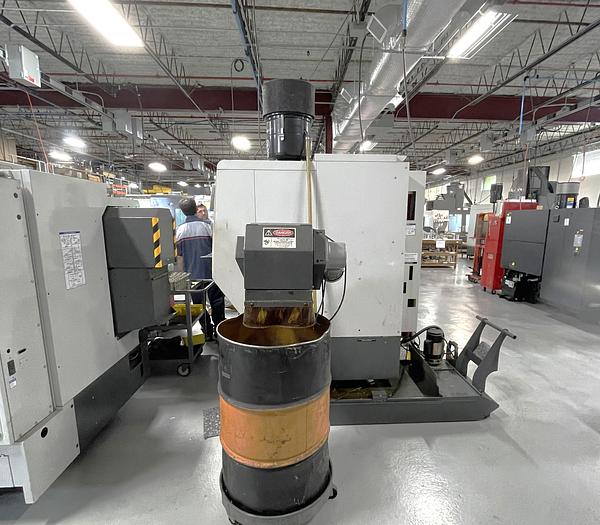

Royal Filtermist Mist Collector
Dual Foot Pedals for Chuck and Tailstock
RS 232 Port Interface
All Available Tool Blocks
Coolant System with Tank & Pump
Wired 195V - 260V Electrics

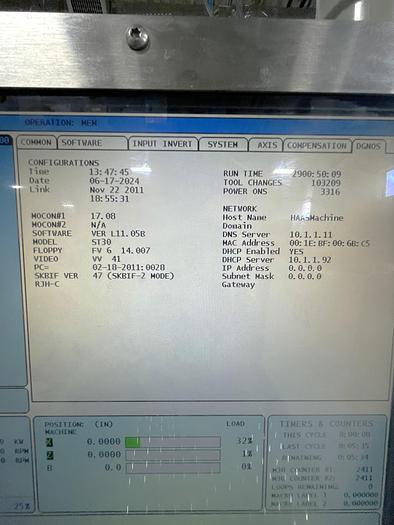

**Run Time Hours 2,900**
**Spindle Run Hours Estimated at 1,200**
**Other than the above referenced spindle issue, the machine is in very nice condition**
Specifications
Manufacturer | Haas |
Model | ST30 with Tailstock |
Year | 2012 |
Condition | Used |
Stock Number | 119481 |

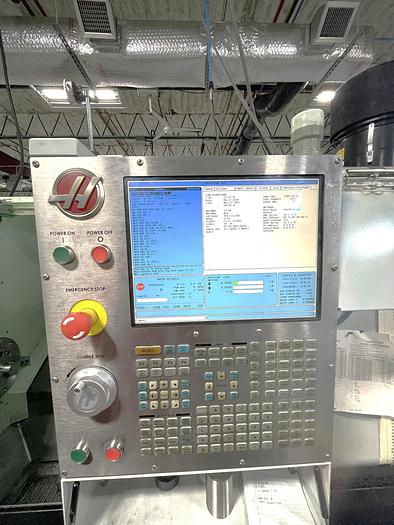

Machine Control | Haas CNC Control |
Chuck Size | 10" 3 Jaw Hydraulic Chuck |
Maximum Swing | 31.75" |
Maximum Turning Diameter | 18" |
Maximum Machining Length | 23" |
Maximum Bar Capacity | 3" |
X-Axis Travel | 12.5" |
Z-Axis Travel | 26" |
Spindle Nose / Bore / Bar Capacity | A2-6" / 3.5" / 3" |
Spindle Speeds | 30 - 3,000 RPM |
Spindle Motor | 30 HP |

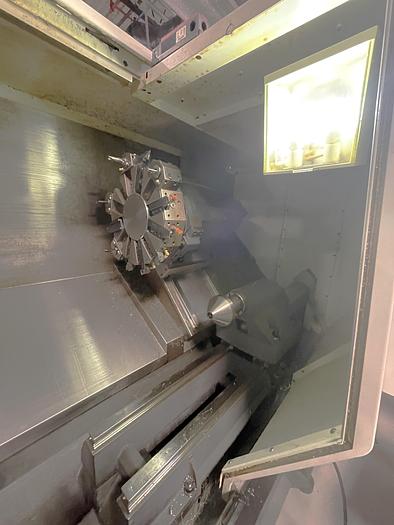

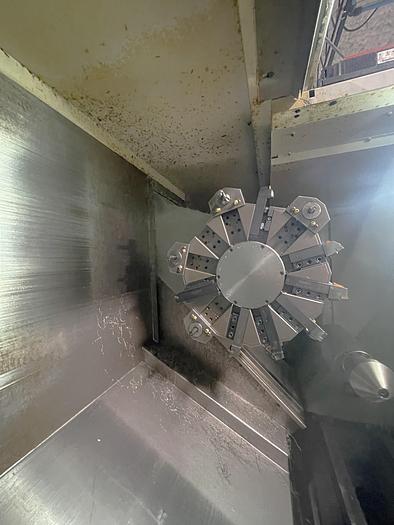

Number of Turret Positions | 12 Position Turret |
Rapid Traverse Rates X/Z | 945 ipm / 945 ipm |
Tailstock Body Travel / Taper | 20" / MT #4 |
Machine Dimensions | 171" x 90" x 83" |
Machine Weight | 12,540 lbs. |
