2015 Haas ST-55
No longer available
2015 Haas ST-55
Location:Illinois
Description

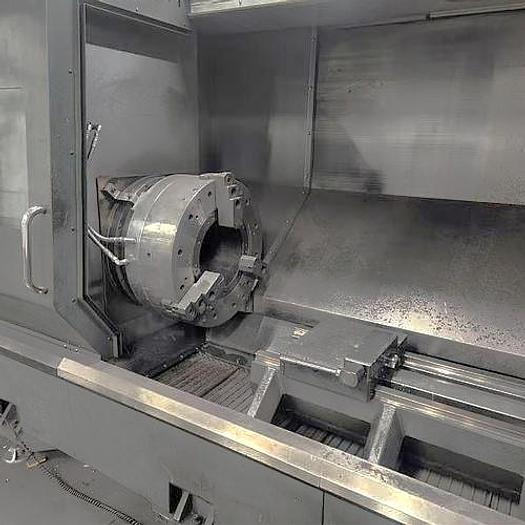

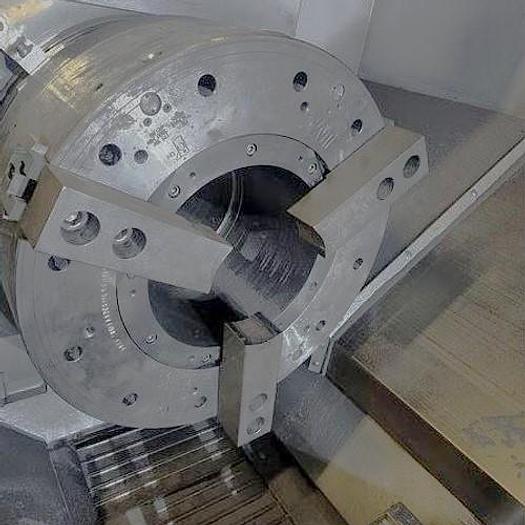

26" 3 Jaw Air Chuck
Programmable Tailstock
Chip Conveyor
Steady Rest Provision
LCD Remote Jog Handle
A1-20" Rear Nose Mount for Chuck on Back of Spindle
CNC Control Cabinet Cooler
Ethernet Interface
RS 232 Port Interface
Control Touch Screen
Early Power-Failure Detection Module
Coolant System with Tank & Pump
WiFi Connection
Remote Monitoring
Work Light
Rigid Tapping
1 GB Program Memory
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | ST-55 |
| Year | 2015 |
| Condition | Used |
| Stock Number | 119454 |
| Chuck Size | 26" 3-Jaw Air Chuck |
| Maximum Swing | 34.5" |
| Maximum Swing Over Cross Slide | 25.5" |
| Maximum Cutting Diameter | 25.5" |
| Maximum Cutting Length | 80" |
| X-axis travel | 17" |
| Z-Axis Travel | 80" |
| Spindle Nose / Bore / Bar Capacity | A1-20" / 12.5" / 12.5" |
| Spindle Speed | 1,000 RPM - 2 Speed Gearbox |
| Spindle Motor | 55 HP |

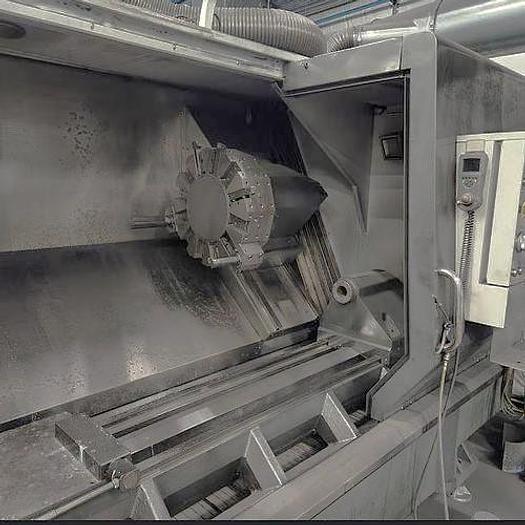

| Number of Turret Positions | 12 Station Turret |
| Cutting Feedrates | X-710 IPM / Z-320 IPM |
| Coolant Capacity | 95 Gallons |
| Tailstock Taper | #6 MT |
| Air Required | 4 scfm @ 100 psi |
| Input AC Voltage | 220 V 3-Phase |
| Full Load Amps | 105 |
| Machine Dimensions LxWxH | 249"x90"x100" |
| Machine Weight | 31,000 lbs |
