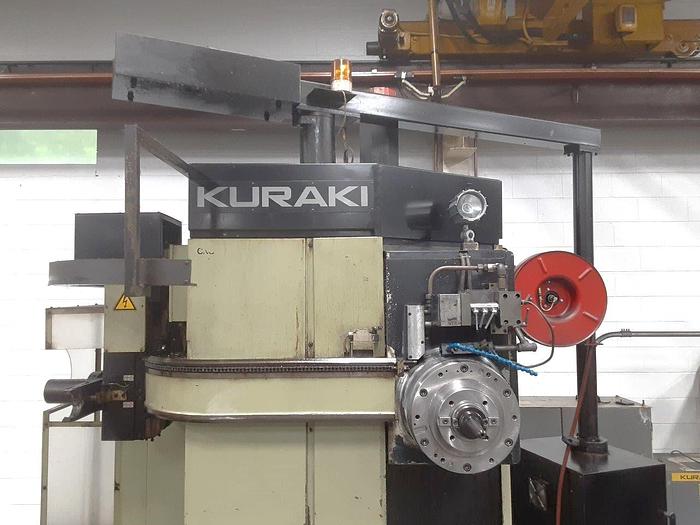

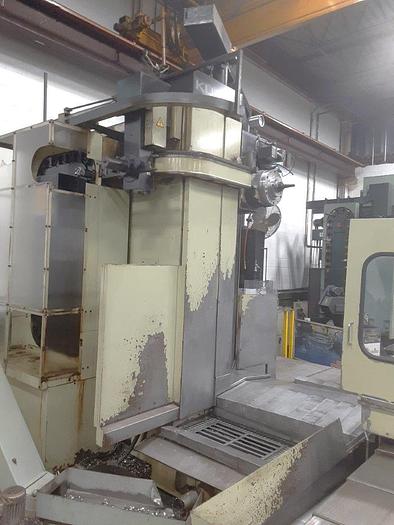

1990 Kuraki KBT-11WDX CNC Table Type Horizontal Boring Mill
1990 Kuraki KBT-11WDX CNC Table Type Horizontal Boring Mill
$87,500 (USD)
Location:New York, NY
or
Call (863) 439-6066
Description
Full 4th Axis B-Axis Rotary Table - .001 Degree

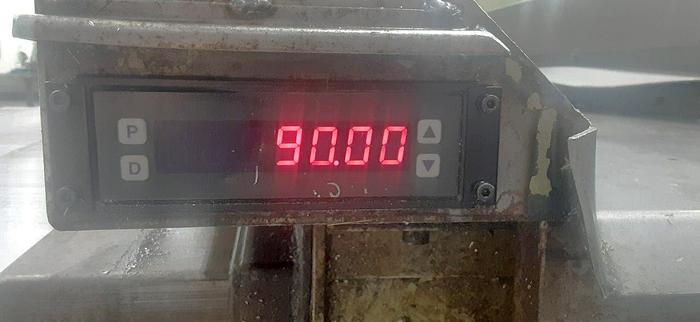

Shot Pin Each 90 Degrees with Digital Display

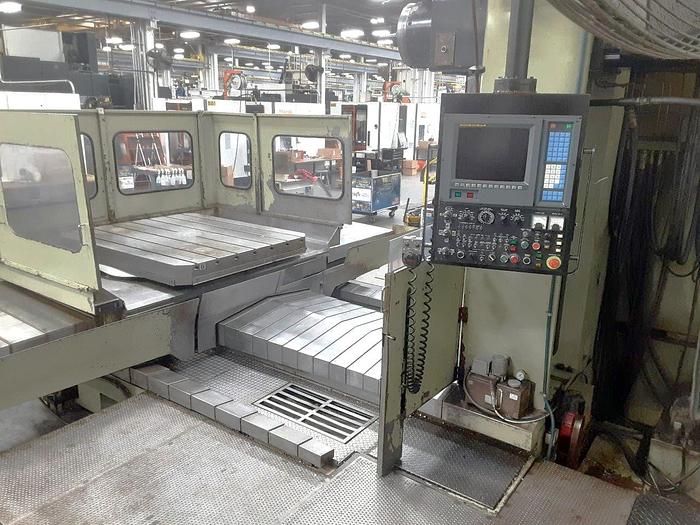

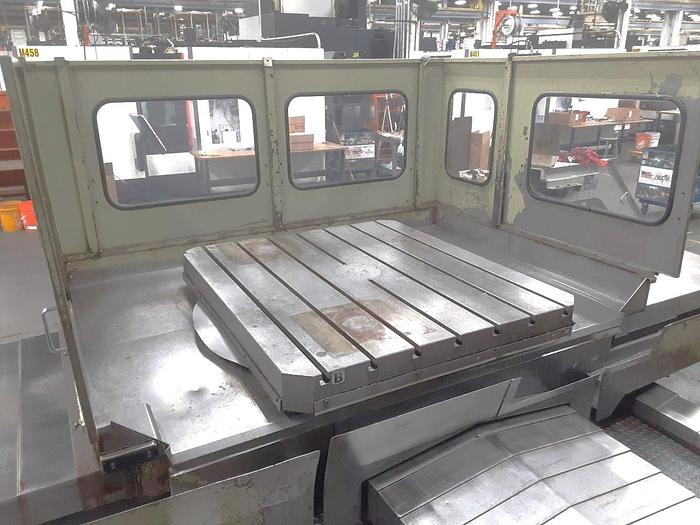

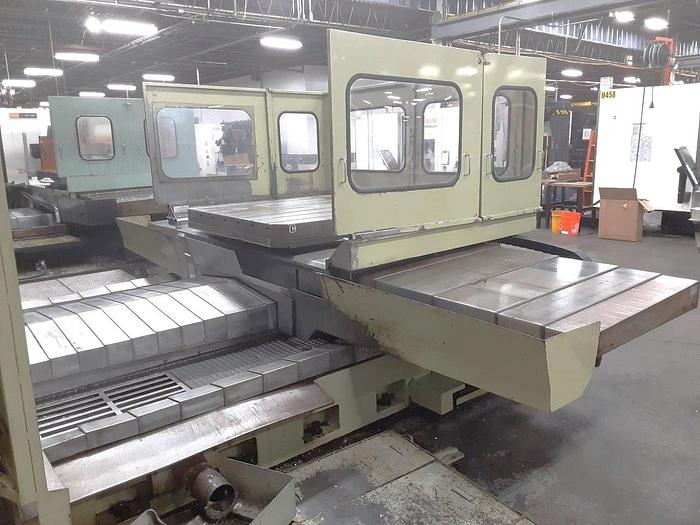

T-Slotted 55" x 63" Rotary Table
Rigid Tapping

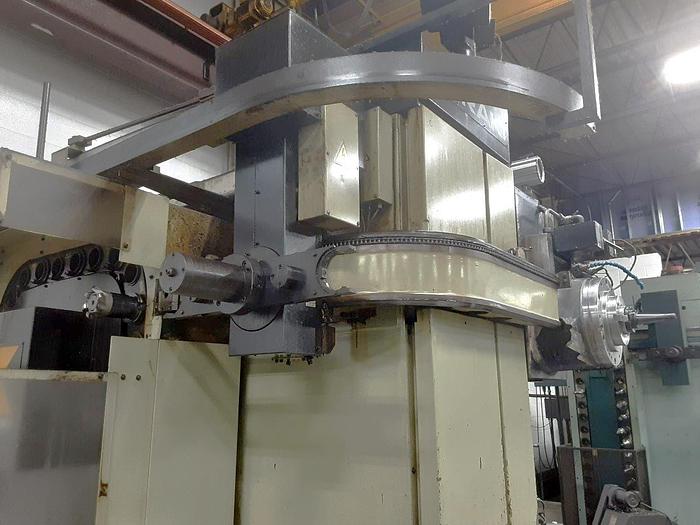

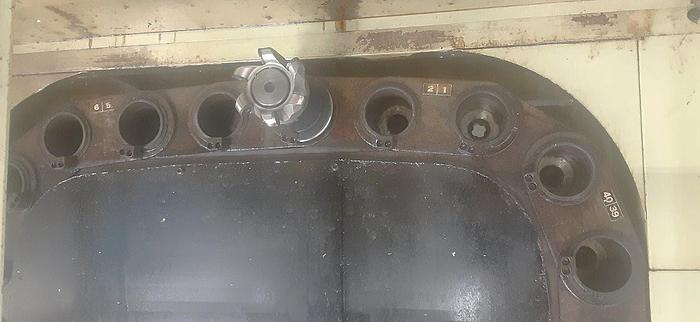

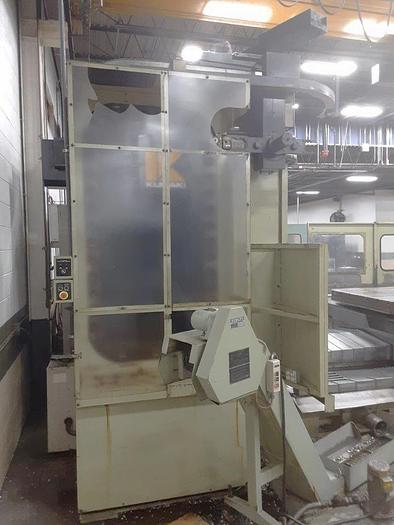

40 Station Tool Changer
Chip Conveyor
Work Light
Spindle RPM Meter
Hand Held Remote Jog Handle

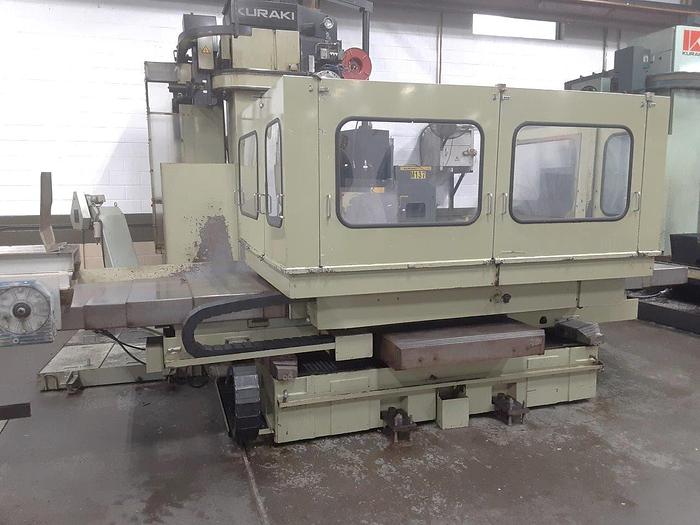

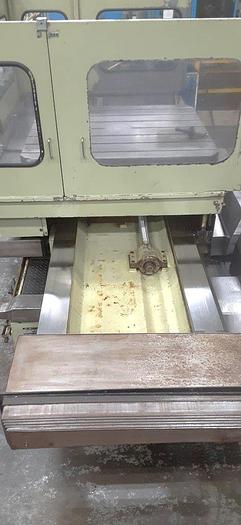

Full Table Splash Guarding
Spindle Chiller Unit
Variable 3 Speed

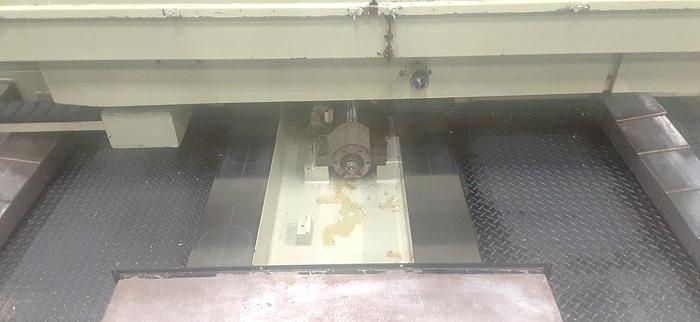

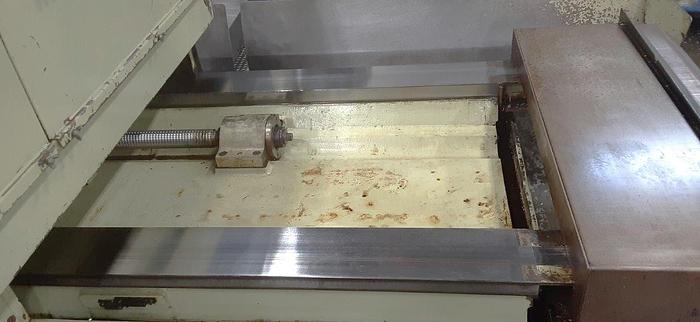

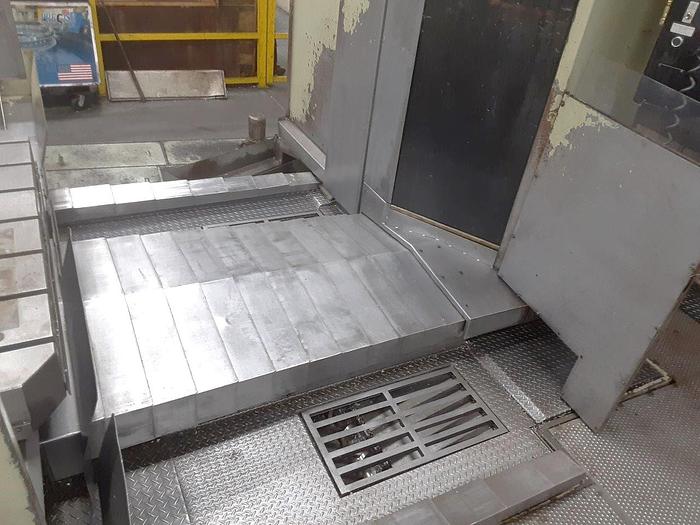

Way Covers
Coolant System with Tank & Pump
Machine Manufactured New in September of 1990

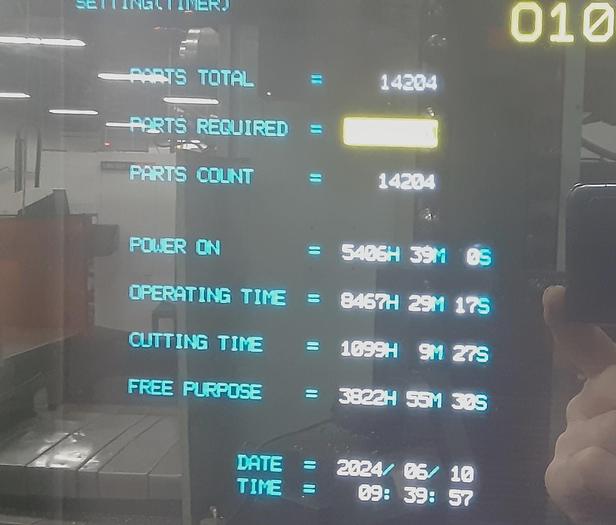

**Operating Hours 8,467**
Specifications
| Manufacturer | Kuraki |
| Model | KBT-11WDX CNC Table Type Horizontal Boring Mill |
| Year | 1990 |
| Condition | Used |
| Stock Number | 119442 |

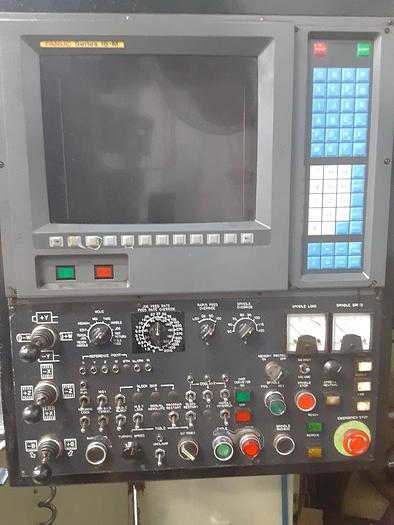

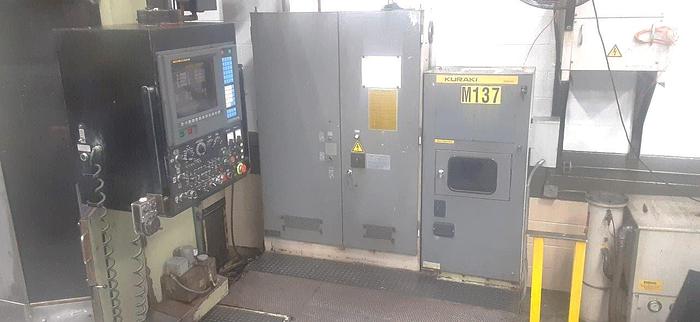

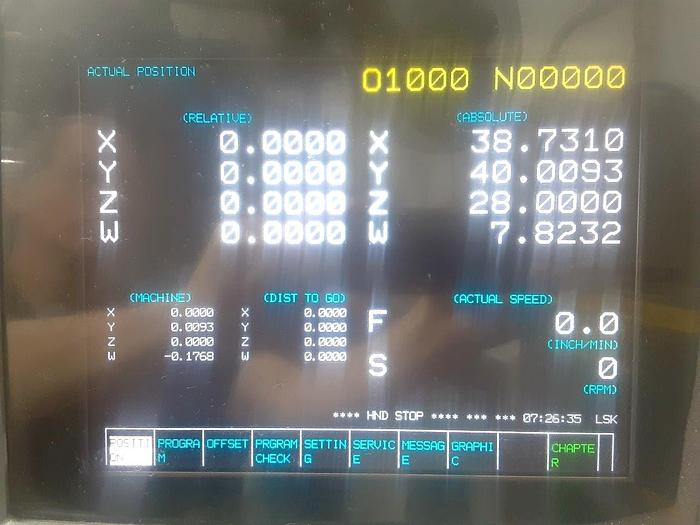

| Machine Control | Fanuc 15-MA Series Control |
| Table Size | 55" x 63" |
| Maximum Weight on Table | 14,000 lbs. |
| X-Axis Travel | 78.7" |
| Y-Axis Travel | 59.1" |
| Z-Axis Travel | 57" |
| W-Axis Travel | 25.6" |

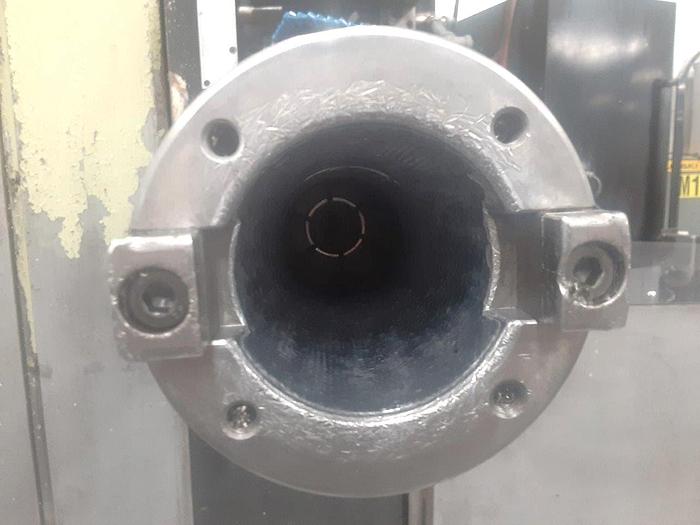

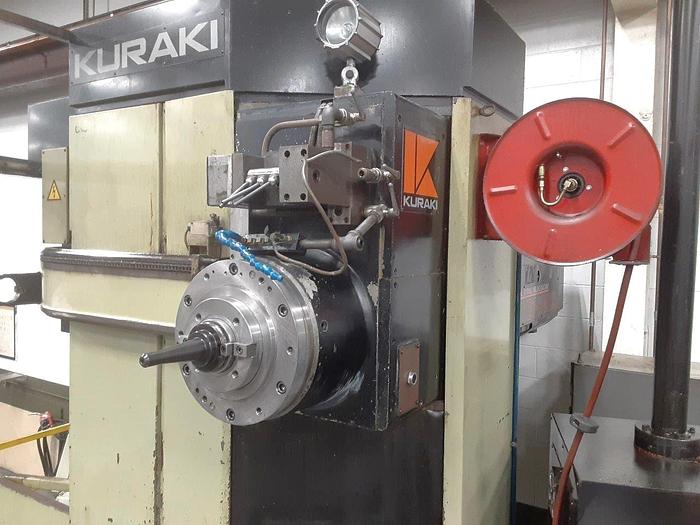

| Spindle Taper | CAT #50 |
| Spindle Speeds | 2 - 2,500 RPM |
| Spindle motor | 20 HP |
| Transmission | 3 Speeds |

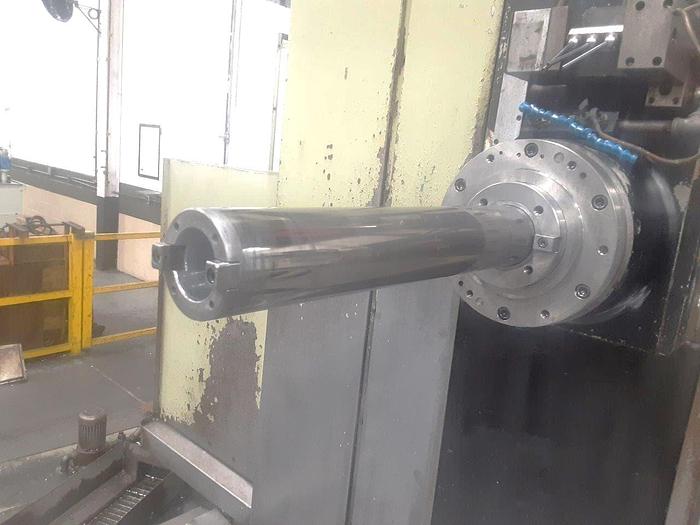

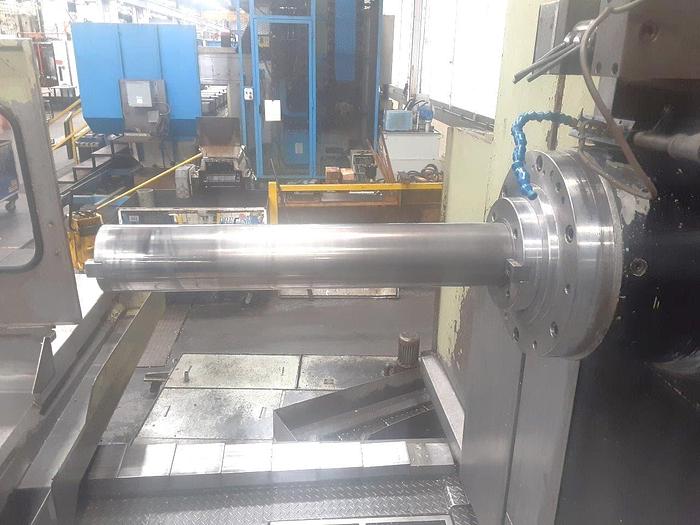

| Spindle Diameter | 4.33" |
| Number of Tool Positions | 40 Station Tool Changer |
| Maximum Tool Diameter / Next Position Empty | 4.92" / 9.05" |
| Rapid Traverse Rates | 394 IPM |
| Cutting Feedrates | 157 IPM |
| Machine Dimensions | 232" x 187" |
| Machine Weight | 45,300 lbs. |
